ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter
ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter
ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter
ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter
Specifications
Brand Name :
ZONCN
Model Number :
T9400-7R5G
Certification :
CE, KC
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T, Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Type :
AC inverter
Brand :
ZONCN
Series :
T9000
Input :
400v 3phase
Input frequency :
50Hz / 60Hz
Communication :
Profinet
24V terminal :
Yes
STO :
Yes
OEM :
Yes
Description

ZONCN T9000 Series Advanced Vector Control Inverter

ZONCN, established in 2006, which is a professional inverter and Servo manufacturer in China. Our annnual sales quantity is about 1 Million units.

Our Headquarters is in Shanghai, we both have factories in Shanghai and Wuhu, with total area around 100,000 ㎡. We have our own R&D center, our engineer person is more than 70, so we keep developing and upgrading our inverter series, now our main series is NZ100, NZ200(T), Z2000(T), Z8000, T9000, Z5000 series etc. And we can produce from 0.4kw to 2000kw. T9000 series is an advanced vector control inverter which for general use. Especially, it supports Profinet commnucation and have 24V terminal. It is a very economical series to be used in various applications.

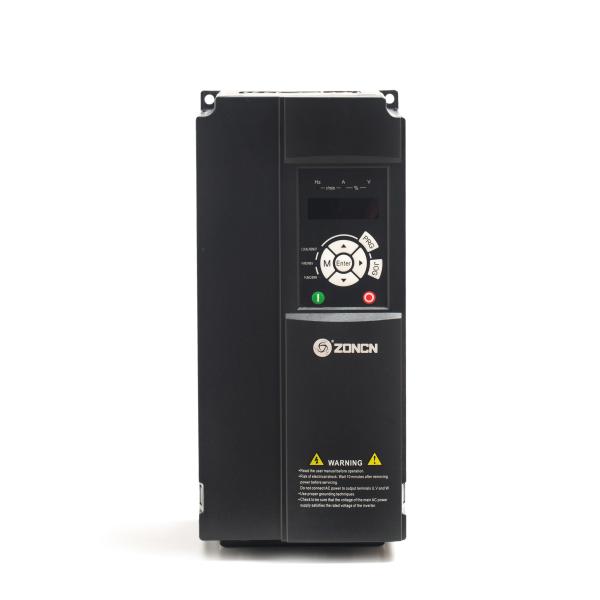

T9000 inverter picture

ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter

Inverter Specification

Item Description
Basic function Control Mode VF control
Sensorless flux vector control(SVC)
Close-loop vector control(FVC)(Above 3.7kW)
Maximum frequency 0~600Hz
Carrier frequency 0.5kHZ——8kHz
The carrier frequency is automatically adjusted based on the load features
Input frequency resolution Digital setting:0.01Hz
Analog setting: Maximum frequency x 0.025%
Start torque G Type:0.5Hz/150%(SVC)
P Type:0.5Hz/100%
Speed range 1:100 (SVC)
Speed stability accuracy ±0.5%(SVC)
Overload capacity G Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ;
Customized boost: 0.1%~30.0%
V/F Curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation 2 types: complete separation; half separation
Ramp Mode Straight-line ramp.
Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
DC braking DC braking frequency:0.00Hz~Maximum frequency
Braking time:0.0s~36.0s
Braking action current value:0.0%~100.0%
JOG control JOG frequency range:0.00Hz~50.00Hz
JOG acceleration/deceleration time: 0.0s~6500.0s.
Simple PLC,Multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage
Overvoltage/overcurrent stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive.
Torque limit and control It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
implemented in the FVC mode.
　 Support for multiple PG card Support for differential input PG card, resolver PG card ,rotating transformer PG card


Nameplate Description

ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter

Inverter Model

Model Input Voltage (V) Rated output power(kW) Rated input current(A) Rated output current(A) Motor Power (KW)
T9400-0R4G 3PH AC 380V±15% 0.4 3.4 1.2 0.4
T9400-0R75G 0.75 3.8 2.5 0.75
T9400-1R5G 1.5 5 3.7 1.5
T9400-2R2G 2.2 5.8 5 2.2
T9400-3R7G/5R5P 3.7/5.5 10/15 9/13 3.7/5.5
T9400-5R5G/7R5P 5.5/7.5 15/20 13/17 5.5/7.5
T9400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
T9400-11G/15P 11/15 26/35 25/32 11/15

Inverter Diamension

ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter

ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter



Company Introduction

ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter

ZONCN 380v 3phase VSD Variador De Frecencia 5hp 7hp 10hp 11hp 5.5kw 7.5kw 11kw VFD Inverter

Company Introduction

Q: Which power range do you have?

A: we can produce from 0.4kw-2000kw

Q: Can you do our own logo?

A: Yes, we can produce for your own brand if you can meet quantity requirements.

Q: What is the standard communication?

A: RS485/MODBUS

Q: Can i order some samples to test first?

A: Sure.
