Specifications
Brand Name :
ZONCN
Model Number :
NZ200T-30GY-4
Certification :
KC; CE
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T, Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Type :
variable frequency inverter
Produant name :
VFD inverter
Brand :
ZONCN
Series :
NZ200/NZ200T
Application :
Screw air compressor
Power :
30kw/37kw
Motor type :
AC motor and PM
Output frequency :
50Hz/60Hz
Warranty :
18 months
Description

ZONCN NZ200 30w 37kw VFD Variable Frequency Drive 40h 50hp For Srew Air Compressor

NZ200 Series Inverter Description

NZ200 series VFD inverter is one of ZONCN's economic vector control inverter, this series can be used in most of industrial applications and solutions. Because of its cost-effective, this NZ200 series inverter is one of ZONCN's hottest series, especially it is the Top1 brand used in air compressor industry. We can produce from 0.4kw to 630kw.

We have special version of software for air compressor application, and we have minimized the parameters to help customer to use it very easily and effectively.

NZ200 Inverter Specification

  • Inverter Model
 Input Voltage (V) Rated output power ( KW) Rated input current(A) Rated output current (A) Motor power ( KW)
NZ200-0R4G-2 1PH 220V±15% 0.4 5.4 2.5 0.4
NZ200-0R75G-2 0.75 7.2 5 0.75
NZ200-1R5G-2 1.5 10 7 1.5
NZ200-2R2G-2 2.2 16 11 2.2
NZ200-3R7G-2 3.7 17 16.5 3.7
NZ200-0R4G-4 3PH 380V±15% 0.4 3.4 1.2 0.4
NZ200-0R75G-4 0.75 3.8 2.5 0.75
NZ200-1R5G-4 1.5 5 3.7 1.5
NZ200-2R2G-4 2.2 5.8 5 2.2
NZ200-3R7G/5R5P-4 3.7 10.7 9 3.7
NZ200-5R5G/75R5P-4 5.5 14.6 13 5.5
NZ200-7R5G/11P-4 7.5 20 17 7.5
NZ200-11G/15P-4 11 26 25 11
NZ200-15G/18.5P-4 15 35 32 15
NZ200-18.5G/22P-4 18.5 38 37 18.5
NZ200-22G/30P-4 22 46 45 22
NZ200-30G/37P-4 30 62 60 30
NZ200-37G/45P-4 37 76 75 37
NZ200-45G/55P-4 45 90 90 45
NZ200-55G-4 55 105 110 55
NZ200-75G/90P-4 75 140 150 75
NZ200-90G/110P-4 90 160 176 90
NZ200-110G/132P-4 110 210 210 110
NZ200-132G/160P-4 132 240 253 132
... ... ... ... ...
NZ200-450G/500P-4 450 790 790 450

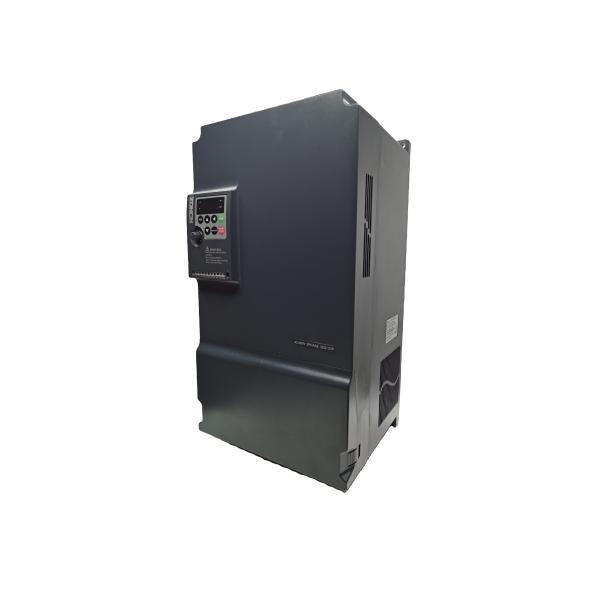

Product picture

ZONCN NZ200 30w 37kw VFD Variable Frequency Drive 40h 50hp For Srew Air Compressor

Company Introduction

ZONCN NZ200 30w 37kw VFD Variable Frequency Drive 40h 50hp For Srew Air Compressor

Wuhu Zoncn Automation Equipment Co., Ltd is one of a leading manufacturer focus on producing inverter and servo products in China with 19 years of experience. Our headquarters is in Shanghai, total factory area 100,000 ㎡+ both in Shanghai and Wuhu, annual production capacity is about 1 million pcs. ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, H5000 (IP65/54), etc. Our factory has passed ISO9001 quality control system and all the products have CE certification.

ZONCN has many agent at abroad, for example, Russia, Turkey, Korea, Colombia, etc. Now our products are exported to more than 50 countries in Asia, Europe, Africa and America. ZONCN will always warmly welcome you to visit our factory and negotiate together for mutual cooperation.
