Specifications
Brand Name :
ZONCN
Model Number :
T200
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000 per month
Delivery Time :
within 15 days normally
Packaging Details :
Carton Packaging
Type :
AC inverter
Product name :
VFD inverter
Brand :
ZONCN
Series :
T200
IGBT :
Yes
EMC filter :
Have
24V DC :
Yes
STO :
Have
Input :
220v/380v
Communication :
RS485/EtherCAT/Profibus/Profinet/Canopen
Description

ZONCN Low Voltage Inverter 220v 380v High Performance Variable Frequency Drive VFD

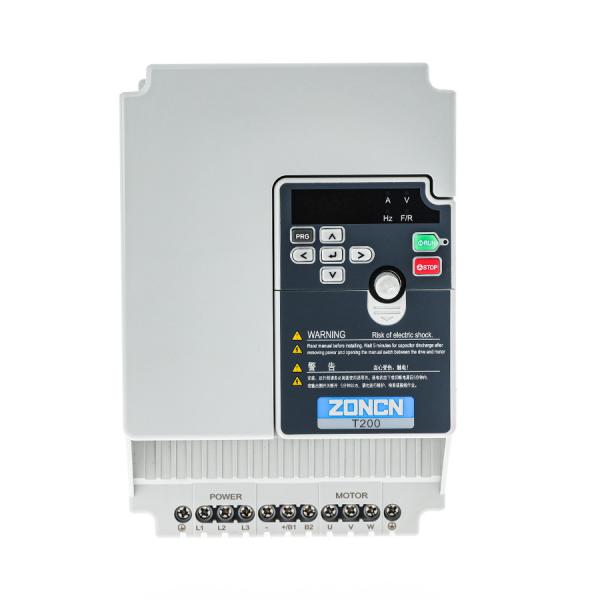

ZONCN T200 Inverter Introduction

ZONCN T200 Multifunctional High - Performance Vector Inverter:

1. Superior Control Modes

The ZONCN T200 is a technological marvel, offering a diverse range of control modes to meet the most demanding industrial applications.

  • VF (Voltage - Frequency) Control: This basic yet essential mode provides a straightforward way to control the motor's speed by adjusting the voltage and frequency proportionally. It is ideal for applications where precise torque control is not the primary concern, such as simple fans and pumps.
  • Open - loop Vector Control: In this mode, the T200 can accurately control the motor's speed and torque without the need for a feedback device. It uses advanced algorithms to estimate the motor's parameters, enabling high - performance operation even in variable - load conditions. This makes it suitable for applications like conveyor belts and certain types of compressors.
  • Closed - loop Vector Control: When maximum precision is required, the closed - loop vector control mode takes the lead. By incorporating a feedback device (such as an encoder), the inverter can achieve extremely accurate control of the motor's speed, torque, and position. This is perfect for applications in the textile industry, machine tools, and robotic systems.

2. Wide Frequency and Power Range

  • Frequency Range: With a frequency range spanning from 0 - 600HZ, the ZONCN T200 offers unparalleled flexibility. This wide range allows for precise speed control of motors, whether they need to operate at slow, constant speeds for delicate processes or at high speeds for high - throughput applications.
  • Power Range: Covering an extensive power range from 0.4 - 55kw, the T200 can accommodate a vast array of motors. From small - scale machinery in workshops to medium - sized industrial equipment in factories, this inverter provides the necessary power to drive various operations efficiently.

3. High - Quality Components

  • IGBT (Insulated - Gate Bipolar Transistor): The inclusion of IGBT technology in the T200 ensures efficient power conversion. IGBTs offer high - speed switching capabilities, low power losses, and excellent thermal stability. This results in a more energy - efficient operation and longer - lasting performance of the inverter.
  • EMC Filter: The built - in EMC filter is a crucial component that enhances the inverter's electromagnetic compatibility. It effectively suppresses electromagnetic interference, ensuring that the T200 can operate in close proximity to other sensitive electronic devices without causing disruptions. This also makes the inverter compliant with international EMC standards, enabling its use in a wide range of industries worldwide.

4. Flexible Input and Output Options

  • Input Compatibility: The T200 supports both NPN and PNP input types, providing flexibility in sensor connection. Whether your industrial sensors are of the NPN or PNP type, the inverter can easily interface with them, simplifying the integration process in your control system.
  • 24V DC Support: With support for 24V DC, the T200 can power a variety of low - voltage devices. This is useful for applications where auxiliary devices need to be powered directly from the inverter, such as sensors, relays, or small - scale control modules.
  • STO (Safe Torque Off): The STO feature is a safety - critical function. It allows for the rapid and safe disconnection of the motor's torque in case of an emergency or when maintenance is required. This helps prevent accidental startup of the motor, protecting personnel and equipment from potential harm.

5. Multiple Communication Protocols

The ZONCN T200 is a highly connected device, supporting multiple communication protocols:

  • MODBUS
  • CANopen
  • PROFIBUS
  • PROFINET
  • ETHERCAT

In conclusion, the ZONCN T200 Multifunctional High - Performance Vector Inverter is a comprehensive solution for industrial drive applications. Its wide range of control modes, extensive frequency and power coverage, high - quality components, flexible input/output options, and multiple communication protocols make it a top - choice for modern industrial automation.

Technology Features
ITEM T200
Basic function Maximum frequency 0～600.00Hz
Carrier frequency 0.5kHz～16kHz
The carrier frequency can be automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency×0.025%
Control mode Voltage/Frequency control (V/F)
Sensorless flux vector control (No PG)
Closed loop vector control (Have PG)
Startup torque G Type:0.5Hz/150%(No PG)；
P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(Have PG)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost
Customized boost 0.1%–30.0%
V/F curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control Jog frequency range:0.00Hz~50.00Hz. JOG acceleration/deceleration time0.0s~6500.0s.
Onboard Multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input terminal states
Onboard PID It realizes process-controlled closed loop control system easily.
Auto voltage It can keep constant output voltage automatically when the mains voltage changes.
regulation (AVR)
Over-voltage/ The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Over-current stall
control
Rapid current limit It helps to avoid frequent over-current faults of the inverter.
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Individualized function High performance Control of asynchronous motor is implemented through the high-performance current vector control technology.
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control Timing range 0.0Min～6500.0Min
Communication methods RS-485
Operation Running command channel Given by the panel, control terminals,
Serial communication port, can be switched by many ways
Frequency source 10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
Auxiliary frequency source There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
Input terminals 5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;
1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
Output terminal 1 digital output terminal
1 relay output terminal
1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output

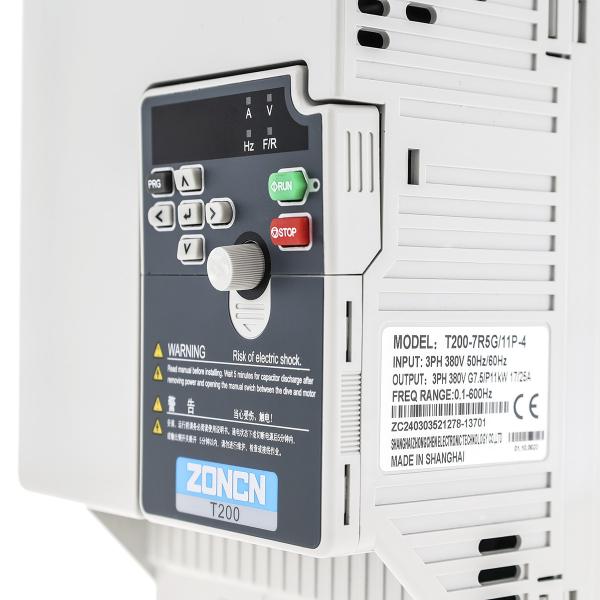

Display and operation panel LED display It displays the parameters.
Key locking and It can lock the keys partially or completely and define the
function selection function range of some keys so as to prevent mis-function.
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Environment Installation location Indoor, avoid direct sunlight, dust, corrosive gas, combustible gas, oil fog, steam, drip or salt.
Altitude Lower than 1000 m(Lower the grades when using higher then 1000m)
Ambient temperature -10°C ～40°C (Lower the grades if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9m/s2(0.6g)
Storage temperature －20℃~＋60℃
