Specifications
Brand Name :
ZONCN
Model Number :
T200
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000 per month
Delivery Time :
within 15 days normally
Packaging Details :
Carton Packaging
Type :
AC inverter
Product name :
VFD inverter
Brand :
ZONCN
Series :
T200
Power range :
0.4kw-55kw
Input Voltage :
220v/380v
Communication :
RS485/EtherCAT/Profibus/Profinet/Canopen
IGBT :
Yes
NPN/PNP :
Support
Description

Low Voltage Inverter 220v 380v Variable Frequency Drive VFD VSD 0.4kw To 55kw

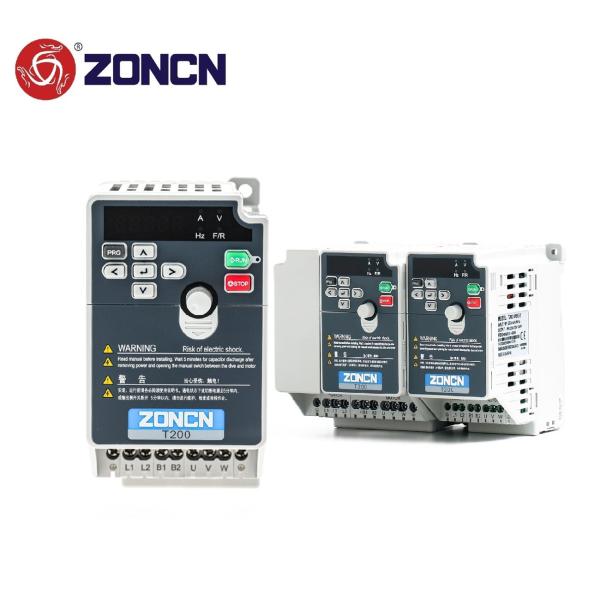

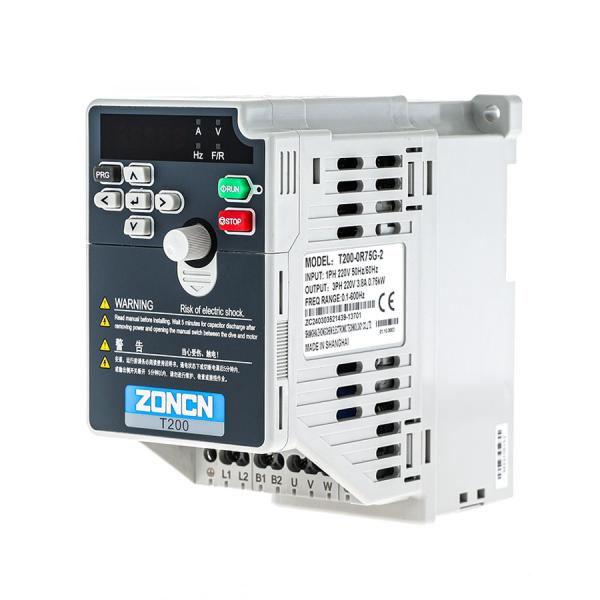

ZONCN T200 Inverter Introduction

ZONCN T200: A New Era of Multifunctional High - Performance Vector Inverters

The ZONCN T200 represents a cutting - edge innovation in the realm of industrial power control. Engineered with the latest technology, it's a versatile and high - performing vector inverter designed to meet the diverse needs of modern industries.

1. Advanced Control Modes

  • VF Control: The T200 supports Voltage - Frequency (VF) control, a fundamental and widely - used method. It ensures a stable relationship between the voltage and frequency supplied to the motor, making it suitable for applications where a basic speed - control solution suffices, like in simple ventilation fans.
  • Open - loop Vector Control: This mode enables precise control of motor speed and torque without the need for an external feedback device. Through sophisticated algorithms, the T200 can estimate motor parameters, providing reliable performance even under varying loads. It's perfect for conveyor systems where consistent operation is key.
  • Closed - loop Vector Control: For applications demanding the utmost precision, the closed - loop vector control mode is at your service. By integrating a feedback mechanism, such as an encoder, the inverter can achieve pinpoint accuracy in controlling motor speed, torque, and position. This makes it an ideal choice for high - precision machinery in the manufacturing industry.

2. Impressive Frequency and Power Range

  • Frequency Range: With an extensive frequency range from 0 - 600HZ, the T200 offers unrivaled flexibility. Whether it's a slow - running process that requires meticulous speed adjustment or a high - speed operation demanding rapid acceleration, the T200 can handle it all.
  • Power Range: Spanning from 0.4 - 55kw, this inverter can power a broad spectrum of motors. From small - scale equipment in workshops to larger - scale machinery in industrial plants, the T200 has the power to drive various operations efficiently.

3. High - Quality Built - in Components

  • IGBT: The inclusion of Insulated - Gate Bipolar Transistors (IGBTs) in the T200 ensures efficient power conversion. IGBTs are known for their high - speed switching capabilities, low power losses, and excellent thermal stability. This results in a more energy - efficient operation and a longer lifespan for the inverter.
  • EMC Filter: The built - in EMC filter is a crucial component that enhances the inverter's electromagnetic compatibility. It effectively reduces electromagnetic interference, allowing the T200 to operate in close proximity to other sensitive electronic devices without causing disruptions. This compliance with international EMC standards makes it suitable for use across a wide range of industries.

4. Diverse Input and Output Compatibility

  • NPN and PNP Support: The T200 is designed to support both NPN and PNP input types. This flexibility simplifies the connection with various sensors, making it easier to integrate into different industrial control systems.
  • 24V DC Support: With the ability to support 24V DC, the T200 can directly power a variety of low - voltage devices. This is beneficial for applications where auxiliary devices like sensors, relays, or small - scale control modules need to be powered from the inverter.
  • STO Feature: The Safe Torque Off (STO) function is a vital safety feature. It enables the quick and safe disconnection of the motor's torque in case of an emergency or during maintenance, safeguarding personnel and equipment from potential hazards.
  • PG Card Support: The support for a PG (Pulse Generator) card further expands the T200's control capabilities. It allows for more accurate speed and position control, especially in applications where high - precision motion control is required.

5. Extensive Communication Capabilities

The T200 is a highly connected device, supporting multiple communication protocols:

  • MODBUS
  • CANopen
  • PROFIBUS
  • PROFINET
  • ETHERCAT

6. External Keyboard Support

The T200 supports an external pull - out keyboard, which provides operators with easy access to control and monitoring functions. This feature allows for convenient parameter adjustment and system status checking, even in hard - to - reach or complex industrial setups.

7. Wide - ranging Industrial Applications

Thanks to its comprehensive features, the ZONCN T200 finds extensive applications across various industrial sectors. Whether it's in manufacturing plants, chemical processing industries, food and beverage production, or the automotive industry, the T200 can be relied upon to deliver high - performance motor control solutions.

In summary, the ZONCN T200 is a game - changer in the world of industrial inverters. Its advanced control modes, wide - ranging capabilities, and diverse application potential make it an indispensable asset for modern industrial operations.
Technology Features
ITEM T200
Basic function Maximum frequency 0～600.00Hz
Carrier frequency 0.5kHz～16kHz
The carrier frequency can be automatically adjusted based on the load features.
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency×0.025%
Control mode Voltage/Frequency control (V/F)
Sensorless flux vector control (No PG)
Closed loop vector control (Have PG)
Startup torque G Type:0.5Hz/150%(No PG)；
P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(Have PG)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost
Customized boost 0.1%–30.0%
V/F curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control Jog frequency range:0.00Hz~50.00Hz. JOG acceleration/deceleration time0.0s~6500.0s.
Onboard Multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input terminal states
Onboard PID It realizes process-controlled closed loop control system easily.
Auto voltage It can keep constant output voltage automatically when the mains voltage changes.
regulation (AVR)
Over-voltage/ The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Over-current stall
control
Rapid current limit It helps to avoid frequent over-current faults of the inverter.
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Individualized function High performance Control of asynchronous motor is implemented through the high-performance current vector control technology.
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Timing control Timing range 0.0Min～6500.0Min
Communication methods RS-485
Operation Running command channel Given by the panel, control terminals,
Serial communication port, can be switched by many ways
Frequency source 10 kinds of frequency source, given by digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
Auxiliary frequency source There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis

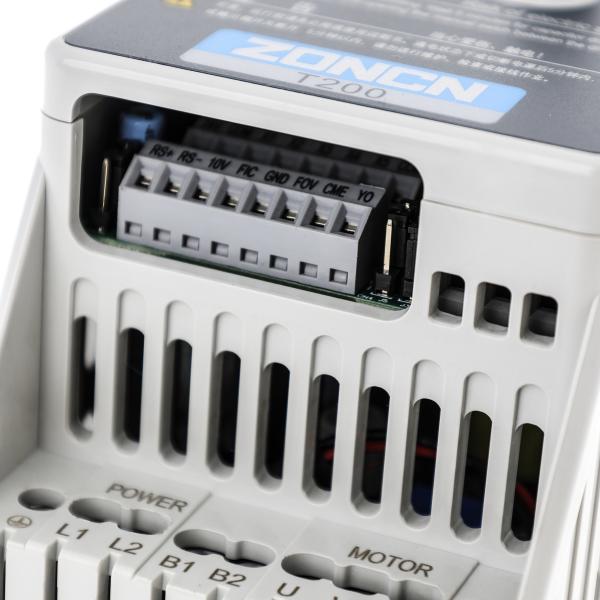

Input terminals 5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;
1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
Output terminal 1 digital output terminal
1 relay output terminal
1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output
Display and operation panel LED display It displays the parameters.
Key locking and It can lock the keys partially or completely and define the
function selection function range of some keys so as to prevent mis-function.
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Environment Installation location Indoor, avoid direct sunlight, dust, corrosive gas, combustible gas, oil fog, steam, drip or salt.
Altitude Lower than 1000 m(Lower the grades when using higher then 1000m)
Ambient temperature -10°C ～40°C (Lower the grades if the ambient temperature is between 40°C and 50°C)
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9m/s2(0.6g)
Storage temperature －20℃~＋60℃
