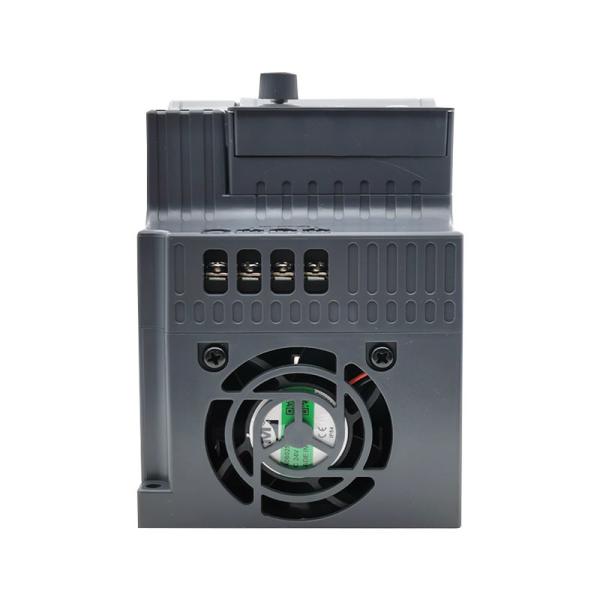

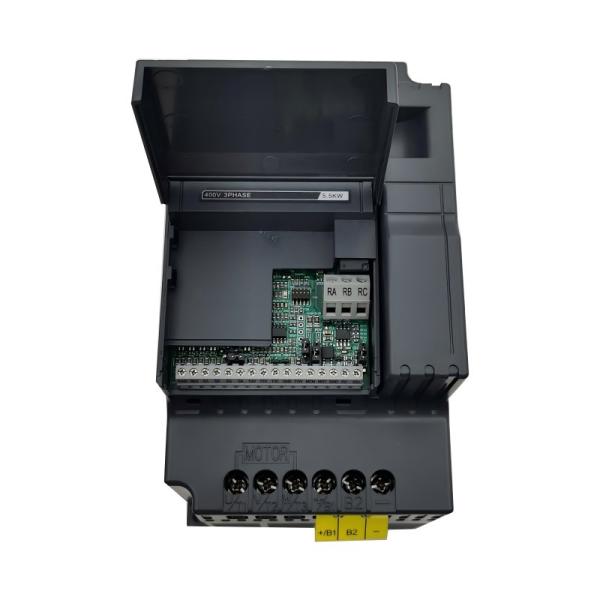

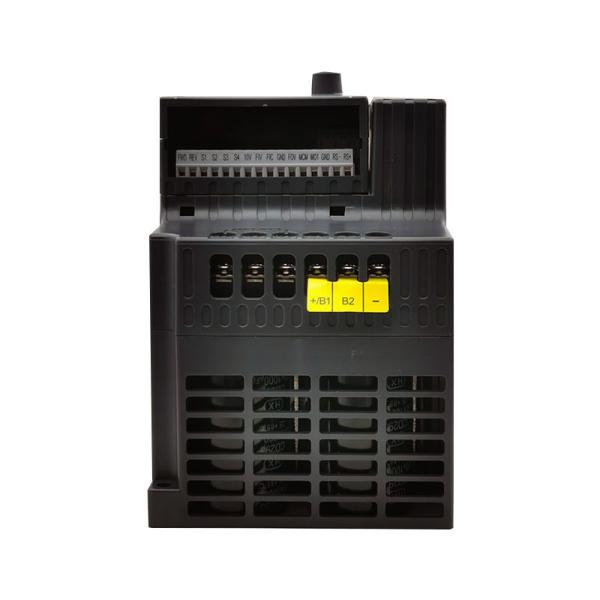

Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory
Specifications
Brand Name :
ZONCN
Model Number :
Z2400-5R5G
Certification :
CE, KC
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T, Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Type :
variable frequency inverter
Brand :
ZONCN
Input&output :
380v 3phase
Series :
Z2000
control model :
vector control
Rated Power :
5.5kw/7hp
Model :
Z2400-5R5G
Frequency :
50hz 60hz
Certificate :
CE
Communication :
RS485
Description

Low Voltage Drive 380v 3.7kw 5.5kw 7.5kw Variable Frequency Inverter From ZONCN Factory

Z2000 Series Inverter Features

A. Overload capacity


It has strong overload capacity, with 150% rated current lasting for 60 seconds and 180% rated current lasting for 3 seconds. This makes the frequency converter more stable and reliable in dealing with short-term high load operation, reducing the probability of faults caused by overload and ensuring smooth motor start-up under heavy load.


B. Performance and environmental adaptability
Superior performance: By adopting advanced vector control technology, high-precision motor control can be achieved, making the motor run more smoothly and with a wider speed range. At the same time, it has good dynamic response performance and can quickly adapt to changes in load.
Good environmental adaptability: It can operate stably in different working environments, has good tolerance to environmental factors such as temperature, humidity, and dust, and can adapt to harsh industrial environments.

Inverter Technical Specification

Item Z2000 Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

VFD Inverter Specification

Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　


*Note: If you have any special requirements for VFD inverter, pls feel free to contact us directly, we can customize for you.
