Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v
Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v
Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v
Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v
Specifications
Brand Name :
ZONCN Inverter Vfd
Model Number :
T200 series VFD T200-2R2G-4
Certification :
CE
Place of Origin :
Shanghai, China
MOQ :
1 unit
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
100000 units a month
Delivery Time :
7-30 work days
Packaging Details :
Carton
Type :
AC frequency drives vfd T200
Packing form :
Carton packing type
Connection mode :
Bottom In and bottom out type
Model :
T200-2R2G-4 vfd
24V DC power supply :
Yes
Power :
2.2kw vfd
Input current :
5.8
Output current :
5.1
Voltage :
380v±15%；380v±15%
Cargo preparation time :
Within 15days preparation
ODM/OEM service :
Support
Description

T200 Series vfd frequency inverter vfd 2.2kw drives

Basic product introduction:

Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v

· Economically affordable; Micro compact design

· Support built-in EMC filter, full power segment can support built-in IGBT; STO function (380v 15KW or less)

· External keyboard parameter copying function

· V/F control, open-oop vector control, closed-loop vector control mode

· Supporting multiple expansion cards: EtherCAT, Profibus-DP, ProfiNet,ModbusTCP, CAN open, Digital l/O, PG card

· Power range 0.4-55KW(above 75kW under developing)

ZONCN T200 series inverter is a high performance, multi-functional frequency conversion drive equipment, its advantages are significant, widely used in various industrial fields. This series of inverter ensures the same operating parameters, performance and quality of the whole machine, and realizes the miniaturization of the product, improves the integration of the internal structure, saves the installation space and cost for customers, and is easier to install and use.
The ZONCN T200 series drives have a built-in electromagnetic compatibility (EMC) filter, which can effectively suppress electromagnetic interference, ensure the stable operation of the equipment, and protect the surrounding electronic equipment from interference. Its detachable keyboard design, not only easy to operate and maintain, but also through the RJ45 interface to achieve convenient communication with the host computer, to meet the needs of various automatic control systems.
In addition, the ZONCN T200 series inverter supports DIN rail installation, and users can choose a variety of installation methods such as wall-mounted and through-wall according to actual needs, and flexibly adapt to various application scenarios. The series also integrates bus technology and a variety of iot functions to provide strong support for intelligent control of industrial equipment. In short, the ZONCN T200 series inverter is the preferred device in the field of industrial automation with its excellent performance and flexible installation.

Product technical parameters:

Item T200 technical parameters
Maximum frequency Vector control:0～600Hz
V/F control:0~3200Hz
Control mode V/F control；Senseless flux vector control(SFVC); Closed loop vector control (CLVC)
Carrier frequency 0.5kHz～16kHz
The carrier frequency can be automatically adjusted based on the load feature
Input frequency resolution Digital setting:0.01Hz
Analog setting: maximum frequency×0.025%
Startup torque G Type:0.5Hz/150%(SFVC)；
P Type:0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Torque control accuracy ±5%(FVC)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost；Customized boost 0.1%-30.0%
V/F curve Straight-line V/F curve；Multi-point V/F curve；
N-power V/F curve (1.2-power, 1.4-power, 1.6- power,1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp；S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.00-6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-100.0s
Braking action current value: 0.0%–100.0%
JOG control Jog frequency range:0.00Hz~50.00Hz.
Jog acceleration/deceleration time0.0s~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input terminal state
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It can keep constant output voltage automatically when the mains voltage changes
Over-voltage/Over-current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Rapid current limit It helps to avoid frequent over-current faults of the inverter
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process
High performance Control of asynchronous motor is implemented through the high-performance current vector control technology
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time
Timing control Timing range 0.0Min～6500.0Min
Communication methods RS485；EtherCAT；Profibus-DP；CAN is optional
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.
Key locking and function selection It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Running command channel Given by the panel, control terminals, Serial communication port, can be switched by many ways
Frequency source 10 kinds of frequency source, given by digital analog voltage, analog current, pulse, serial port. can be switched by many ways
Auxiliary frequency source There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis
Input terminals 5 digital input terminals, one of which supports up to 100 kHz high-speed pulse input;
1 analog input terminal, supports 0-10V voltage input or 4–20 mA current input.
Output terminals 1 digital output terminal
1 relay output terminal
1 analog output terminal : that supports 0–20 mA current output or 0–10 V voltage output
Key locking and function selection It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
Protection mode Motor short-circuit detection at power-on, input output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

Frequency inverter specifications:

Model Input voltage Rated output power(kw) Rated input current(A) Rated output current(A) Motor power(kw)
T200-0R4G-2 AC 1PH 220V± 15% 0.4 5.4 2.5 0.4
T200-0R75G-2 0.75 7.2 5.0 0.75
T200-1R5G-2 1.5 10.0 7.0 1.5
T200-2R2G-2 2.2 16.0 11.0 2.2
T200-0R4G-4 AC 3PH 380V±15% 0.4 3.4 1.2 0.4
T200-0R75G-4 0.75 3.8 2.5 0.75
T200-1R5G-4 1.5 5.0 3.7 1.5
T200-2R2G-4 2.2 5.8 5.0 2.2
T200-3R0G-4 3.0 8.5 7.0 3.0
T200-3R7G/5R5P-4 3.7/5.5 10/15 9/13 3.7/5.5
T200-5R5G/7R5P-4 5.5/7.5 15/20 13/17 5.5/7.5
T200-7R5G/11P-4 7.5/11 20/26 17/25 7.5/11
T200-11G/15P-4 11/15 26/35 25/32 11/15
T200-15G/18.5P-4 15/18.5 35/38 32/37 15/18.5
T200-18.5G/22P-4 18.5/22 38/46 37/45 18.5/22
T200-22G/30P-4 22/30 46/62 45/60 22/30
T200-30G/37P-4 30/37 62/76 60/75 30/37
T200-37G/45P-4 37/45 76/90 75/90 37/45
T200-45G/55P-4 45/55 92/113 90/110 45/55
T200-55G/75P-4 55/75 113/157 110/152 55/75

T200 series expansion card selection:

No. Expansion card model PCB internal model number Function description Applicable model
1 PG-T11-01 T11PG01 ABZ_ Differential input PG card _5V T200-0.4-55 kw
2 PG-T11-02 T11PG02 ABZ_OC& Push-pull input PG card _24V
3 ET-T11-01 T11JK01 1 normally open normally closed relay 2 DL_1 FIV_1 FOC
4 ET-T11-02 T11JK02 1 high speed pulse output _2 DI_1 FIV_1 FOC
5 CM-T11-01 T11CM01 ProfibusDP communication card
6 CM-T11-02 T11CM02 Ethercat communication card
7 CM-T11-03 T11CM03 CAN communication card
8 CM-T11-04 T11CM04 Modbus TCP communication card
9 CM-T11-05 T11CM05 Profinet communication card
Note: This model only has 1 multi-function expansion card interface, communication card and PG share this interface Communication card and PG card can only select one extension, not compatible at the same time.

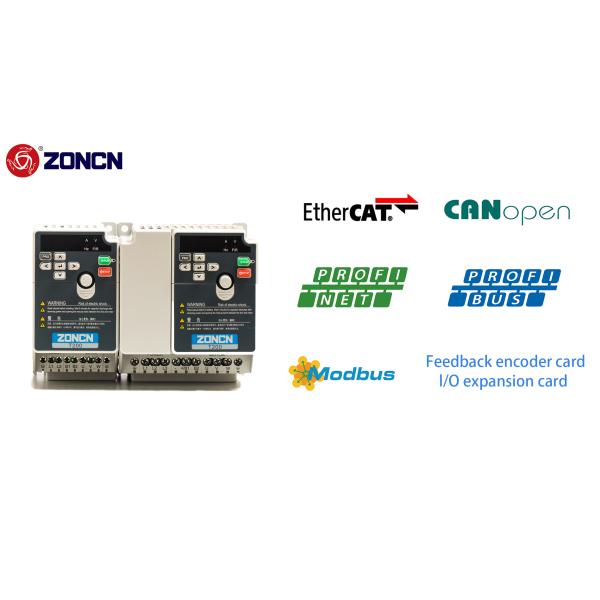

T200 series product circuit diagram:

Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v

Product size:

Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v

Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v

Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v

Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v

About ZONCN:

Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v

Inverter Vfd Drives 2.2kw Low Voltage Frequency Inverter 380v

Our main products include inverter and servo system.Our company has a widerange of products, with medium and low voltage inverters divided into two categories:general-purpose products and industry-specific products, covering voltage levels from AC 220V to 1140V,power rangefrom 0.4kW-1,200kW, and widely used inindustries such as air compressors, plastic machinery, construction machinery, watersupply equipment, metallurgical equipment,textile machinery, machine tools, chemical machinery, mining machinery, printingand packaging, etc.The servo system isdivided into two categories: synchronous servo driver and asynchronous servo drivercovers voltage range from AC220V to480V, power range from 0.4 kW to 132 kW,suitable for various occasions requiring high-performance precision control.

ZONCN has more than 80 dealers in china and abroad. Now our products are exported to more than 50 countries in Asia, Europe,Africa and America. ZONCN will always dedicate in the field of electrical drive and warmly welcome you to be our partner.

FAQ:
Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
