1ph 220V 3 Phase 380V 0.75KW Variable Speed Drive VFD inverter With EMC Filter
1ph 220V 3 Phase 380V 0.75KW Variable Speed Drive VFD inverter With EMC Filter
1ph 220V 3 Phase 380V 0.75KW Variable Speed Drive VFD inverter With EMC Filter
1ph 220V 3 Phase 380V 0.75KW Variable Speed Drive VFD inverter With EMC Filter
Specifications
Brand Name :
ZONCN
Model Number :
Z5200A0D75K-BF
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
To be negotiable according to quantity
Payment Terms :
T/T
Supply Ability :
10000 months
Delivery Time :
within 15 days
Packaging Details :
Inside: box, output side: carton
Product name :
VFD drives
Type :
IP65 VFD inverter
Protection Level :
High protection VFD
Output Frequency :
0-400Hz
Input :
220V single phase
Output :
220V 3phase
Frequency :
50Hz 60HZ
Communication Interface :
RS485
Overvoltage Protection :
Yes
Overheat Protection :
Yes
Undervoltage Protection :
Yes
Short Circuit Protection :
Yes
Description

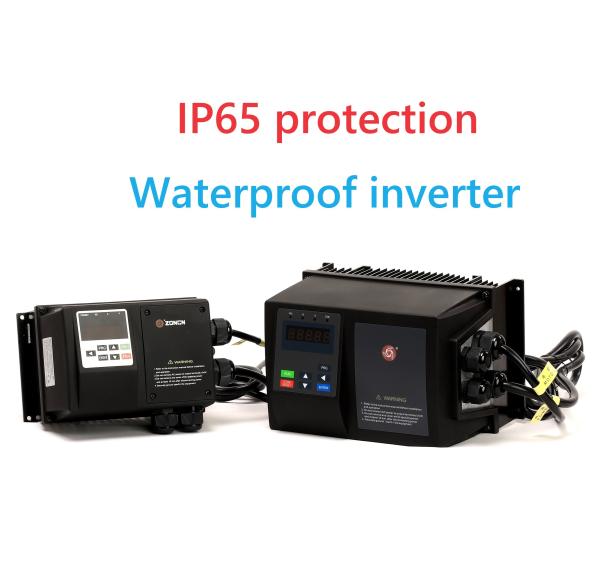

High Protection IP65 waterproof pump inverter VFD

VFD Features

  • Series Z5000
  • This series VFD can be mounted directly on the motor or to the wall;
  • Allow for heavy load equipment;
  • Vector control mode is available (Z5400A Series)
  • VFD Function: No water stop, timing, antifreeze, change pump when fault, water supply alarm, etc. IP65, allows to use in kinds of bad environment.
  • VFD Power range:
  • 220V: 0.75KW~2.2KW
  • 380V: 0.75KW~160KW

VFD Technical Specification

ITEM Z5000-BF Series VFD Inverter
Standard functions Control mode Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0–320 Hz
V/F control: 0–3200Hz
Carrier frequency 1 kHz–16 kHz
The carrier frequency can be automatically adjusted based on the load features.
Input frequency resolution Digital setting: 0.01 Hz
Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5 Hz/150% (SFVC);
P type: 0.5 Hz/100%
Speed range 1:100 (SFVC)
Speed stability accuracy ± 0.5% (SFVC)
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
P type: 60s for 120% of the rated current, 3s for 150% of the rated current
Torque boost Fixed boost
Customized boost 0.1%–30.0%
V/F curve Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
DC braking DC braking frequency: 0.00 Hz to maximum frequency； Braking time: 0.0-36.0s；
Braking action current value: 0.0%–100.0%
JOG control JOG frequency range: 0.00–50.00 Hz
JOG acceleration/deceleration time: 0.0–6500.0s
Onboard Multiple preset speeds It implements up to 16 speeds via the simple PLC function or by input(X) terminal states
Onboard PID It realizes process-controlled closed loop control system easily.
Auto voltage It can keep constant output voltage automatically when the mains voltage changes.
regulation (AVR)
Over-voltage/ The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over-voltage/over-current.
Over-current stall
control
Torque limit and torque control It can limit the torque automatically and prevent frequent over-current tripping during the running process.
Instantaneous stop doesn’t stop The load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
Rapid current limit It helps to avoid frequent over-current faults of the AC drive.
High performance Control of asynchronous motor is implemented through the high-performance current vector control technology.
Timing control Time range: 0.0–6500.0 minutes
Communication methods RS485
Running command channel Given by the panel, control terminals,
Serial communication port, can be switched by many ways
Frequency source 10 kinds of frequency source, given by
Digital analog voltage, analog current, Pulse, serial port. can be switched by many ways
Auxiliary frequency source 10 kinds of Frequency source, given by Digital analog voltage, analog current, pulse, serial port. Can be switched by many ways.
Input and output Input terminals 6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input.(S3)
2 analog input terminal,one of which only supports 0-10V voltage input and the other supports 0–10 V voltage input and 4–20 mA current input.
Output terminal 1 digital output terminal
1 relay output terminal (RA.RB.RC)
1 analog output terminal :that supports 0–20 mA current output or 0–10 V voltage output
Frequency source Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting.
LED display It displays the parameters.
Key locking and function selection It can lock the keys partially or completely and define the function range of some keys so as to prevent malfunction.
Protection mode Motor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

VFD Specification

VFD Model Input voltage Rated Output Power (KW) Rated Input current (A) Rated Output Current (A) Motor Power (kW)
Z5200A00D7K-BF 1PH AC220V ±15% 0.75 7.2 5 0.75
Z5200A01D5K-BF 1.5 10 7 1.5
Z5200A02D2K-BF 2.2 16 11 2.2
Z5400A0D75K-BF 3PH AC380V ±15% 0.75 3.8 2.5 0.75
Z5400A1D5K-BF 1.5 5 3.7 1.5
Z5400A02D2K-BF 2.2 5.8 5 2.2
Z5400A03D7K-BF 3.7 10 9 3.7
Z5400A05D5K-BF 5.5 15 13 5.5
Z5400A07D5K-BF 7.5 20 17 7.5
Z5400A0011K-BF 11 26 25 11
Z5400A0015K-BF 15 35 32 15
Z5400A0018K-BF 18.5 38 37 18.5
Z5400A0022K-BF 22 46 45 22
Z5400A0030K-BF 30 62 60 30
Z5400A0037K-BF 37 76 75 37
… … … … …
Z5400A00160K-BF 160 　 　 160

VFD Nameplate Description

1ph 220V 3 Phase 380V 0.75KW Variable Speed Drive VFD inverter With EMC Filter

VFD Recommendation

1ph 220V 3 Phase 380V 0.75KW Variable Speed Drive VFD inverter With EMC Filter
