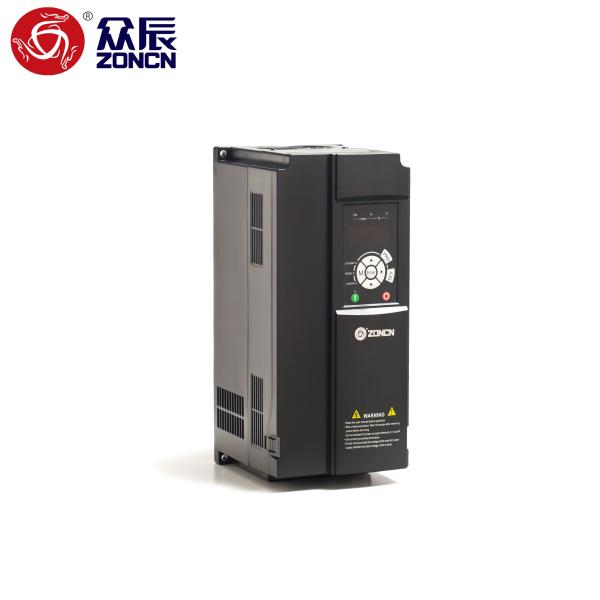

ZONCN T9400-22G/30P Vfd Inverter Low Voltage 380v 440v 22kw 30HP
ZONCN T9400-22G/30P Vfd Inverter Low Voltage 380v 440v 22kw 30HP
ZONCN T9400-22G/30P Vfd Inverter Low Voltage 380v 440v 22kw 30HP
ZONCN T9400-22G/30P Vfd Inverter Low Voltage 380v 440v 22kw 30HP
Specifications
Brand Name :
ZONCN VFD Inverter
Model Number :
T9000 series variable frequency vfd inverter
Certification :
Eu CE certification
Place of Origin :
Shanghai, China
MOQ :
1 unit
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
100000 units a month
Delivery Time :
7-30 work days
Packaging Details :
Carton packing；
Power :
22KW Inverter Vfd
Model :
T9400-22G/30P
Voltage :
380v/440v ±15%
Color :
Black
Application :
Motor speed controller
Brand :
ZONCN VFD
Profinet / RS485 :
Yes
Simple PLC function :
Yes
EMC filter :
No
High speed pulse output :
Yes
AC/DC :
AC in AC out
Description

ZONCN T9000 22kW Vfd AC Drives Inverter Converter

Basic product introduction of T9000:

T9000 series inverter is a high performance vector control inverter from ZONCN Technology company. It can do up to 450KW and supports voltage customization from 110V to 480V. This inverter has excellent performance, supports many types of PG cards, and enables closed-loop control. It supports Profinet/RS485 communication. If the customer needs, this product can also add STO function.

T9000 Series
Vector/VF control Yes Closed loop vector control Yes
Built-in brake unit

Support below 37kw.

Above 45kw optional

 0.1s acceleration and deceleration Yes
Removable panel Support below 5.5kw High speed pulse output Yes
24v power supply Yes DC braking Yes
STO function Yes Profinet / RS485 Yes
I/O extension Yes External set filter Yes
External brake resistor Yes Simple PLC function Yes
Electric reactor Optional PID Yes
EMC filter No Level of protection IP20
Safety certificate CE Simple PLC function Yes
Collector 1 Multi-protection Yes

Technical Specification:

Item T9000 series inverter
Basic function Control mode

V/F control

Open loop vector control (without PG); Closed loop vector control (with PG).
Maximum frequency 0.00-600.00Hz.
Carrier frequency

0.5kHz~16kHz

The carrier frequency is automatically adjusted based on the load features.
Input frequency resolution

Digital setting:0.01Hz

Analog setting: Maximum frequency 0.025%
Start torque

G-type:0.5Hz/150%(no PG);

P-type :0.5Hz/100%
Speed range 1:100(No PG)
Speed stability accuracy ±0.5%(No PG)
Basic function Overload capacity

G Type:60s for 150% of the rated current, 3s for 180% of the rated current.

P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto-boost ; Customized boost:0.1%~30.0%.
VF curve Straight-line VF curve; Multi-point VF curve; N-power VF curve(1.2 power, 1.4 power, 1.6 power, 1.8 power, 2 power)
VF separation 2 types: complete separation；half separation.
Ramp Mode Linear or S-curve acceleration and deceleration mode. Four kinds of acceleration and deceleration time, acceleration and deceleration time range 0.0~65000s.
DC braking Dc braking frequency :0.00Hz~ maximum frequency；Braking interval :0.0s~36.0s ；Braking action current value :0.0%~100.0%
JOG control

Jog frequency range:0~50Hz

Jog acceleration/deceleration time:0-6500s
Simple PLC; Multi-speed operation Up to 16 segment speeds are possible with built-in PLC or control terminals.
Built-in PID It is convenient to realize the closed-loop control system of process control.
Automatic Voltage Regulation (AVR) When the grid voltage changes, it can automatically keep the output voltage constant.
Overvoltage and overcurrent stall control Automatic current and voltage limit during operation to prevent frequent overvoltage skipping.
Rapid current limiting function Minimize the overcurrent fault and protect the normal operation of the inverter.
Torque limit and control Automatic torque limit during operation to prevent frequent overcurrent tripping; The closed-loop vector mode enables torque control.
Characteristic function Excellent performance The control of asynchronous motor is realized with high performance current vector control technology.
Instant stop non-stop function The load feedback energy is used to compensate the voltage reduction in the transient power failure, and the inverter can continue to run for a short time.
Rapid current limit It helps to avoid frequent over current faults ofthe AC drive.
Timing control Timing range:00Min-6500.0Min.
Communication Modbus RS485；Profinet communication(Optional communication card).
Supports a variety of PG cards Support for differential input PG card, resolver PG card, rotating transformer PG card and so on.
Running Command source Operation panel, control terminal, serial communication port. Users can switch in a variety of ways.
Frequency source 10 frequency sources: digital set, analog voltage set, analog current set, pulse set, serial port set. Users can switch in a variety of ways.
Auxiliary frequency source 10 auxiliary frequency sources. Users can flexibly realize auxiliary frequency fine-tuning and frequency synthesis.
Input terminal

Standard :4(1PH 220V 0.4kW-2.2kW-VF control) / 5(1PH 220V 0.4kW-3.7kW-vector control /3PH 380V 0.4kW-5.5kW vector control) / 6(7.5kW or more) digital input terminals, The S3 supports high-speed pulse input up to 100kHz;

1 (below 5.5KW) / 2 (above 7.5KW) analog input terminals, 1 support 0-10V voltage input, 1 (above 7.5KW) support 0-10V voltage input or 4-20mA current input.
Output terminal

1 high-speed pulse output and collector output terminals (1PH 220V 0.4KW-2.2KW-VF control is not supported); 1(below 5.5KW)/2(above 7.5KW) relay output terminal;

1(1PH 220V 0.4kW-3.7kw-vector /3PH 380V 0.4KW-5.5KW vector)/ 2(7.5KW or more) mode output terminal, support 4~20mA current output or 0~10V voltage output.
Protection Protection function Short-circuit detection, input and output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, overload protection, etc.
Service OEM/ODM services We offer this service to customers in many countries around the world, and we recruit distributors worldwide.
Warranty

We provide 18 months of failure replacement, free maintenance and other services.

Product specifiction:

Model Rated output power (kW) Rated input current (A) Rated output current (A) Motor Power (kW)
Input voltage(v):1PH/3PH AC 220V±15%
T9200-0R4G 0.4 5.4 2.5 0.4
T9200-0R75G 0.75 7.2 5 0.75
T9200-1R5G 1.5 10 7 1.5
T9200-2R2G 2.2 16 11 2.2
T9200-3R7G 3.7 17 16.5 3.7
T9200-5R5G 5.5 26 25 5.5
T9200-7R5G 7.5 35 32 7.5
Input voltage(v):3PH AC 380V±15%
T9400-0R4G 0.4 3.4 1.2 0.4
T9400-0R75G 0.75 3.8 2.5 0.75
T9400-1R5G 1.5 5 3.7 1.5
T9400-2R2G 2.2 5.8 5 2.2
T9400-3R7G/5R5P 3.7/5.5 10/15 9/13 3.7/5.5
T9400-5R5G/7R5P 5.5/7.5 15/20 13/17 5.5/7.5
T9400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
T9400-11G/15P 11/15 26/35 25/32 11/15
T9400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
T9400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
T9400-22G/30P 22/30 46/62 45/60 22/30
T9400-30G/37P 30/37 62Z76 60/75 30/37
T9400-37G/45P 37/45 76/90 75/90 37/45
T9400-45G/55P 45/55 92/113 90/110 45/55
T9400-55G 55 113 110 55
T9400-75P 75 157 150 75
T9400-75G/90P 75/90 157/180 150/176 75/90
T9400-90G/110P 90/110 180/214 176/210 90/110
T9400-110G/132P 110/132 214/256 210/253 110/132
T9400-132G/160P 132/160 256/307 253/300 132/160
T9400-160G/185P 160/185 307/355 300/340 160/185
T9400-185G/200P 185/200 355/385 340/380 185/200
T9400-200G/220P 200/220 385/430 380/420 200/220
T9400-220G/250P 220/250 430/475 420/470 220/250
T9400-250G/280P 250/280 475/525 470/520 250/280
T9400-280G/315P 280/315 525/610 520/600 280/315
T9400-315G/350P 315/350 610/665 600/640 315/350

Product wiring diagram:

ZONCN T9400-22G/30P Vfd Inverter Low Voltage 380v 440v 22kw 30HP

T9000 VFD application:

ZONCN T9400-22G/30P Vfd Inverter Low Voltage 380v 440v 22kw 30HP

In practical applications, the T9000 vfd inverter has been widely recognized. According to the feedback of a large machinery manufacturing enterprise, after the introduction of T9000 frequency converter, the equipment failure rate is significantly reduced, and the production efficiency is increased by more than 20%. This data fully proves the excellent performance and stable reliability of the T9000 vfd inverter in the industrial field.

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
