3phase 220v Variador De Velocidad Variable Frequency Drives 3hp AC Drives 2.2kw inverter
3phase 220v Variador De Velocidad Variable Frequency Drives 3hp AC Drives 2.2kw inverter
3phase 220v Variador De Velocidad Variable Frequency Drives 3hp AC Drives 2.2kw inverter
3phase 220v Variador De Velocidad Variable Frequency Drives 3hp AC Drives 2.2kw inverter
3phase 220v Variador De Velocidad Variable Frequency Drives 3hp AC Drives 2.2kw inverter
3phase 220v Variador De Velocidad Variable Frequency Drives 3hp AC Drives 2.2kw inverter
Specifications
Brand Name :
ZONCN
Model Number :
Z2200-2R2G-3
Certification :
KC; CE
Place of Origin :
China
MOQ :
1 PC
Payment Terms :
T/T, Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Type :
variable frequency inverters
Brand :
ZONCN
Input :
3PH 220V
Output :
3PH 220V
Rated Power :
2.2kw/3HP
communication :
RS485
Keypad :
Potentiometer available
Description

3phase 220v Variador De Velocidad Variable Frequency Drives 3hp AC Drives 2.2kw inverter

Inverter Description

Item ZONCN Z2000 Series Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Inverter Specification

Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　

For powers above 200kw, kindly contact us for more details, for Z2000 series of inverter, we can produce until 450kw.

Company Introduction

ZONCN, established in 2005, focus on producing VFD inverter with 19 years of experience.
ZONCN is developing very fast these years. Our inverter's annual sales volume in 2023 is 1 million units, and ZONCN listed on the A-share market of the Shanghai Stock Exchange in the same year (Stock Code 603275).
Our HQ is in Shanghai, and we both have inverter factories in Shanghai and Wuhu city.
We always welcome you to visit our factory for VFD inverter business negotiation.
Don't hesitate to contact us directly if you have any questions for VFD inverters. We are at your service.

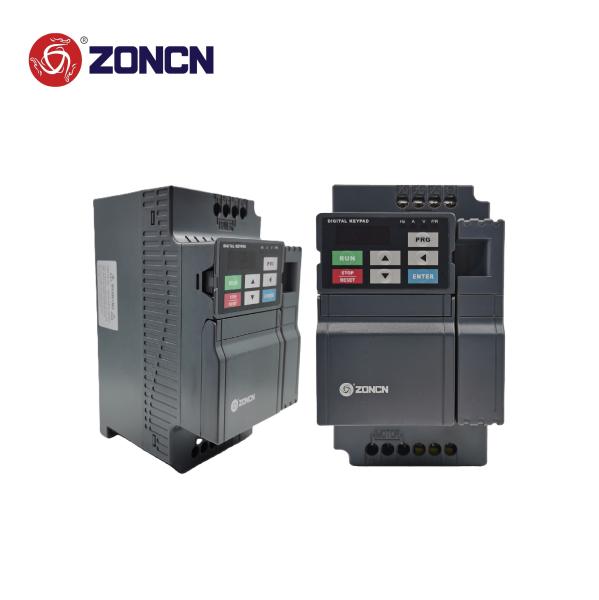

Inverter Picture

3phase 220v Variador De Velocidad Variable Frequency Drives 3hp AC Drives 2.2kw inverter
