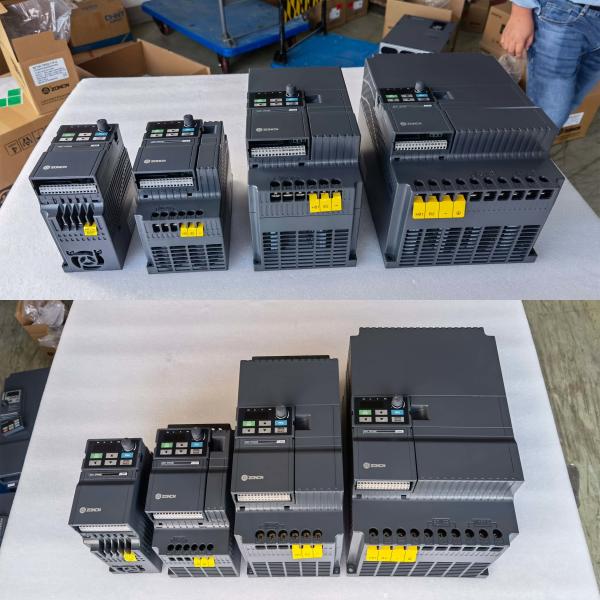

380v Frequency Low Voltage Inverter 30kW Vfd Ac Drives ZONCN Z2000 Series
380v Frequency Low Voltage Inverter 30kW Vfd Ac Drives ZONCN Z2000 Series
380v Frequency Low Voltage Inverter 30kW Vfd Ac Drives ZONCN Z2000 Series
380v Frequency Low Voltage Inverter 30kW Vfd Ac Drives ZONCN Z2000 Series
Specifications
Brand Name :
ZONCN Vfd
Model Number :
Z2000 Series Vfd
Certification :
CE+KC
Place of Origin :
Shanghai, China
MOQ :
1 unit
Payment Terms :
T/T, Western Union，Paypal
Supply Ability :
100000 units a month
Delivery Time :
7-30 work days
Packaging Details :
Carton packing；
Warranty :
18 months warranty
Power :
30kW Vfd
Voltage :
380V Vfd
Type :
AC drives vfd
Solar application :
No
Speed range :
1:100(SVC)
Ingress Protectio :
IP 20
Ambient Temperature :
-10℃-40℃
VF curve :
Line V/F curve；Multi-point V/F curve；N-power V/F curve
JOG control :
JOG frequency range: 0.00–50.00 Hz
Timing control :
Timing range:0.0Min~6500.0Min
LED display :
It displays the parameters.
Description

Z2000 English Catalog.pdf

VFD ZONCN Z2000 Series 30KW AC Drives Pump Vfd Inverter

Basic product introduction:

Z2000 series high performance compact vfd inverter

· Senseless flux vector control (VC)；V/F (Voltage/Frequency) Control.

· Overload capacity is 60s for 150% of the rated current,3s for 180% of the rated curent.

· There are ten auxiliary frequency sources.

· It can implement fine tuning of auxiliary frequencyand frequency synthesis.

· Support PM motor (Z2000T series)

· Power range: 220V 0.4~7.5kW；380V 0.75~450kW

Technical Specification:

Item Z2000 series vfd inverter
Control mode Senseless flux vector control(SFVC)；Voltage/Frequency(V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ；The carrier frequency is automatically adapted according to the characteristics of the load.
Input frequency solution Digital setting: 0.01Hz Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ； P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost or Customized boost 0.1%-30.0%
V/F cure Line V/F curve; Multi-point V/F curve; N-powor VI/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp; S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency:0.0Hz to maximum frequency
Braking time: 0.0~100.0s ; Braking action current value: 0.0%~100.0%
JOG control J0G frequency range:0.00-50.00Hz；JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset
speeds		 lt implements up to 16 speeds via the simple PLC function or combination of X terminal states
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation (AVR) It has the ability to maintain a consistent output voltage even when there are fluctuations in the mains voltage.
Auto voltage/Over current
stall control		 The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive vfd


380v Frequency Low Voltage Inverter 30kW Vfd Ac Drives ZONCN Z2000 Series

Product wiring diagram:

380v Frequency Low Voltage Inverter 30kW Vfd Ac Drives ZONCN Z2000 Series

Product applications:

The Z2000 series vfd finds extensive application in fans, pumps, compressors, lathes, spindle motors, textile machinery, food processing equipment, crushers, packaging machinery, printing machinery, washing machines, conveyor systems, grinding machines, polishing machines, and various other types of equipment. It has garnered positive feedback and satisfaction from customers.

FAQ:

Q1:What is your MOQ?
A: 1 pc

Q2:What's your terms of payment?
A:T/T 100% before delivery.

Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.

Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
