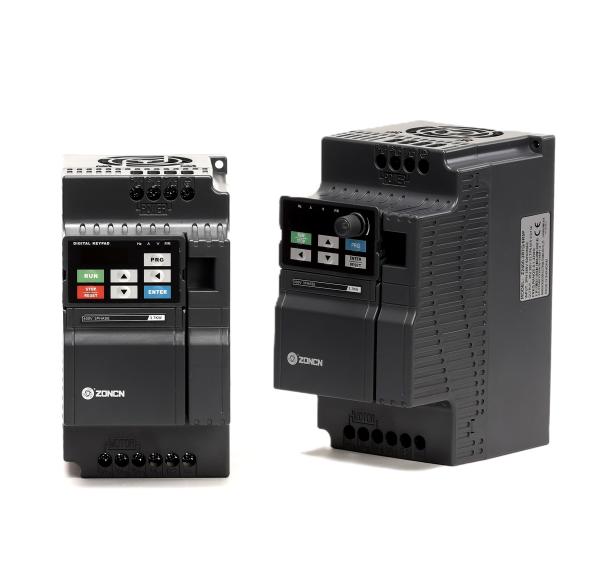

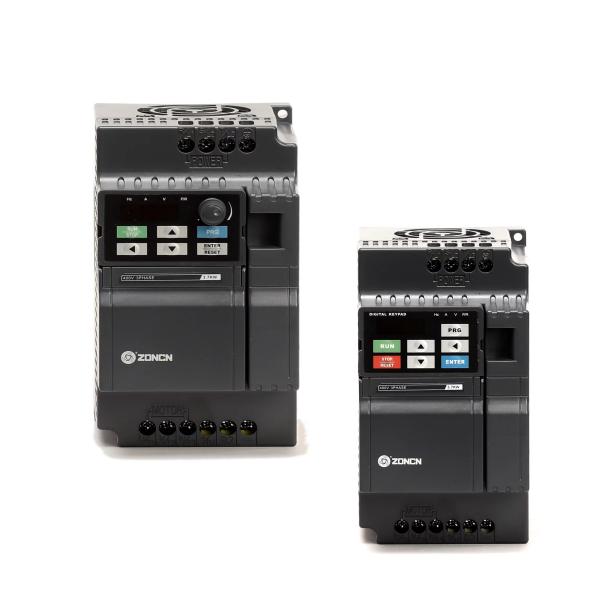

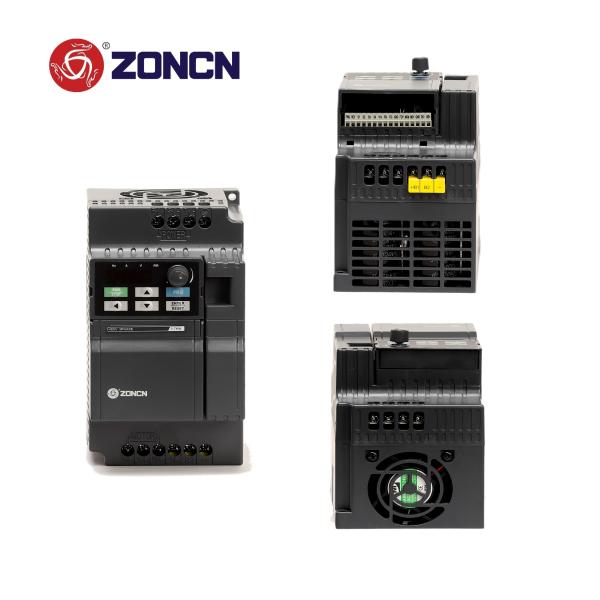

ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication
Specifications
Brand Name :
ZONCN
Model Number :
Z2400-5R5G
Certification :
KC; CE
Place of Origin :
China
MOQ :
1 PC
Price :
netigotable
Payment Terms :
T/T,Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Type :
VFD inverters
Brand :
ZONCN
Voltage :
380V/440v/480v
Power range :
0.4kw-450kw
Communication :
Modbus RS485/EtherCAT
MOQ :
1 unit
Application :
industrial control
Analog input :
Have
Potentiometer :
Have
OEM :
Yes
Warranty :
18 months
Description

ZONCN Manufacturing VFD Inverter 5.5kw 7.5kw 11kw 220v 380v AC Drives With RS485 Communication



About ZONCN

ZONCN Z2000 series inverters are designed to meet the demanding needs of modern industrial applications, offering a combination of advanced technology, reliability, and user-friendly features. Here are the key characteristics of the ZONCN Z2000 series based on the provided information.

  1. High Performance and Precision

    • The Z2000 series delivers exceptional motor control with precise speed and torque regulation, ensuring smooth and efficient operation in various applications.

  2. Energy Efficiency

    • Equipped with advanced energy-saving algorithms, the Z2000 series significantly reduces power consumption, helping businesses lower operational costs and achieve sustainability goals.

  3. Compact and Robust Design

    • The inverters feature a compact and durable design, making them suitable for installation in space-constrained environments and capable of withstanding harsh industrial conditions.

  4. Wide Application Range

    • The Z2000 series is versatile and can be used in industries such as air compressor, water treatment, manufacturing, textile, agriculture, mining and more, providing reliable performance across diverse applications.

  5. User-Friendly Interface

    • With an intuitive control panel and easy-to-configure settings, the Z2000 series simplifies operation and reduces the need for extensive technical expertise during setup and maintenance.

  6. Advanced Protection Mechanisms

    • The series includes comprehensive protection features such as overvoltage, undervoltage, overload, and short-circuit protection, ensuring the safety and longevity of both the inverter and connected equipment.

  7. Stable Low-Speed Performance

    • The Z2000 series maintains stable and efficient operation even at low motor speeds, making it ideal for applications requiring precise control at reduced speeds.

  8. Customizable Parameters

    • Users can easily adjust and customize parameters to meet specific application requirements, enhancing flexibility and adaptability.

  9. Reliable and Durable

    • Built with high-quality components, the Z2000 series ensures long-term reliability and minimal downtime, even in demanding industrial environments.

  10. Excellent After-Sales Support

    • ZONCN provides robust technical support and maintenance services, ensuring customers receive timely assistance and maximizing the inverter's performance and lifespan.

In summary, the ZONCN Z2000 series inverters stand out for their high performance, energy efficiency, durability, and versatility, making them a trusted choice for industries seeking advanced and reliable frequency conversion solutions.


Inverter Description

Item ZONCN Z2000 Series Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Inverter Specification

Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　
