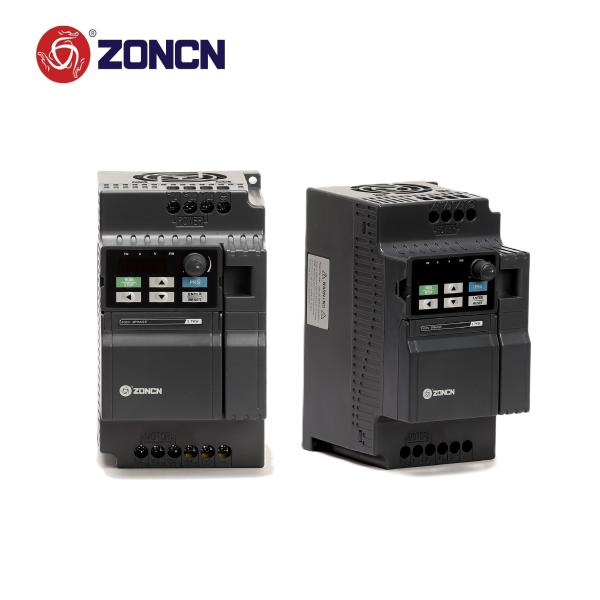

ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters

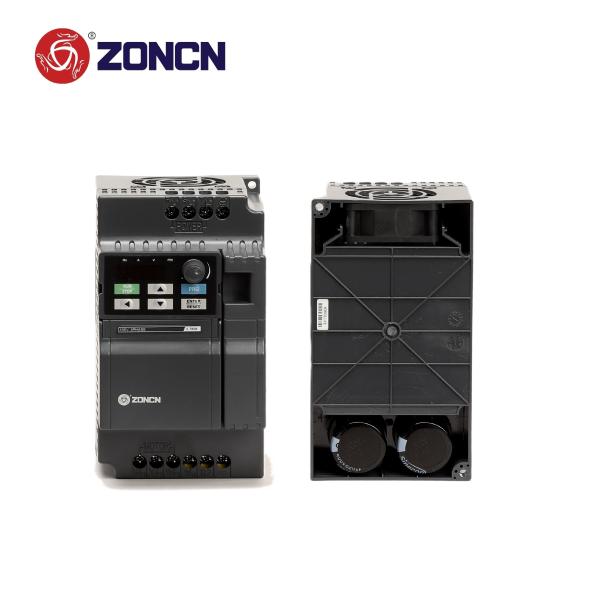

ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters
ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters
ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters
ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters
ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters
ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters
ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters
Specifications
Brand Name :
ZONCN
Model Number :
Z2400-5R5G
Certification :
KC; CE
Place of Origin :
China
MOQ :
1 PC
Price :
netigotable
Payment Terms :
T/T,Paypal
Supply Ability :
100,000 pcs/month
Delivery Time :
7-30 days
Packaging Details :
inside: box; outside: carton
Type :
VFD inverters
Brand :
ZONCN
Voltage :
380V/440v/480v
Power range :
0.4kw-450kw
Communication :
Modbus RS485
EtherCAT communication :
Available
MOQ :
1 Unit
Application :
Industrial Automation control
OEM :
Yes
Lead time :
Within 15 days normally after payment
Warranty :
18 months
Certificate :
CE
Description

ZONCN Manufacturing Variable Speed Drive 380v 3phase VFD Drive 1.5kw 2.2kw 3.5kw 5.5kw Inverters



ZONCN Z2000 Inverter Features

    • ZONCN Z2000 series inverters are a high-performance and cost-effective solution designed for a wide range of industrial applications. Here are the key features of the Z2000 series based on the provided information:

      1. Advanced Control Modes

        • The Z2000 series supports open-loop vector control and V/F control, providing precise motor speed and torque regulation for superior performance in various applications.

      2. High Overload Capacity

        • With a robust design, the Z2000 series can handle 150% rated current for 60 seconds and 180% rated current for 3 seconds, ensuring reliable operation under heavy loads.

      3. Excellent Performance and Environmental Adaptability

        • The inverters are designed to deliver superior performance and can operate effectively in challenging environments, making them suitable for a wide range of industrial conditions.

      4. Compact and Easy-to-Install Design

        • The Z2000 series features a simple structure and compact size, allowing for easy installation and space-saving integration into existing systems.

      5. High Torque Output for Heavy-Duty Applications

        • As an economical yet high-performance vector inverter, the Z2000 series provides high starting torque, ensuring smooth motor startup even under heavy loads.

      6. Enhanced Reliability with Advanced Functions

        • The inverters are equipped with instantaneous power loss ride-through and fast current limiting functions, reducing the likelihood of frequent fault alarms and improving system reliability.

      7. Comprehensive Protection Features

        • The Z2000 series offers complete protection mechanisms, including output phase loss protection, overcurrent/overvoltage protection, overload protection, and overheating protection, ensuring the safety and longevity of both the inverter and connected equipment.

      8. Support for Permanent Magnet Synchronous Motors (Z2000T Series)

        • The Z2000T series is specifically designed to support permanent magnet synchronous motor (PMSM) control, making it ideal for applications requiring high efficiency and precise control.

Inverte Description

Item ZONCN Z2000 Series Inverter
Standard Function Control mode Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control
Maximum frequency Vector control: 0-320Hz ; V/F control: 0-3200Hz
Carrier frequency 1-16kHz ; The carrier frequency is automatically adjusted based on the load features
Input frequency solution Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025%
Startup torque G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100%
Speed range 1:100
Speed stability accuracy ±0.5%
Overload capacity G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
Torque boost Auto boost ; Customized boost 0.1%-30.0%
V/F curve Line V/F curve; Multi-point V/F curve; N-power V/F curve
V/F separation Two types: complete separation; half separation
Ramp mode Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
DC braking DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0%
JOG control JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s
Onboard multiple preset speeds It implements up to 16 speeds via the simple PLC function or combination of X terminal states.
Onboard PID It realizes process-controlled closed loop control system easily
Auto voltage regulation(AVR) It can keep constant output voltage automatically when the mains voltage changes.
Auto voltage/ Over current stall control The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current
Rapid current limit It helps to avoid frequent over current faults of the AC drive
Torque limit and control It can keep constant output voltage automatically when the mains voltage changes

Inverter Specification

Inverter Model Rated Output Power(kW) Rated Input Current(A) Rated Output Current(A) Motor Equipped(kW)
Input Voltage:1PH or 3PH AC 220V±15%
Z2200-0R4G 0.4 5.4 2.5 0.4
Z2200-0R75G 0.75 7.2 5 0.75
Z2200-1R5G 1.5 10 7 1.5
Z2200-2R2G 2.2 16 11 2.2
Z2200-3R7G 3.7 23 16.5 3.7
Z2200-5R5G 5.5 21 25 5.5
Z2200-7R5G 7.5 31 32 7.5
Input Voltage:3PH AC 380V±15%
Z2400-0R75G 0.75 3.8 2.5 0.75
Z2400-1R5G 1.5 5 3.7 1.5
Z2400-2R2G 2.2 5.8 5 2.2
Z2400-3R7G/5R5P 3.7/5.5 10/15.0 9/13 3.7/5.5
Z2400-5R5G 5.5 15 13 5.5
Z2400-7R5G/11P 7.5/11 20/26 17/25 7.5/11
Z2400-11G/15P 11/15 26/35 25/32 11/15
Z2400-15G/18.5P 15/18.5 35/38 32/37 15/18.5
Z2400-18.5G/22P 18.5/22 38/46 37/45 18.5/22
Z2400-22G/30P 22/30 46/62 45/60 22/30
Z2400-30G/37P 30/37 62/76 60/75 30/37
Z2400-37G/45P 37/45 76/90 75/90 37/45
Z2400-45G/55P 45/55 90/105 90/110 45/55
Z2400-55G 55 105 110 55
Z2400-75G/90P 75/90 140/160 150/176 75/90
Z2400-90G/110P 90/110 160/210 176/210 90/110
Z2400-110G/132P 110/132 210/240 210/253 110/132
Z2400-132G/160P 132/160 240/290 253/300 132/160
Z2400-160G/185P 160/185 290/330 300/340 160/185
Z2400-185G/200P 185/200 330/370 340/380 185/200
Z2400-200G/220P 200/220 370/410 380/420 200/220
… 　 　 　 　
