Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function
Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function
Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function
Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function
Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function
Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function
Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function
Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function
Specifications
Brand Name :
ZONCN VFD Inverter
Model Number :
T9000 series variable frequency vfd inverter
Certification :
Eu CE certification
Place of Origin :
Shanghai, China
MOQ :
1 unit
Payment Terms :
T/T,Western Union，Paypal
Supply Ability :
100000 units a month
Delivery Time :
7-30 work days
Packaging Details :
Carton packing；
Power :
22KW Inverter Vfd
Model :
T9400-22G/30P
Voltage :
380v/440v ±15%
Color :
Black
Application :
Motor speed controller
Brand :
ZONCN VFD
OEM/ODM services :
Support
Rated voltage :
380V vfd inverter
NPN/PNP :
Support
JOG control :
Jog frequency range：0~50Hz Jog acceleration/deceleration time：0-6500s
Torque boost :
Auto-boost ; Customized boost:0.1%~30.0%.
VF separation :
2 types: complete separation；half separation.
Description

ZONCN T9000 22kW Vfd Inverter Drive


Product description:

· Open loop/closed loop vector control, V/F control (built-in PlD)of synchronous and asynchronous motors

· Large torque output, which can ensure smooth starting ofmotor under heavy load
· Powerful function and outstanding performance, suitable formost general occasions
· Support multiple types of PG cards
· Support instant stop and instant start

· Compact structure, easy to install
· Power range: 220V: 0.4-3.7kW 380V: 0.4-450kW


T9000 inverter features:
1: STO function supported
2: Communication above 5.5KW is supported by profinet, ethercat, canopen communication
3: Supports 24V terminals
4: Support closed loop, open loop vector control and VF control
5: The keyboard can be removed or pulled out of the keyboard
6: Supports PNP/NPN
7: Support PG card
8: Supports instant stop and instant start

Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function


Product specifiction:

Model

Rated output power (kW)

Rated input current (A)

Rated output current (A)

Motor Power (kW)

Input voltage(v):1PH/3PH AC 220V±15%

T9200-0R4G

0.4

5.4

2.5

0.4

T9200-0R75G

0.75

7.2

5

0.75

T9200-1R5G

1.5

10

7

1.5

T9200-2R2G

2.2

16

11

2.2

T9200-3R7G

3.7

17

16.5

3.7

T9200-5R5G

5.5

26

25

5.5

T9200-7R5G

7.5

35

32

7.5

Input voltage(v):3PH AC 380V±15%

T9400-0R4G

0.4

3.4

1.2

0.4

T9400-0R75G

0.75

3.8

2.5

0.75

T9400-1R5G

1.5

5

3.7

1.5

T9400-2R2G

2.2

5.8

5

2.2

T9400-3R7G/5R5P

3.7/5.5

10/15

9/13

3.7/5.5

T9400-5R5G/7R5P

5.5/7.5

15/20

13/17

5.5/7.5

T9400-7R5G/11P

7.5/11

20/26

17/25

7.5/11

T9400-11G/15P

11/15

26/35

25/32

11/15

T9400-15G/18.5P

15/18.5

35/38

32/37

15/18.5

T9400-18.5G/22P

18.5/22

38/46

37/45

18.5/22

T9400-22G/30P

22/30

46/62

45/60

22/30

T9400-30G/37P

30/37

62Z76

60/75

30/37

T9400-37G/45P

37/45

76/90

75/90

37/45

T9400-45G/55P

45/55

92/113

90/110

45/55

T9400-55G

55

113

110

55

T9400-75P

75

157

150

75

T9400-75G/90P

75/90

157/180

150/176

75/90

T9400-90G/110P

90/110

180/214

176/210

90/110

T9400-110G/132P

110/132

214/256

210/253

110/132

T9400-132G/160P

132/160

256/307

253/300

132/160

T9400-160G/185P

160/185

307/355

300/340

160/185

T9400-185G/200P

185/200

355/385

340/380

185/200

T9400-200G/220P

200/220

385/430

380/420

200/220

T9400-220G/250P

220/250

430/475

420/470

220/250

T9400-250G/280P

250/280

475/525

470/520

250/280

T9400-280G/315P

280/315

525/610

520/600

280/315

T9400-315G/350P

315/350

610/665

600/640

315/350

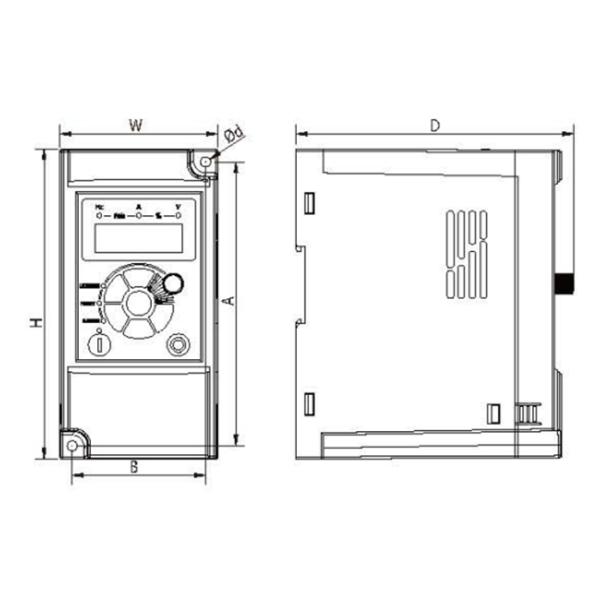

Product size:

Size

Model

W

H

D

A

B

Φd

A

T9200-0R4G

72

142

127

130

61

4.5

T9200-0R75G

T9200-1R5G

T9200-2R2G-VF

T9400-0R4G

T9400-0R75G

T9400-1R5G

T9400-2R2G

A

T9200-2R2G

85

180

131

167

72

5.5

T9200-3R7G

T9400-3R7G/5R5P

T9400-5R5G/7R5P

B

T9400-7R5G/11P

106

240

168

230

96

4.5

T9400-11G/15P

B

T9200-7R5G

151

332

183

318

137

7

T9400-15G/18.5P

T9400-18.5G/22P

T9400-22G/30P

B

T9400-30G/37P

217

400

216

385

202

7

T9400-37G/45P


Size A

Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function

Size B

Vfd Drives Variable Frequency Inverter 22KW 380V Low Voltage With STO Function


FAQ:

Q1:What is your MOQ?
A: 1 pc


Q2:What's your terms of payment?
A:T/T 100% before delivery.


Q3:What's your delivery time?
A:Generally within 15 days after receiving full payment.


Q4:How can l get OEM/ODM order?
A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
