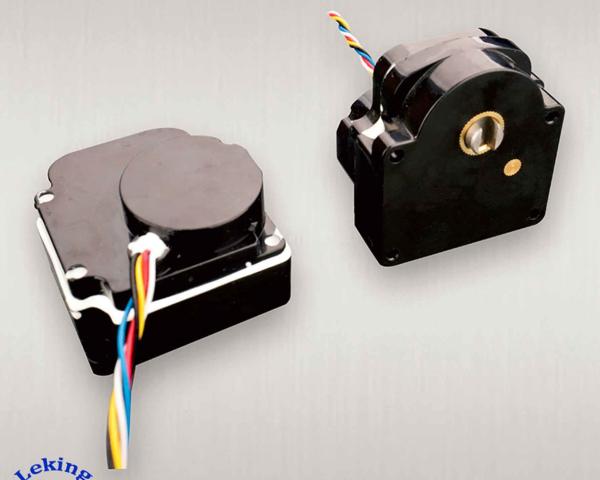

Zone Valve Synchron Motor 24V Synchron Valve Motor For Zone Control Valves
Zone Valve Synchron Motor 24V Synchron Valve Motor For Zone Control Valves
Zone Valve Synchron Motor 24V Synchron Valve Motor For Zone Control Valves
Zone Valve Synchron Motor 24V Synchron Valve Motor For Zone Control Valves
Specifications
Brand Name :
Runpaq
Model Number :
K06-DN15/32
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Price :
USD2.28/piece (>2000 pieces) USD2.5 / piece (1000 - 2000 pieces)
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
carton
Rated voltage :
DC3.6V
Voltage range :
DC2.5V - DC5V
Work current at 3.6V :
<25 mA (23 C)
Current at max loading :
about 550 mA
Motor :
Geared synchornized step motor #320
Torque :
1.8 NM (2400:1) / 4.5NM (5000:1)
Open / close time :
< 10 S (2400:1), <20 S (5000:1)
Reduction ratio :
2400:1 (For DN15 , DN20); 5000:1 (DN25)
Product name :
geared synchoronous motor actuator, mini motorised valve actuator
Model :
K05
Description

zone valve synchron motor, replacement zone valve motor,24V zone valve motor actuator

Product description

Our motorized valve actuators are widely used the zone control valves in heat meter, floor heating system, hot water control, air conditioning, HVAC, cold water meter, etc. The built-in limit junction can make the power off when valves fully open or closed. Valve body is forged by brass, with zinc plating surface. The actuator is driven by geared synchronous motor, and the movement is stable. A zone valve motor is a specific type of valve used for controlling the flow of water or steam or liquid in a hydronic heating or cooling sytem. An ideal honeywell zone valve motor replacement head.


Technical data-Model K06
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <550 mA (motor #320)
4. Torque: >1.8 NM (2400:1); >4.5NM (5000:1)
5. Open/close time: <10S (2400:1) <20S (5000:1)
6. Velocity reduction ratio: 2400:1 (for DN15 / DN20 ball valve); 5000:1 (DN25)
7. Protection: IP67

Wiring definition

No Color of wire Definition
1 blue on position signal, valve open
2 white on position signal, public
3 yellow on position signal, valve close
4 black positive (+)
5 red negative (-)

Production overview
Zone Valve Synchron Motor 24V Synchron Valve Motor For Zone Control ValvesZone Valve Synchron Motor 24V Synchron Valve Motor For Zone Control ValvesZone Valve Synchron Motor 24V Synchron Valve Motor For Zone Control Valves
