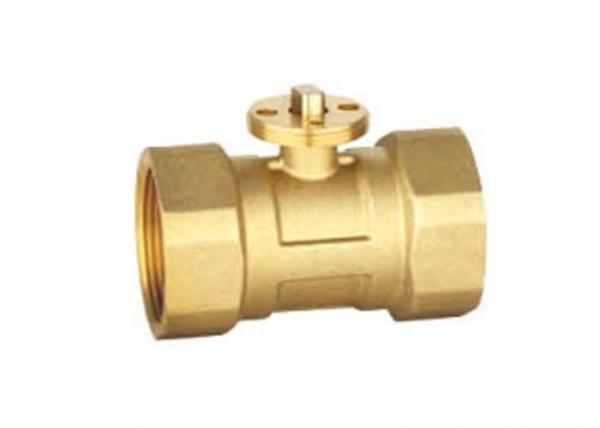

2 Way Motorized Zone Valve , 22mm Motor Operated Ball Valve For Heat Flow DN15
2 Way Motorized Zone Valve , 22mm Motor Operated Ball Valve For Heat Flow DN15
2 Way Motorized Zone Valve , 22mm Motor Operated Ball Valve For Heat Flow DN15
2 Way Motorized Zone Valve , 22mm Motor Operated Ball Valve For Heat Flow DN15
Specifications
Brand Name :
Runpaq
Model Number :
8018-Maglock
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Price :
USD3.59/piece (>1000pcs) / USD4.31/piece (50-1000 pcs)
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
box + maste carton + pallet
Work pressure :
16 bar / 1.6 Mpa / 232 psi / PN16
Connect port :
FNPT both end, FNPT-NPT
Valve body material :
brass, stainless steel SS304, 316
Product name :
3 way heating valves
Life cycle :
>100,000 times
Usage :
Underfloor heating system, hydronic heating system, HVAC
Temperature of media :
Medium temperature, normal temperature, high temperature, low temperature
Media :
water, oil, 50% glycol, steam
Description

hot water heat flow valve, 2 way motorised zone valve, Valve body: brass, DN15

Product Description
We produce the best mini motorized valve. Its pressure rating is PN16, more than 100,000 cycles life cycles. Our DC motorised valve can attached to IC card prepay water meter, AMR water meter, or used to control the flow of hot water in a central heating system. The motorised valve can be used for control of both heating and hot water, and it works by controlling the flow of water from the heating boiler to other parts of the system.

Application

  • HVAC system heating, ventilation, air conditioning
  • Heating system
  • Baseboard/radiant heating
  • Convectors
  • Fan coil units
  • Underfloor heating
  • Unit ventilators
  • VAV reheat

Advantages

  • Sturday valve body with reasonable structure design, and best material to be used

2 Way Motorized Zone Valve , 22mm Motor Operated Ball Valve For Heat Flow DN15

No Name Material Advantage
1. O-ring

Import
fluoro rubber (green)

 Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage.
2. Drainage Drain just in case leakage happens
4 0-ring EPDM (red) Between nut and valve body, extra external leak proof, reduce the possibility of internal leak
8. Ball Brass or SS304 Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance
9. Water proof G Avoid water into housing, seal between valve body and valve housing

2 Way Motorized Zone Valve , 22mm Motor Operated Ball Valve For Heat Flow DN15

No Name Material Advantages
5. Wall thickness 2.0mm, PN20
6. Teflon washer Import teflon

1. Import teflon tube, numerical processing to perfectly match with ball surface
2. Minimal deformation, polish surface, wearable
7 0-ring EPDM

1. Good elasticity, as buffer after Teflon washer to improve seal effect
2. Reasonable structure design, ensures perfect holding margin


2 Way Motorized Zone Valve , 22mm Motor Operated Ball Valve For Heat Flow DN15
