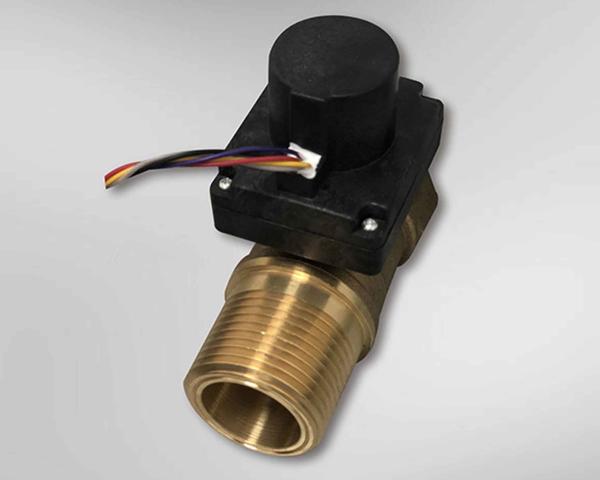

Electric Synchronous Zone Valve Motor For Ball Valve Control DN15
Electric Synchronous Zone Valve Motor For Ball Valve Control DN15
Electric Synchronous Zone Valve Motor For Ball Valve Control DN15
Electric Synchronous Zone Valve Motor For Ball Valve Control DN15
Specifications
Brand Name :
Runpaq
Model Number :
K14-DN20
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Price :
USD2.28/piece (>2000 pieces) USD2.5 / piece (1000 - 2000 pieces)
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
carton
Rated voltage :
DC3.6V
Voltage range :
DC2.5V - DC5V
Work current at 3.6V :
<25 mA (23 C)
Current at max loading :
about 450 mA
Motor :
electric ball valve motor
Torque :
1.8 NM
Open / close time :
< 10 S
Reduction ratio :
2200 : 1 (For DN15, DN20 motorized ball valve)
Product name :
Electric ball valve actuator motor
Model :
K14
Description

electric control valve actuator, zone valve motor for electric ball valve dN15

Product description

The actuator motor can be attached to irrigation water meter, IC card prepay water meter, heat meter, motorized ball valve to control the electric ball valve open or close. The 5V electric actuator motors are consisted of: the synchronous geared motor, it is one in which the rotor normally rotates at the same speed as the revolving field in the machine. The stator is similar to that of an induction machine consisting of a cylindrical iron frame with windings, usually located in slots around the inner periphery.


Technical data-Model K14
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <450 mA (motor #300)
4. Torque: >1.8 NM
5. Open/close time: <10S
6. Velocity reduction ratio: 2200:1
7. Protection: IP66

Wiring definition

No Color of wire Definition
1 blue on position signal, valve open
2 white on position signal, public
3 yellow on position signal, valve close
4 black positive (+)
5 red negative (-)

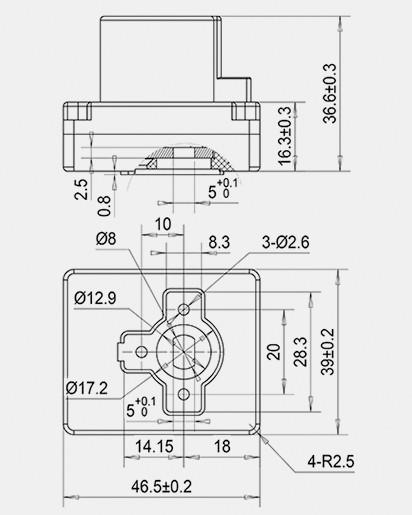

Production overview
Electric Synchronous Zone Valve Motor For Ball Valve Control DN15Electric Synchronous Zone Valve Motor For Ball Valve Control DN15Electric Synchronous Zone Valve Motor For Ball Valve Control DN15
