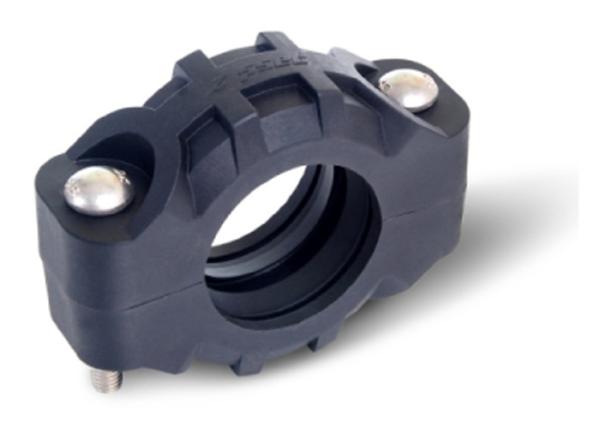

300 Psi Pressure Grooved Pipe Fitting DN25 With Nylon Plastic Material
300 Psi Pressure Grooved Pipe Fitting DN25 With Nylon Plastic Material
300 Psi Pressure Grooved Pipe Fitting DN25 With Nylon Plastic Material
300 Psi Pressure Grooved Pipe Fitting DN25 With Nylon Plastic Material
Specifications
Brand Name :
Runpaq
Model Number :
75N-DN50
Certification :
NONE
Place of Origin :
China
MOQ :
50 pieces
Price :
USD6/piece (50-500 pieces), USD4/piece (>500 pieces)
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
20000 sets/month
Delivery Time :
15-21 days
Packaging Details :
carton + pallet
Style :
grooved flexible coupling
Pressure :
300 psi / 21 bar
Diameter :
DN25-DN300, 1"-12"
Gasket :
EPDM
Bolt & nut :
SS304
Housing material :
Nylon plastic, N66
Model :
75N-DN25
Application :
UF / RO / Waste water treatment plan, landleachet
Description

Grooved pipe fittings, nylon flexible couplings for grooved pipe system DN25-DN300, 300psi

Description

The model 75N is designed for solving the corrosion problems which usually happen in low pressure piping systems. Our couplings are produced in good quality reinforced nylon, injection molded by high temperature. It features its high strength and toughness, perfect corrosion resistance performance. They're widely used in ultra filtration ( UF ) membrane system and other water treatment, seawater desalination equipment.

Our flexible couplings give contractors, engineers and owners an unmatched competitive edge cutting piping system installation time, and making installations safer. These grooved pipe joints offers you with innovative solutions acrossdiverse business lines including building services, clean water and waste water, fire protection, industrial construction, maritime, mining, oil, gas and chemical, power generation, as well as custom castings.

Specifications

  • Pressure rating: 300 psi ( 21 bar)
  • Size range (Diameter): DN 25 to DN150 | 1" to 6"
  • Operation temperature range: -50 ℃ to 150 ℃
  • Standards: ANSI/AWWA/ASTM/ANSI/NSF61

Quick joints housing materials:

Nylon, other composite, plastic material upon demands.

Bolts&Nuts:

  • Type 304 stainless steel track bolts and nuts to ASTM F-593
  • Type 316 stainless steel track bolts and nuts to ASTM F-593
  • Type 316 stainless steel track bolts ASTM A193 B-8M with silicone bronze heavy duty nuts to ASTM B98 C65100​

Rubber Gaskets or seals:

The gasket seals is C-shaped, made of standard gasket EPDM (ethylene propylene diene monomer) for cold water, hot water, rare acid, oilfree air and multiple chemical product (-50~150 ).It is not suitable for medium like petroleum

Data sheet

Nominal
size

Pipe

OD

Pressure

rating

Pipe end

separation

 Dimensions
A B C
mm mm psi mm mm mm mm
in in bar in in in in
25
1		 33.4
1.315		 300
20.67		 0-1.6
0-0.06		 54
2.126		 94
3.701		 42
1.654
32
1.25		 42.20
1.660		 300
20.67		 0-1.6
0-0.06		 63
2.480		 103
4.055		 44
1.732
40
1.5		 48.30
1.900		 300
20.67		 0-1.6
0-0.06		 70
2.756		 112
4.409		 44
1.732
50
2		 60.30
2.375		 300
20.67		 0-1.6
0-0.06		 82
3.228		 124
4.882		 44
1.732
65
2.5		 73.00
2.875		 300
20.67		 0-1.6
0-0.06		 96
3.780		 148
5.827		 44
1.732
65 76.10
3.000		 300
20.67		 0-1.6
0-0.06		 100
3.937		 152
5.984		 44
1.732
80
3		 88.90
3.500		 300
20.67		 0-1.6
0-0.06		 113
4.449		 166
6.535		 44
1.732
100
4		 114.3
4.500		 300
20.67		 0-3.2
0-0.13		 140
5.512		 193
7.598		 48
1.890
125
5		 141.3
5.563		 300
20.67		 0-3.2
0-0.13		 167
6.575		 222
8.740		 50
1.969
150
6		 168.3
6.625		 300
20.67		 0-3.2
0-0.13		 196
7.717		 252
9.921		 56
2.205

Applications

Clean water Reverse osmosis | RO system, Ultrafiltration | UF system, seawater desalination,
Waste water Water treatment, waste water treatment, seawater desalination, effluent treatment plant
Grooved piping Fire protection, industrial construction, maritime, mining, oil, gas and chemical, power generation

Competitive advantage

  • AutoCAD is used to design products and optimize structures

  • Cast Process Design by by Castsoft CAD and CAE

  • Strict Manufacturing Process control

  • Quality Control Of The Casting Material

  • Metal Material Laboratory for test of compositional, metallographic & mechanical property

  • Perfect apperance

  • Strict test standard compliance to UL213 and FM1920

  • Strict standard for sealing gaskets production and material test.
