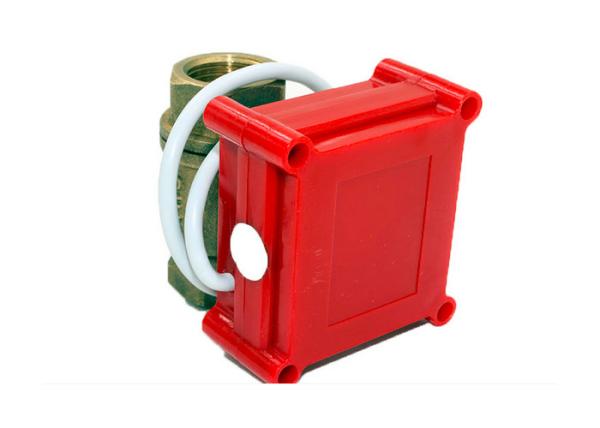

PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control
PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control
PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control
PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control
Specifications
Brand Name :
Runpaq
Model Number :
20P1A-T2-15-1
Certification :
CE
Place of Origin :
China
MOQ :
50 pieces
Price :
USD25/piece (>1000pcs) / USD26.5 (50-1000 pcs)
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
box + maste carton + pallet
Diameter :
DN15-DN40 (two way or three way)
Work Pressure :
150 psi / 10bar / PN10 / 1.0 Mpa
Work current :
<80 mA
Voltage :
DC5V / DC12V
Power :
less than 2W
Torque :
2NM
Open/close time :
< 7 seconds (2 way); <13 seconds (3 way)
Product name :
heating control valves
Description

central heating zone valve faults, underfloor zone heating valves, 2 way staight

Product Description

Our complete line of zone control valves are available from DN15 to DN32, and many different thread connection ports. They can used for zone valve controls, priority zoning circulators, or fan controls, central heating and cooling systems. Together with thermostats, it realizes heating zones control by regulating the water flow in your floor heating systems.

Features

1. Extreme long service life span ;

2. Manual Override, the valve can be operated when power failure;

3. Mini dimension and position indicator

4. Good sealing performance, IP65 enclosure

Application

  • HVAC system heating, ventilation, air conditioning
  • Baseboard/radiant heating
  • Convectors
  • Fan coil units
  • Underfloor heating
  • Unit ventilators
  • VAV reheat

Advantages

  • Sturday valve body with reasonable structure design, and best material to be used
No. Ours Normal products
Valve shaft seal Quadruple seals Dual seals
Nut seal Auto super anaerobic glue coating, Consistent torque tightening Manual anaerobic glue, unevenly, non consistent torque tightening
Seal between valve body and housing Seal groove none
Torque Smoothly and light Heavy, non consistently
Drainage Yes none

PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control

Technical data

Model 20P-1.0A
Work Amp (mA) Max 80
Protection IP65
Power (W) <2
Operate Pressure (Mpa) PN10
Torque (NM) 2
Dia range DN8-32 (Straight); DN15-20 (Tee, three way)
Open/close (S) Straight: < 7s; Three way: <13s
Work volt. (V) DC3-6V, DC12V
Media temp (℃) 0-90
Control CR01, CR02, CR05
Dimensions
Valve body material Connection port Diameter D L H W
(mm) (Kg)
Brass Both female thread full diameter DN8 8 46 31 0.232
DN10 8 46 31 0.231
DN15 15 57 38 0.308
DN20 15 66 38 0.389
DN25 20 72 47 0.478
3-way vertical DN15 12 63 49 0.31
DN20 15 66 53 0.367
Female-male thread DN15 15 63 38 0.307
DN20 15 66 38 0.337
DN32 20 76 50 0.569
Both male thread DN15 15 68 38 0.299

PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control

Wiring options

  • Two wires and reverse polarity (DC3-6V / DC12V)

PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control

1. Connecting SW to OPEN , the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSE , the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)

  • Three wires and two control points (DC3-6V / DC12V / DC24V)

PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control

1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: AC24V/AC220V can only be used for 50K series electric valves

  • Three wires and one control point (DC3-6V/12V)

PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control

1. Connecting SW, the valve opens , getting the position ,automatically power off, thevalve remain fully open position

2. Disconnecting SW, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: When power is DC voltage and Red Wires is “+”,Blue wire is “—”

  • Two wires and power off return (DC3-6V/ADC9-24V/AC220V)

PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control

1. SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position

2. SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position

  • Five wires micro conntroller with signal feedback (DC3-6V/12V)

PN10 Underfloor Hydronic Straight Zone Valve DN40 2 Way Heating Control

1. Connecting SW and OPEN, the valve opens, getting the position green wire output the OLS signal, the controller tests the signal OLS, connect SW to STOP, the valve stops and remains fully open position

2. Connecting SW and CLOSE, the valve close, getting the position red wire output the CLS signal, the controller tests the signal CLS, connect SW to STOP, the valve stops and remains fully close position,

Note: Please make sure the signal wires "red", "black" and "green" be connected at first, then connect the power wires " yellow" and "blue".
