1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle
1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle
1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle
1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle
Specifications
Brand Name :
Runpaq
Model Number :
20P1A-T2-15
Certification :
CE
Place of Origin :
China
MOQ :
50 pieces
Price :
USD25/piece (>1000pcs) / USD26.5 (50-1000 pcs)
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
box + maste carton + pallet
Diameter :
DN15-DN40 (two way or three way)
Work Pressure :
150 psi / 10bar / PN10 / 1.0 Mpa
Work current :
<80 mA
Voltage :
DC5V / DC12V
Torque :
2NM
Open/close time :
< 7 seconds (2 way); <13 seconds (3 way)
Product name :
heating control valves
Usage :
Hydronic Heating, cooling, HVAC, boiler, geotheramal systems with water source heat pumps
Description

Automatic Zone Heating valves with manual handle, brass two way electric ball valve

Product Description

A central heating system with zone valves, it provides heat to a building from a centralised location, typically treating the entire building as a whole and relying on one temperature setting and reading to know when to turn the heat on or off. The mini electric motorized valve will function as a control ball valve, to be opened or closed, so as to regulate the heat water flow.

Features

1. Extreme long service life span ;

2. Manual Override, the valve can be operated when power failure;

3. Mini dimension and position indicator

4. Good sealing performance, IP65 enclosure

Application

  • HVAC system heating, ventilation, air conditioning
  • Baseboard/radiant heating
  • Convectors
  • Fan coil units
  • Underfloor heating
  • Unit ventilators
  • VAV reheat

Advantages

  • Sturday valve body with reasonable structure design, and best material to be used
No. Ours Normal products
Valve shaft seal Quadruple seals Dual seals
Nut seal Auto super anaerobic glue coating, Consistent torque tightening Manual anaerobic glue, unevenly, non consistent torque tightening
Seal between valve body and housing Seal groove none
Torque Smoothly and light Heavy, non consistently
Drainage Yes none

1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle

Technical data

Model 20P-1.0A
Work Amp (mA) Max 80
Protection IP65
Power (W) <2
Operate Pressure (Mpa) PN10
Torque (NM) 2
Dia range DN8-32 (Straight); DN15-20 (Tee, three way)
Open/close (S) Straight: < 7s; Three way: <13s
Work volt. (V) DC3-6V, DC12V
Media temp (℃) 0-90
Control CR01, CR02, CR05
Dimensions
Valve body material Connection port Diameter D L H W
(mm) (Kg)
Brass Both female thread full diameter DN8 8 46 31 0.232
DN10 8 46 31 0.231
DN15 15 57 38 0.308
DN20 15 66 38 0.389
DN25 20 72 47 0.478
3-way vertical DN15 12 63 49 0.31
DN20 15 66 53 0.367
Female-male thread DN15 15 63 38 0.307
DN20 15 66 38 0.337
DN32 20 76 50 0.569
Both male thread DN15 15 68 38 0.299

1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle

Wiring options

  • Two wires and reverse polarity (DC3-6V / DC12V)

1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle

1. Connecting SW to OPEN , the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSE , the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)

  • Three wires and two control points (DC3-6V / DC12V / DC24V)

1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle

1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note:AC24V/AC220V can only be used for 50K series electric valves

  • Three wires and one control point (DC3-6V/12V)

1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle

1. Connecting SW, the valve opens , getting the position ,automatically power off, thevalve remain fully open position

2. Disconnecting SW, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note:When power is DC voltage and Red Wires is “+”,Blue wire is “—”

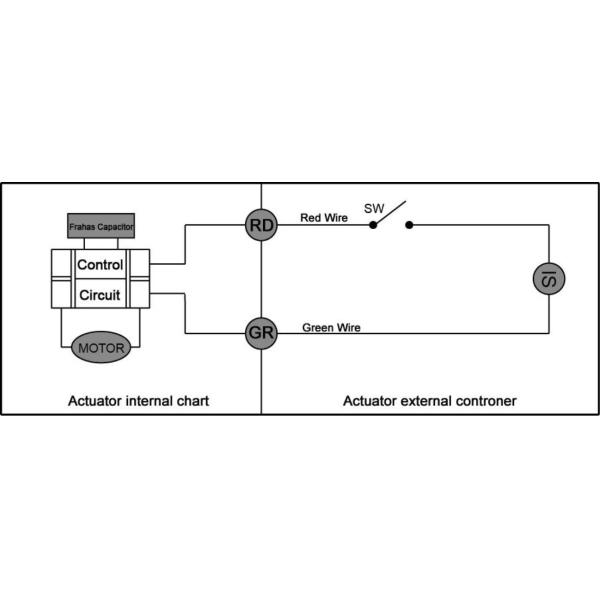

  • Two wires and power off return (DC3-6V/ADC9-24V/AC220V)

1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle

1. SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position

2. SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position

  • Five wires micro conntroller with signal feedback (DC3-6V/12V)

1.0 Mpa Automatic Motorised Ball Valve , 2 Way Motorised Valve With Manual Handle

1. Connecting SW and OPEN, the valve opens, getting the position green wire output the OLS signal, the controller tests the signal OLS, connect SW to STOP, the valve stops and remains fully open position

2. Connecting SW and CLOSE, the valve close, getting the position red wire output the CLS signal, the controller tests the signal CLS, connect SW to STOP, the valve stops and remains fully close position,

Note: Please make sure the signal wires "red", "black" and "green" be connected at first, then connect the power wires " yellow" and "blue".
