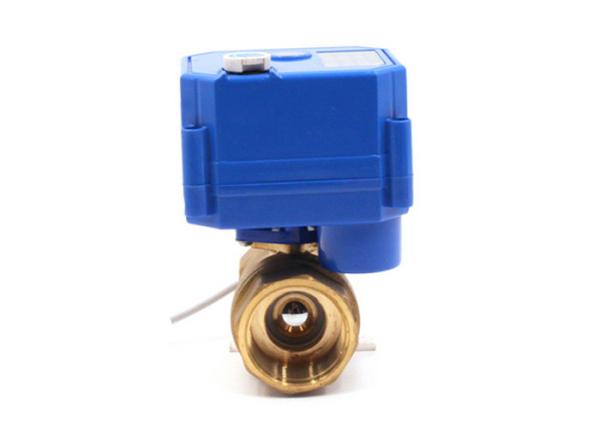

Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque
Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque
Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque
Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque
Specifications
Brand Name :
Runpaq
Model Number :
25S-T2-15-2
Certification :
CE
Place of Origin :
China
MOQ :
50 pieces
Price :
USD25/piece (>1000pcs) / USD26.5 (50-1000 pcs)
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
box + maste carton + pallet
Diameter :
Full diameter or reduce port: DN8-32
Work Pressure :
10bar / PN10 / 1.0 Mpa / 150 psi
Work current :
<80 mA
Voltage :
DC5V / DC12-24V / AC85-230V / AC220V
Torque :
2.5 NM
Open/close time :
< 5 seconds
Product name :
underfloor heating motorized valve;underfloor heating zone valve
Application :
HVAC, Hydronic Heating and cooling, boiler, geotheramal systems with water source heat pumps
Description

Boiler zone heating valves, brass zone valves for baseboard heating, 2 point control

Product Description

The motorised ball valve is intended to be used in closed circuits only. Our zone control valve is a range of 2-way motorized zone valve, which is with motor actuator for use in heating and cooling system. The brass or stainless ball valve is available in DN15-32, PN10 with thread connection. The actuator is controlled by 2-point signal and is recommended for on/off function, available for 230V AC, 50/60Hz or DC power supply.

Features

1. Extreme long service life span ;

2. Manual Override, the valve can be operated when power failure;

3. Mini dimension and position indicator

4. Good sealing performance, IP65 enclosure

Application

  • HVAC system heating, ventilation, air conditioning
  • Baseboard/radiant heating
  • Convectors
  • Fan coil units
  • Underfloor heating
  • Unit ventilators
  • VAV reheat

Advantages

  • Sturday valve body with reasonable structure design, and best material to be used
No. Ours Normal products
Valve shaft seal Quadruple seals Dual seals
Nut seal Auto super anaerobic glue coating, Consistent torque tightening Manual anaerobic glue, unevenly, non consistent torque tightening
Seal between valve body and housing Seal groove none
Torque Smoothly and light Heavy, non consistently
Drainage Yes none

Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque

Technical data

Model 25S
Work Current (mA) <80
Protection IP65
Power (W) <2
Operate pressure (Mpa) PN10
Torque (NM) 2.5
Diameter range (mm) DN8-DN32 two way DN8-DN20 three way
Open/close time (S) <8
Work voltage (V) DC3-6V; DC12V; AC/DC9-24V; AC220V; AC85-265V
Liquid temperature (℃) 0-90
Control mode CR01; CR02; CR03; CR04; CR05
Dimensions
Valve body material Connection port Diameter D L H W
(mm) (Kg)
Brass Both female thread full diameter DN8 8 46 31 0.357
DN15 15 57 38 0.433
DN20 20 71 45 0.513
DN25 23.5 72 49 0.603
Both female threaded reduced diameter DN10 8 46 31 0.356
DN20 15 66 38 0.448
DN25 20 72 47 0.608
DN32 25 86 60 0.82
3-way vertical DN15 12 63 49 0.434
DN20 15 66 53 0.492
Female-male thread full port DN15 15 63 38 0.432
Female-male thread reduce port DN20 15 66 38 0.462
Both male thread DN15 15 68 38 0.424
Stainless steel Both female thread full diameter DN8 8 46 31 0.364
DN15 15 55 38 0.44
DN20 20 71 45 0.508
DN25 25 72 49 0.617
Both female threaded reduce diameter DN15 8 46 30.5 0.368
DN20 15 63 39 0.513
DN25 20 75 47 0.608

Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque

Wiring options

  • Two wires and reverse polarity (DC3-6V / DC12V / DC24V)

Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque

1. Connecting SW to OPEN , the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSE , the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)

  • Three wires and two control points (DC3-6V / DC12V / DC24V)

Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque

1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: AC24V/AC220V can only be used for 50K series electric valves

  • Three wires and one control point (DC3-6V/12V /ADC9-24V /AC220V)

Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque

1. Connecting SW, the valve opens , getting the position ,automatically power off, thevalve remain fully open position

2. Disconnecting SW, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: When power is DC voltage and Red Wires is “+”,Blue wire is “—”

  • Two wires and power off return (DC3-6V/ADC9-24V/AC220V)

Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque

1. SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position

2. SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position

  • Five wires micro conntroller with signal feedback (DC3-6V/12V/24V)

Baseboard Heating Brass Zone Control Valve PN10 2.5 NM Torque

1. Connecting SW and OPEN, the valve opens, getting the position green wire output the OLS signal, the controller tests the signal OLS, connect SW to STOP, the valve stops and remains fully open position

2. Connecting SW and CLOSE, the valve close, getting the position red wire output the CLS signal, the controller tests the signal CLS, connect SW to STOP, the valve stops and remains fully close position,

Note: Please make sure the signal wires "red", "black" and "green" be connected at first, then connect the power wires " yellow" and "blue".
