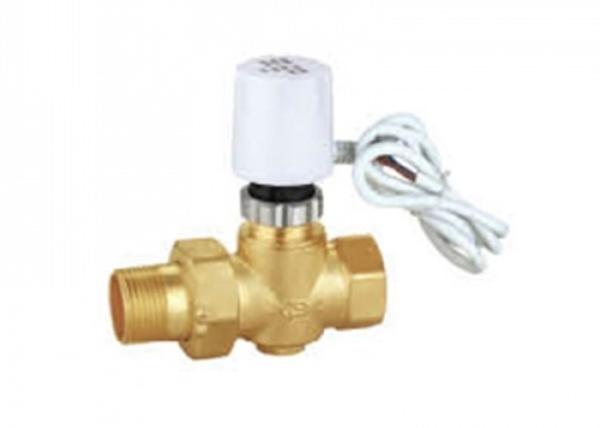

Two Port Motorised Valve 1 Inch Brass PN16 22mm 2 Port Valve Electric Heating Systems
Two Port Motorised Valve 1 Inch Brass PN16 22mm 2 Port Valve Electric Heating Systems
Two Port Motorised Valve 1 Inch Brass PN16 22mm 2 Port Valve Electric Heating Systems
Two Port Motorised Valve 1 Inch Brass PN16 22mm 2 Port Valve Electric Heating Systems
Specifications
Brand Name :
Runpaq
Model Number :
8064-1011
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Price :
USD3.59/piece (>1000pcs) / USD4.31/piece (50-1000 pcs)
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
box + maste carton + pallet
Work pressure :
16 bar / 1.6 Mpa / 232 psi / PN16
Connect port :
FNPT both end, FNPT-NPT
Valve body material :
brass, stainless steel SS304, 316
Product name :
3 way heating valves
Life cycle :
>100,000 times
Usage :
underfloor heating system, hydronic heating system, HVAC
Temperature of media :
Medium temperature, normal temperature, high temperature, low temperature
Media :
water, oil, 50% glycol, steam
Description

2 port Motorized zone valve,1 inch motorized zone valve, valve body: brass, PN16

Product Description
The electric motorized heating zone valves, are an electrically controlled ball valve, which are used in central heating systems to control the flow of heated water in the home. Our range consists: diameters ranges DN10-DN32, 2 and 3 ports, both end threads: female, male, or female-male.

Application

  • HVAC system heating, ventilation, air conditioning
  • Heating system
  • Baseboard/radiant heating
  • Convectors
  • Fan coil units
  • Underfloor heating
  • Unit ventilators
  • VAV reheat

Advantages

  • Sturday valve body with reasonable structure design, and best material to be used

Two Port Motorised Valve 1 Inch Brass PN16 22mm 2 Port Valve Electric Heating Systems

No Name Material Advantage
1. O-ring

Import
fluoro rubber (green)

 Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage.
2. Drainage Drain just in case leakage happens
4 0-ring EPDM (red) Between nut and valve body, extra external leak proof, reduce the possibility of internal leak
8. Ball Brass or SS304 Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance
9. Water proof G Avoid water into housing, seal between valve body and valve housing

Two Port Motorised Valve 1 Inch Brass PN16 22mm 2 Port Valve Electric Heating Systems

No Name Material Advantages
5. Wall thickness 2.0mm, PN20
6. Teflon washer Import teflon

1. Import teflon tube, numerical processing to perfectly match with ball surface
2. Minimal deformation, polish surface, wearable
7 0-ring EPDM

1. Good elasticity, as buffer after Teflon washer to improve seal effect
2. Reasonable structure design, ensures perfect holding margin


Two Port Motorised Valve 1 Inch Brass PN16 22mm 2 Port Valve Electric Heating Systems
