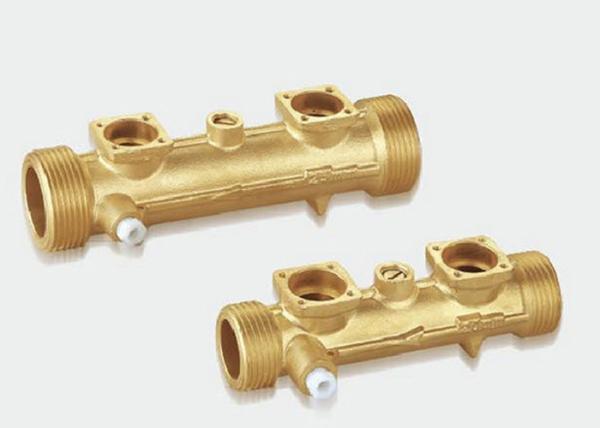

Mechanical Brass Water Meter Housing Ultrasonic Heat Meter Pipe 16 Bar
Mechanical Brass Water Meter Housing Ultrasonic Heat Meter Pipe 16 Bar
Mechanical Brass Water Meter Housing Ultrasonic Heat Meter Pipe 16 Bar
Mechanical Brass Water Meter Housing Ultrasonic Heat Meter Pipe 16 Bar
Specifications
Brand Name :
Runpaq
Model Number :
004-DN15-3
Certification :
NONE
Place of Origin :
China
MOQ :
100 pieces
Price :
USD5.5 (100-1000 pieces ) / USD4.95 (>1000 pieces)
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
20 - 30 days
Packaging Details :
carton + pallet
Diameter :
DN15-DN40 (1/2" to 1-1/2")
Pressure :
PN16 / 1.6 Mpa / 232 psi / 16 bar
Material :
Brass / Stainless steel SS304 / 316
Reflect mirror :
W
Options :
With ball valve or without ball valve
Warranty :
10 years
Application :
Ultrasonic water meter, heat meter, digital flow meter
Liquid media :
hot water, cold water, potable water
Description

mechanical water meter housing, 1in water meter, ultrasonic heat meter pipe brass

General Introduction

We own a complete equipment and technology to produce the spare parts for ultrasonic water meter housing. The valve bodies are usually made of low lead brass, the pressure rating: PN16, diameter range: DN15 - DN50 for residential digial water meter meter, ultrasonic heat counter. The DN50 or above are for industrial ultrasonic water meter.

Product Features:
- Good pipe structure ensures small and even velocity gradient

- Reasonable structure of reflecting column will produce swirl

- Good structure of reflecting column will avoid swirl

- Unreasonable pipe structure leads to large velocity gradient

Technical Parameter

Diameter Tube length (mm) Thread (inch) Transducer hole size (mm) Core (mm) remarks
DN15 110 G3/4B Φ21x9.2mm (17.2x1.5) - customized available
DN20 130 G1B Φ21x9.2mm 17.2x1.5
Φ14x46mm		 customized available
DN25 160 G1-1/4B Φ21x9.2mm 17.2x1.5 Φ17x60mm customized available
DN32 180 G1-1/2B Φ21x9.2mm 17.2x1.5 Φ22.5x60mm customized available
DN40 200 G2B Φ21x9.2mm 17.2x1.5 Φ28.5x60mm customized available


Process equipments


Question and Answers:
-Q: What is the most accurate flow meter, and what is the most popular used water meter?
-A: In terms of accuracy or precision of a flow meter, it depends on the application, a wide range of intelligent flow meters type are for selection: electromagnetic flow meter, ultrasonic flow meter, turbine flow meter, coriolis flow meter, etc. From the point of volumetric water metering, it's mechanical water meter, voumetric water meter, ultrasonic water meter, etc.
