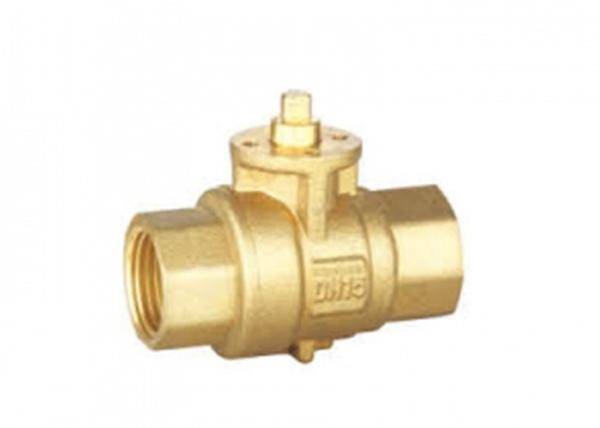

Stainless DN15 Boiler Zone Valve PN16 DC Actuator Motor Boiler Control
Stainless DN15 Boiler Zone Valve PN16 DC Actuator Motor Boiler Control
Stainless DN15 Boiler Zone Valve PN16 DC Actuator Motor Boiler Control
Stainless DN15 Boiler Zone Valve PN16 DC Actuator Motor Boiler Control
Specifications
Brand Name :
Runpaq
Model Number :
8055-8007
Certification :
CE
Place of Origin :
China
MOQ :
50 pieces
Price :
USD3/piece (>1000pcs) / USD3.5 (50-1000 pcs)
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
box + maste carton + pallet
Diameter :
Two way: DN15-DN40
Pressure :
16 bar / PN16 / 1.6 Mpa / 225 psi
Connect :
Female thread, Male thread, Female-male thread
Material :
Brass / Stainless steel SS304 / 316
Option :
temperature sensor hole
Seal :
silicon rubber, PTFE
Temperature :
90 C / 200 C
Product name :
motorised ball valve
Description

Stainless Heating Control Valve, Boiler Zone Valve, DN15, PN16 DC Actuator Motor

Product Description

The boiler zone valves are installed on the hot side of boiler, or the outside of heating pipe loop. Expose the valve to higher and more stressful temperatures. Zone valves are installed backwards, the ball valve must be installed so that the arrow on the valve body, matches the hot water flow direction.

Features

1. Extreme ong service life span ;

2. Manual Override, the valve can be operated when power failure;

3. Mini dimension and position indicator

4. Good sealing performance, IP65 enclosure

Application

  • Prepay water meter, AMR water meter
  • HVAC system heating, ventilation, air conditioning
  • Baseboard/radiant heating
  • Convectors
  • Fan coil units
  • Underfloor heating
  • Unit ventilators
  • VAV reheat

Advantages

  • Sturday valve body with reasonable structure design, and best material to be used
No. Ours Normal products
Valve shaft seal Quadruple seals Dual seals
Nut seal Auto super anaerobic glue coating, Consistent torque tightening Manual anaerobic glue, unevenly, non consistent torque tightening
Seal between valve body and housing Seal groove none
Torque Smoothly and light Heavy, non consistently
Drainage Yes none

Technical data

Material brass, stainless steel, SS304, 316
Operation pressure PN16
Type mini motorised ball valve
Operate Pressure (Mpa) PN10
Torque (NM) 2
Dia range DN15-40
Open/close (S) <13s depends on actuator motor
Work volt. (V) DC3-6V, DC12V, AC220V
Media temp (℃) 0-90 / 200
Control automatic motor actuator
