450mA Zone Valve Motor 2 Way DC2.5V Ball Valve Electric Actuator
450mA Zone Valve Motor 2 Way DC2.5V Ball Valve Electric Actuator
450mA Zone Valve Motor 2 Way DC2.5V Ball Valve Electric Actuator
450mA Zone Valve Motor 2 Way DC2.5V Ball Valve Electric Actuator
Specifications
Brand Name :
Runpaq
Model Number :
K29
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
carton
Normal voltage :
Lithium battery DC2.5V-5V
Application :
open / close zone valve
Empty run current :
<25 mA (23 C) (motor #300)
Current at full loading :
about 450 mA
Motor :
DC2.5V #300 motor
Push force :
15 kg
Open / close time :
about 60 s
Reduction ratio :
1000 : 1
Protection :
IP67
Model :
K29
Description

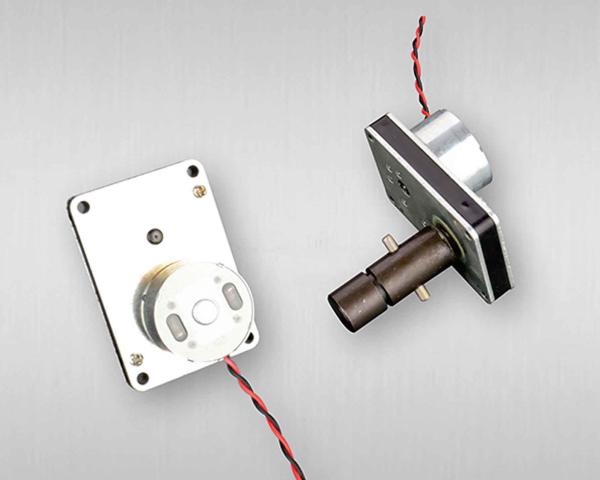

2 way ball valve electric actuator, zone valve motor actuator

Product description

The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.


Technical data-Model K29
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <450 mA (motor #300)
4. Torque:15 kg
5. Open/close time: about 60 s for 6mm stroke distance at empty run
6. Velocity reduction ratio: 1000:1
7. Protection: 0

Wiring definition

No Color of wire Definition
4 black positive (+)
5 red negative (-)

Production overview
450mA Zone Valve Motor 2 Way DC2.5V Ball Valve Electric Actuator450mA Zone Valve Motor 2 Way DC2.5V Ball Valve Electric Actuator450mA Zone Valve Motor 2 Way DC2.5V Ball Valve Electric Actuator
