DC5V Motorized Ball Valve Two Way Thread Port For Underfloor Heating
DC5V Motorized Ball Valve Two Way Thread Port For Underfloor Heating
DC5V Motorized Ball Valve Two Way Thread Port For Underfloor Heating
DC5V Motorized Ball Valve Two Way Thread Port For Underfloor Heating
Specifications
Brand Name :
Runpaq
Model Number :
8064-1012
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Payment Terms :
L/C, T/T, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
box + maste carton + pallet
Pressure :
PN16 / 16 bar / 1.6 Mpa / 232 psi
Port of connect :
Female Thread, male thread, Male-female thread
Material of construction :
SS304, brass,
Product name :
3 way heating valves
Life cycle :
>100,000 times
Usage :
underfloor heating system, hydronic heating system, HVAC
Temperature of media :
Medium temperature, normal temperature, high temperature, low temperature
Media :
water, oil, 50% glycol, steam
Description

dC5V motorized ball valve, two way thread port, thermal sensor

Product Description

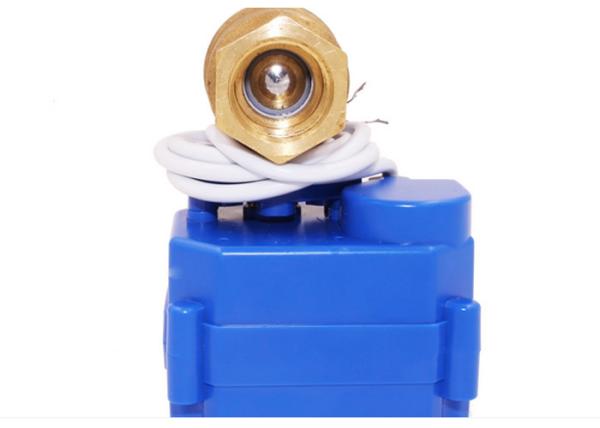

The DC5V mini motorized ball valve, are made of brass or stainless steel SS304. It's widely used in the zone control, HVAC, water utility, three thread ports or two way ball valve. It's with optional leak detection, and holes for thermal sensor RTD, pressure sensor, temperature sensor. The operation pressure is PN10 or PN16.

Application

  • HVAC system heating, ventilation, air conditioning
  • Heating system
  • Baseboard/radiant heating
  • Convectors
  • Fan coil units
  • Underfloor heating
  • Unit ventilators
  • VAV reheat

Advantages

  • Sturday valve body with reasonable structure design, and best material to be used

DC5V Motorized Ball Valve Two Way Thread Port For Underfloor Heating

No Name Material Advantage
1. O-ring

Import
fluoro rubber (green)

 Resistance to high temperature, oil, corrosion, chemicals, Work temp.: —30℃+280℃.Quadruple seals, minimize the risk of leakage.
2. Drainage Drain just in case leakage happens
4 0-ring EPDM (red) Between nut and valve body, extra external leak proof, reduce the possibility of internal leak
8. Ball Brass or SS304 Finely polished, rack nickel plating (not barrel plating), smooth surface, improved torque performance
9. Water proof G Avoid water into housing, seal between valve body and valve housing

DC5V Motorized Ball Valve Two Way Thread Port For Underfloor Heating

No Name Material Advantages
5. Wall thickness 2.0mm, PN20
6. Teflon washer Import teflon

1. Import teflon tube, numerical processing to perfectly match with ball surface
2. Minimal deformation, polish surface, wearable
7 0-ring EPDM

1. Good elasticity, as buffer after Teflon washer to improve seal effect
2. Reasonable structure design, ensures perfect holding margin


DC5V Motorized Ball Valve Two Way Thread Port For Underfloor Heating
