DC2.5V 1.8NM Geared Synchronous Motor For Mini Motorized Ball Valve 1/2
DC2.5V 1.8NM Geared Synchronous Motor For Mini Motorized Ball Valve 1/2
DC2.5V 1.8NM Geared Synchronous Motor For Mini Motorized Ball Valve 1/2
DC2.5V 1.8NM Geared Synchronous Motor For Mini Motorized Ball Valve 1/2
Specifications
Brand Name :
Runpaq
Model Number :
K19
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
carton
Normal voltage :
3.6VDC
Range of voltage :
DC2.5V - 5V
Empty run current :
<25 mA (23 C) by motor #320
Current at full loading :
about 550 mA
Motor :
DC5V #320 motor
Torque :
1.8 NM (2000:1)
Open / close time :
< 10 S (1400:1)
Reduction ratio :
2000 : 1 (For DN15 , DN20)
Product name :
DC motor actuator for water meter
Model :
K19
Description

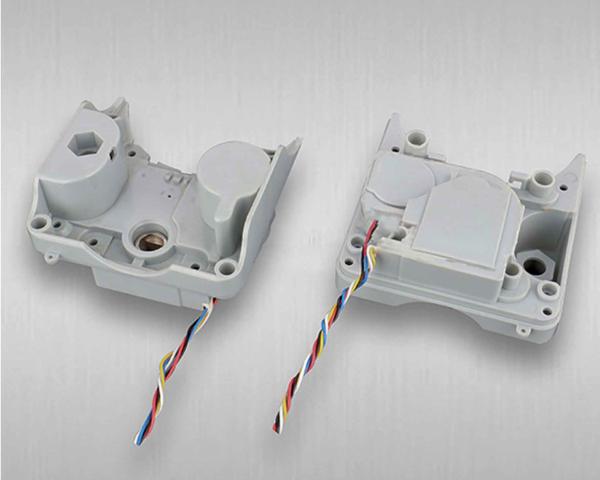

DC2.5V, 1.8NM actuator motor for mini motorized ball valve 1/2"

Product description

The water flow control or heat control in water utility, HVAC, such as mini motorized ball valve , smart water meter with ball valve, zone valve, heat control, need be made through a mini motorized ball valve. Our DC2.5 ball valve motor actuator, are designed for the ball valve diameter range: DN15, DN20, DN25, DN32, DN40, up to DN80.The torque range from 1.8NM to 4.5 NM.


Technical data-Model K19
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <550 mA (motor #320)
4. Torque: >1.8 NM (2000:1)
5. Open/close time: <10S (2000:1)
6. Velocity reduction ratio: (2000:1)
7. Protection: IP67

Wiring definition

No Color of wire Definition
1 blue on position signal, valve open
2 white on position signal, public
3 yellow on position signal, valve close
4 black positive (+)
5 red negative (-)

Production overview
DC2.5V 1.8NM Geared Synchronous Motor For Mini Motorized Ball Valve 1/2DC2.5V 1.8NM Geared Synchronous Motor For Mini Motorized Ball Valve 1/2DC2.5V 1.8NM Geared Synchronous Motor For Mini Motorized Ball Valve 1/2
