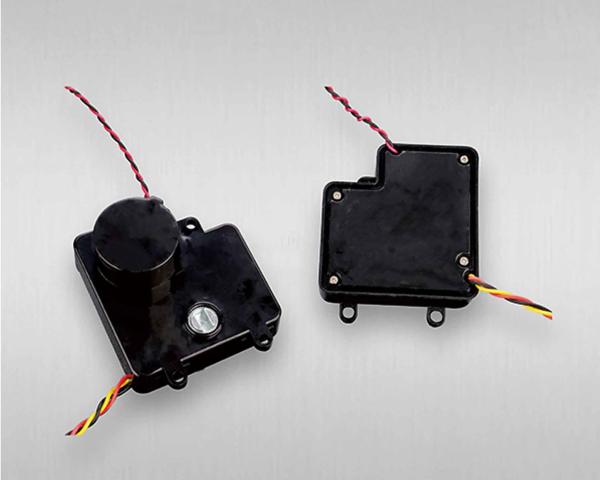

2 Way Motorized Electric Ball Valve Actuator DC5V 2NM For HVAC
2 Way Motorized Electric Ball Valve Actuator DC5V 2NM For HVAC
2 Way Motorized Electric Ball Valve Actuator DC5V 2NM For HVAC
2 Way Motorized Electric Ball Valve Actuator DC5V 2NM For HVAC
Specifications
Brand Name :
Runpaq
Model Number :
K34
Certification :
NONE
Place of Origin :
China
MOQ :
1000 pieces
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200000 sets/month
Delivery Time :
15-21 days
Packaging Details :
carton
Normal voltage :
Lithium battery DC2.5V-5VDC
Application :
open / close ball valve
Empty run current :
<25 mA (23 C) (motor #300)
Current at full loading :
about 450 mA
Motor :
DC2.5V #300 motor
Torque :
2.5 NM (3500:1)
Open / close time :
< 13 S (3500:1)
Reduction ratio :
3500 : 1 (For DN15 - 25 ball valve);
Model :
K34
Description

2 way motorized brass ball valve with dC5V actuator motor, 2NM

Product description

Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.


Technical data-Model K33
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67

Wiring definition

No Color of wire Definition
1 blue on position signal, valve open
2 white on position signal, public
3 yellow on position signal, valve close
4 black positive (+)
5 red negative (-)

Production overview
2 Way Motorized Electric Ball Valve Actuator DC5V 2NM For HVAC2 Way Motorized Electric Ball Valve Actuator DC5V 2NM For HVAC2 Way Motorized Electric Ball Valve Actuator DC5V 2NM For HVAC
