Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
Specifications
Brand Name :
ACHIEVE
Model Number :
LT3500
Place of Origin :
Changsha, China
MOQ :
1
Price :
$30,000.00 - $39,999.00/ Unit
Payment Terms :
Western Union, MoneyGram
Supply Ability :
10 units per month
Delivery Time :
20 working days
Description

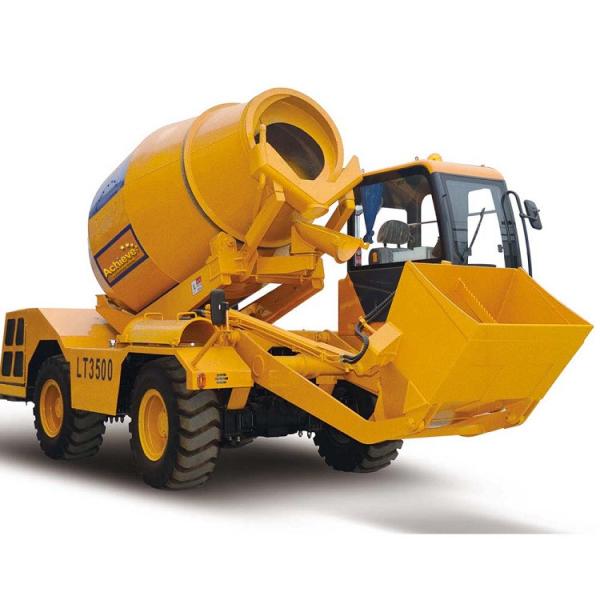

3.5m3 Capacity Self Loading Mobile Concrete Mixer With Diesel Engine

DRUM CAPACITY 5.3m3
OUTPUT 3.5m3
FILLING RATIO 66%
DRUM STEERING slewing 300° on horizontal direction, discharging height 1.8m to the four sides of the vehicle
PRODUCTIVITY up to 4 batches per hour.14 m3 /hour
ENGINE YUCHAI YC4125Z,diesel,water-cooled, 4 cylinders. Rated power 92kw/2200rpm
TRANSMISSION full hydraulic driving. 4 drive, 4 steering.
SLOPE 30%
SPEED Low: 0-10km/h, high: 0-25km/h
DRIVING SEAT Front cab on side of loading shovel. ROPS-FOPS type complete
HYDRAULIC SYSTEM 2 variable pumps for hydraulic transmission and drum rotation.2 gear pumps for work
JOYMIX All hydraulic functions of shovel controlled by a single - fully servo controlled Joystick.
SHOVEL 650L, complete with hydraulic opening gate
CHUTE Slewing. Fitted with two pins easily detachable to increase the discharge height.
WATER SYSTEM Self contained, hydraulic driven water pump, high pressure water pump & washing gun
BRAKE Wet brake, dual independent hydraulic circuits.
TYRES construction tyres 16/70-20
ELECTRIC SYSTEM 24 volt.
TANKS Water:2x350L, diesel:165L, hydraulic oil:150L
WEIGHT 8600KGS
OVERALL DIMENSTION Length:7.2m width:2.5m height:3.3m
WHEEL BASE 2.3m

Diesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kwDiesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kwDiesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kwDiesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kwDiesel Engine Mobile Concrete Mixer 3.5m3 Capacity Self Loading YC4125Z 92kw
