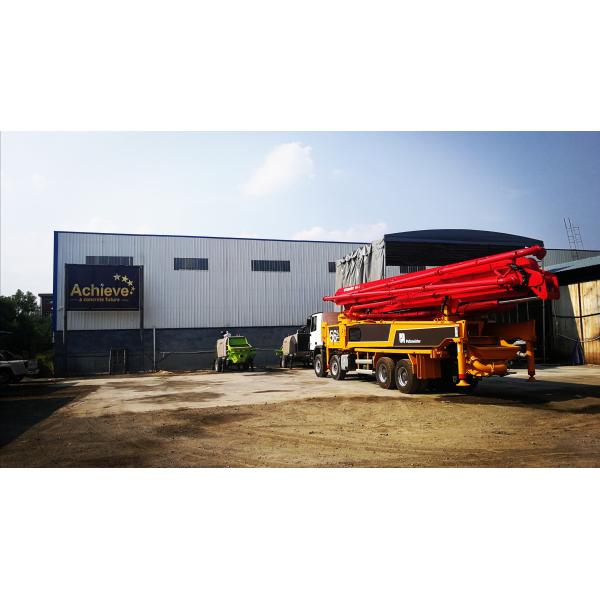

ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
ZOOMLION 52X-6RZ Truck Mounted Concrete Pump Reconditioned
Specifications
Place of Origin :
Hunan, China
Brand Name :
ZOOMLION
Supply Ability :
10 units per month
Price :
Negotiable
Model Number :
52X-6RZ
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
30 DAYS
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty :
3 Months
After Warranty Service :
Video technical support, Online support, Spare parts
Description

ZOOMLION Truck Mounted Concrete Pump 52X-6RZ

• Agile placing boom with 6 arms with unfolding height 10.9m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.

• Compact in design, 52m pump mounted on a 4-axle truck.

• Efficient pump unit, ideal for long time use.

• Agile placing boom with 6 arms with unfolding height 10.9m only, which gives a wide work range.

• One side lateral support enables to work in narrow sites.

• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.

• Various configurations and high quality components.

• Damping technology boom.

• Boom stabilization control.

• Multilingual man-machine interface system.

• PWM+CAN dual communication mode remote control.

Main Parameters

Pump Unit Max. Output 180 m3/h
Max. Concrete Output Pressure 9 MPa
Rated Working Pressure 35 Mpa
Pumping Frequency 27 min-1
Hopper Capacity 600 L
Filling Height 1540 mm
Hydraulic System Type Closed Loop
Distribution Valve S valve
Oil Cylinder Dia.*Stroke ψ130*2100 mm
Concrete Cylinder Dia.*Stroke ψ 230*2100 mm
Hydraulic Oil Cooling Wind cooling
Max. Aggregatte Dimension 40 m
Boom Section Placing Depth 52 m
Max. Horizontal Distance 48 m
Max. Placing Depth 37.6 m
Slewing Angle ±270°
Boom Number 6
The Length of Boom Section 10410/9120/8690/9680/6600/3500 mm
Sections Folding Angle 90°/180°/180°/240°/195°/210°
Pipe Diameter 125 mm
End Hose Length 3000 mm
Min. Height of Opening Placing Boom 10900 mm
Outriggers Span(front*rear*side) 9300*11975*10422 mm
