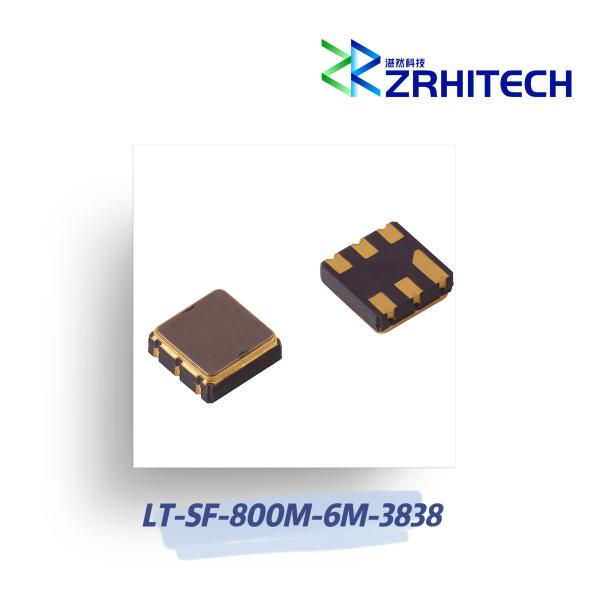

800MHz RF SAW Band Pass Filter
800MHz RF SAW Band Pass Filter
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-SF-800M-6M-3838
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Product name :
LT-SF series RF SAW Filter
Application :
Wireless Communication
Features :
High Rejection
Material :
Aluminum
Temperature :
-40~85℃
Frequency range :
797 to 803 MHz
Color :
Silver
Low Insertion Loss :
2.0 to 3.0 dB
Description

800MHz LT-SF series RF SAW Band Pass Filter

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Sourface Mount Package

· Small Size

· Low Cost

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SF-800M-6M-3838 from ZR is a Band Pass Filter with Frequency 797 to 803 MHz, Bandwidth 6 MHz, Center Frequency 800 MHz,Insertion Loss 2 to 3 dB, Rejection 17 to40 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-800M-6M-3838 can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items Specification Conditions
Part Number LT-SF-800M-6M-3838
Center Frequency 800MHz
Insertion Loss -
Insertion Loss(797.00~803.00MHz) 3.0dB Max.; 2.0dB Typ.
Ripple in Bandwidth 1.0dB Max.; 0.7dB Typ.
Group Delay Variation 30ns Max.; 10ns Typ.
Input VSWR 2.0 Max.; 1.5 Typ.
Output VSWR 2.0 Max.; 1.5 Typ.
Attenuation 40dB Min.@DC-780MHz
33dB Min.@820.00~1000.00MHz
17dB Min.@1000.00~1800.00MHz
40dB Min.@1800.00~2500.00MHz
35dB Min.@2500.00~3000.00MHz
Dimension 3.8x3.8x1.35mm
Note: for custom specs, please contact us directly.

Outline Drawing (Unit: mm):

800MHz RF SAW Band Pass Filter
