0.8 To 20 GHz SP6T Reflective PIN Diode Switch
0.8 To 20 GHz SP6T Reflective PIN Diode Switch
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-SW6TR-008200S
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Product name :
LT-SW series PIN Doide Switch
Application :
Wireless Communication
Material :
Aluminum
Temperature :
-40~85℃
Frequency range :
0.8 to 20 GHz
Color :
Silver
Description

0.8 to 20 GHz LT-SW Series PIN Diode Switch

Quick Detail:

· Aluminum Housing

· Customizable Frequency

· -40℃~+85℃ Operating Temperature

· Fast Switching Time 100ns

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-SW6TR-008200S from ZR is a Reflective PIN Diode Switch with Frequency 0.8 to 20 GHz, Isolation 60 dB, Switching Speed 100ns. Power Supply with bias +5V/300mA and -5V/50mA. More details for LT-SW6TR-008200S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items Specification Conditions
Part Number LT-SW6TR-008200S
Type Reflective
Configuration SP6T
Frequency Range 0.8 to 20 GHz
Insertion Loss 4.6 dB
Isolation 60 dB
Switching Speed 100 ns
Control PIN
Input / Output VSWR 2.0:1
Input Power 1 W
Power Supply(Bias) +5V / 300mA
-5V / 50mA
Dimension 78*24*10.20mm
Note: for custom specs, please contact us directly.

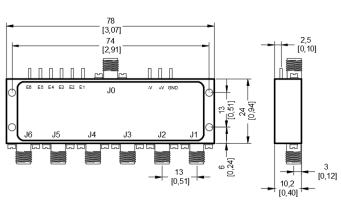

Outline Drawing (Unit: mm):

0.8 To 20 GHz SP6T Reflective PIN Diode Switch
