Surface Acoustic Wave Saw Resonators 433.870MHz To 433.970MH
Surface Acoustic Wave Saw Resonators 433.870MHz To 433.970MH
Surface Acoustic Wave Saw Resonators 433.870MHz To 433.970MH
Surface Acoustic Wave Saw Resonators 433.870MHz To 433.970MH
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-SR-433-2016(±50K)
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Description

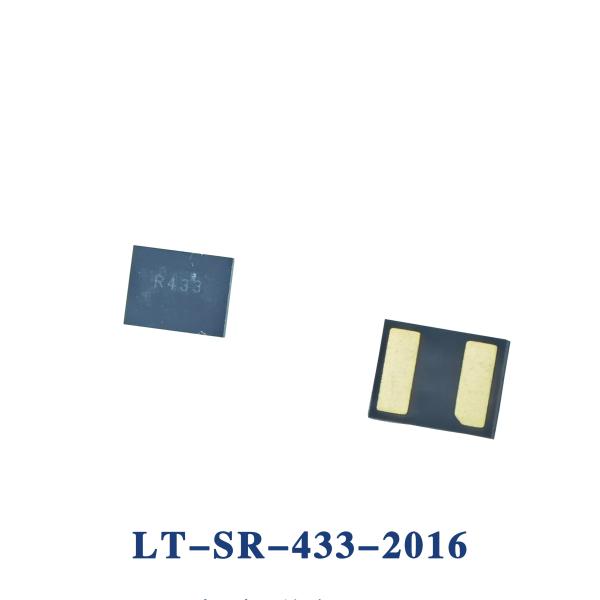

LT-SR-433-2016(±50K) LT-SR Series SAW Resonators with Frequency Range 433.870MHz to 433.970MH

433.870MHz to 433.970MHz LT-SR Series SAW Resonator

Quick Detail:

· Aluminum Housing

· -40℃~+85℃ Operating Temperature

· SMD Package

· DC Voltage: ±30V

· RF Power Dissipation: 10dBm

· CE, RoHS, REACH Compliant

· 1 Year Warranty

Description:

The LT-SR-433-2016(±50K) from ZR is a SAW Resonator with Frequency 433.870MHz to 433.970MHz, Centre Frequency 433.920MHz, Insertion Loss 1.3 to 2.1 dB, Quality Factor Loaded 12000. Tags: Surface Mount, SAW Resonator. More details for LT-SR-433-2016(±50K) can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Part Number : LT-SR-433-2016(±50K)
Item Unites Min. Typ. Max.
Center Frequency MHz 433.870 433.920 433.970
Insertion Loss dB 1.3 2.1
Quality Factor Unload Q 12000
50Ω Loaded Q 1500

Temperature

Stability

 Turnover Temperature ℃ 10 25 40
Freq.temp.Coefficient ppm/℃2 0.032
Frequency Aging ppm/yr ≤±10
DC. Insulation Resistance MΩ 1.0
RF Equivalent RLC Model Motional Resistance R1 Ω 12.196
Motional Inductance L1 μ H 183.82
Motional Capacitance C1 fF 0.733
Transducer Static Capacitance pF 2.23
Note: for custom specs, please contact us directly.





Outline Drawing (Unit: mm):

Surface Acoustic Wave Saw Resonators 433.870MHz To 433.970MH


Typical Frequency Response

Surface Acoustic Wave Saw Resonators 433.870MHz To 433.970MH
