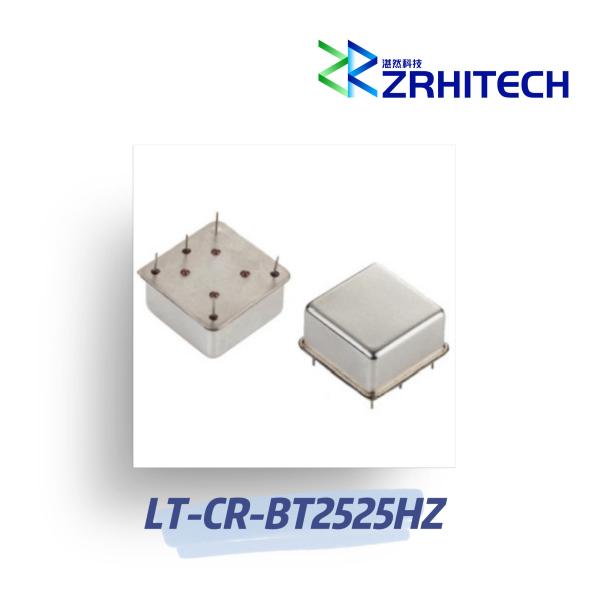

High Precision Low Phase Noise TCXO Oscillators In 50-156.25MHz 25×25mm Vibration Insensitive Aluminum
High Precision Low Phase Noise TCXO Oscillators In 50-156.25MHz 25×25mm Vibration Insensitive Aluminum
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-CR-BT2525HZ
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Product name :
LT-CR series temperature-compensated crystal oscillator
Application :
Satellite communication, military communication equipment, base station, test and measurement equipment
Features :
Three-stage bell temperature crystal oscillator, optional three-state control function, high precision, low phase noise, There are anti-overload products for choice, anti-overload > 30000g
Material :
Aluminum
Temperature :
-50℃ ~ +85℃
Frequency range :
50MHz~156.25MHz
Voltage :
3.3/5V
Color :
Silver
Description

50~156.25MHz 25×25mm, Vibration Insensitive, High Precision &Low Phase noise TCXO

Quick Detail:

· Aluminum housing

· 3.3/5V VDD options

· -50℃~85℃ operating temperature

· Small package

· High precision

· Low phase noise

· Optional three-state control function

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-CR-BT2020HZ is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.5ppm to ±2.0ppm over -50ºC to +85ºC across a supply voltage range of 3.3V / 5.0V. The bt2020h-z uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 25.4 mm x 25.4 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items specification Condition
Part Number LT-CR-BT2020HZ
Frequency Range 50MHz~156.25MHz
Operating Voltage(VDD) 3.3V / 5V
Operating Temperature -50℃~+85℃
Freq. Stability Vs. Temp. ±0.5ppm ~±2.0ppm -50℃~+85℃
Frequency Tolerance ±0.5ppm~±1.5ppm At shipment, nominal EFC, +25℃
Output Waveform Sine Wave
Voltage-controlled voltage 1.5V±1.0V
Absolute Pull Range
Phase Noise <-145dBc@50~100MHz @1kHz
<-140dBc@50~100MHz@102.4~122.88MHz
<-135dBc@50~100MHz@102.4~122.88MHz@125~156.25MHz

<-130dBc@50~100MHz@102.4~122.88M

Hz@125~156.25MHz
Overload Resistance
Dimension 25.4 mm x 25.4 mm

Outline Drawing (Unit: mm):

High Precision Low Phase Noise TCXO Oscillators In 50-156.25MHz 25×25mm Vibration Insensitive Aluminum
