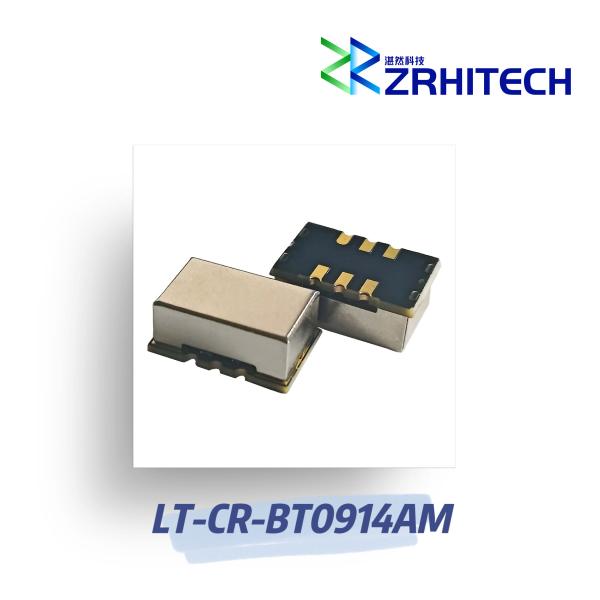

9.3*14.6mm Silver TCXO Frequency Range 50MHz-156.25MHz Ultra Stable And Low Phase Noise
9.3*14.6mm Silver TCXO Frequency Range 50MHz-156.25MHz Ultra Stable And Low Phase Noise
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-CR-BT0914AM
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
4 weeks
Packaging Details :
carton packing
Product name :
LT-CR series temperature-compensated crystal oscillator
Application :
Satellite communication, military communication equipment, base station, test and measurement equipment
Features :
Three-stage bell temperature crystal oscillator, optional three-state control function, high precision, low phase noise, There are anti-overload products for choice, anti-overload > 30000g
Material :
Aluminum
Temperature :
-40℃ ~ +85℃
Frequency range :
50MHz~156.25MHz
Voltage :
3.3/5V
Color :
Silver
Description

50MHz to 156.25MHz 9.3*14.6mm, Ultra Stable, Low Phase Noise TCXO

Quick Detail:

· Aluminum housing

· 3.3/5V VDD options

· -40℃~85℃ operating temperature

· Small package

· High precision

· Low phase noise

· Optional three-state control function

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-CR-BT0914AM is the newest addition to ZR’s line of TCXOs. The standard part offers an ultra-tight stability of ±0.5ppm to ±3.0ppm over -40ºC to +85ºC across a supply voltage range of 3.3V/5.0V. The LT-CR-bt0914a(M) uses a high refresh rate, or frequency calibration rate, to maintain a linear frequency output during temperature compensation. The 9.3 mm x 14.6 mm ceramic package and options for 1,000- or 3,000-piece reels make these components ideal for satellite communication, military communication equipment, base station, test and measurement equipment.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items specification Condition
Part Number LT-CR-bt0914a(M)
Frequency Range 50MHz~156.25MHz
Operating Voltage(VCC) 3.3V/5.0V
Operating Temperature -40℃~+85℃
Freq. Stability Vs. Temp. ±0.5ppm ~±3.0ppm -40℃~+85℃
Frequency Tolerance ±0.5ppm~±1.0ppm At shipment, nominal EFC, +25℃
Output Waveform LVCMOS,Sine wave
Voltage-controlled voltage 1.5V±1.5V
Absolute Pull Range ±5~±12ppm
Phase Noise

<-75dBc@10Hz

<-110dBc@100Hz

<-140dBc@1kHz

<-155dBc@10kHz

<-155dBc@10kHz

@100MHz

At +25℃
Overload Resistance
Dimension 9.3*14.6mm

Outline Drawing (Unit: mm):
