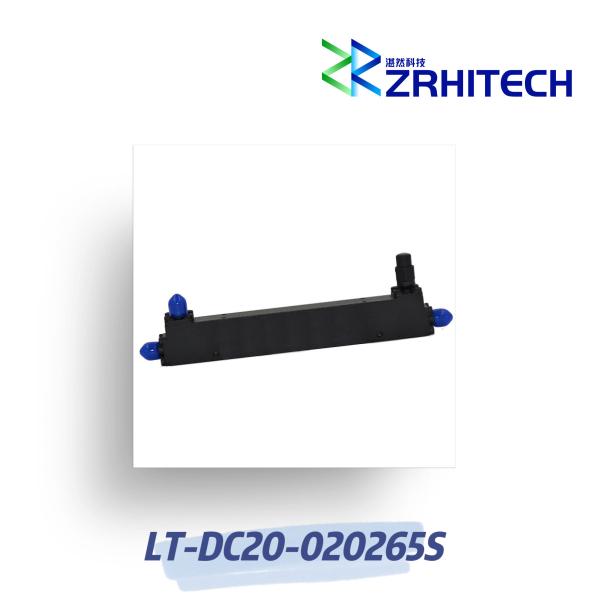

2 to 26.5 GHz 20 Watts LT-DC Series 20dB Directional Coupler
2 to 26.5 GHz 20 Watts LT-DC Series 20dB Directional Coupler
Specifications
Brand Name :
ZR Hi-Tech
Model Number :
LT-DC20-020265S
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T,D/A,D/P
Delivery Time :
4 weeks
Packaging Details :
carton packing
Description

2 to 26.5 GHz 20dB Directional Coupler

Quick Detail:

· 20dB Directional Coupler

· Directivity > 14 dB

· 2 to 26.5 GHz Frequency Range

· VSWR < 1.5:1

· Coupling 20±0.5 dB

· Max Power 20 Watts(CW)

· CE, RoHS, REACH compliant

· 1 Year Warranty

Description:

The LT-DC20-020265S from ZR is a 20dB Directional Coupler that operates from 2 to 26.5 GHz and can handle up to 20 Watt (CW) with 14 dB directivity and 1.5:1 VSWR,The package interface uses SMA Female connectors and is REACH and RoHS compliant.More details for LT-DC20-020265S can be seen below.

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Items

Specification

Conditions

Part Number

LT-DC20-020265S

Frequency Range

2 to 26.5 GHz

Coupling

20±0.5 dB

Impedance

50 Ohms

Main Line VSWR

1.5:1 Max.

Coupling VSWR

1.5:1 Max.

Insertion Loss

1.0 dB Max.

Frequency Balance

1.0 dB Max.

Directivity

14 dB Min.

Input Power

20 W

Connectors

SMA Female

Weight

80 g

Dimension

57.2x17.8x12.7 mm

Note: for custom specs, please contact us directly.

Outline Drawing (Unit: mm):
