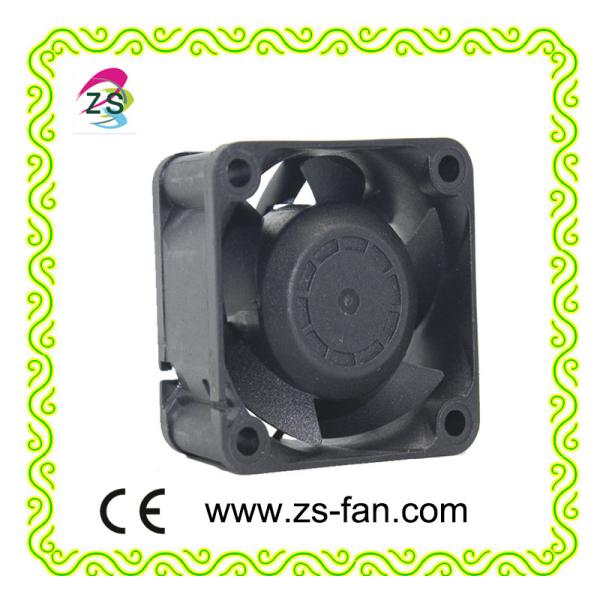

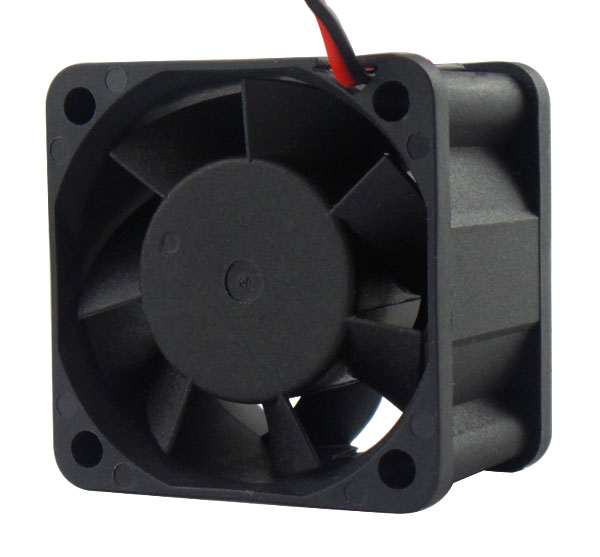

high torque brushless dc fan 40x40x28mm 5v silent fans,40mm axial fan
high torque brushless dc fan 40x40x28mm 5v silent fans,40mm axial fan
high torque brushless dc fan 40x40x28mm 5v silent fans,40mm axial fan
high torque brushless dc fan 40x40x28mm 5v silent fans,40mm axial fan
Specifications
Place of Origin :
China
Brand Name :
ZS
Model Number :
ZS
Certification :
CE/RoHS/UL
Price :
$0.82-$3.25
Packaging Details :
standard export packing or based on customer's special requirement
Delivery Time :
7-10 days
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000,000pcs
MOQ :
100pcs
Description

high torque brushless dc fan 40x40x28mm 5v silent fans,40mm axial fan

Material:

Frame and Impeller: Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC 250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range:-10ºC~+70ºC(Operating)

-40ºC~+70ºC(Storage)

high torque brushless dc fan 40x40x28mm 5v silent fans,40mm axial fan

Specification:

* this is normal specification, for the speed, current, bearing type, connector, function, waterproof level, wires etc all can be customized.

Model Bearing Type Rated Voltage operation Voltage Current Speed Air Flow Pressure Noise Weight
VDC VDC A RPM CFM mmH2O dBA g
4028 Sleeve/ Ball 24 21.8~26.4 0.13 9000 13.3 9.51 38.2 35
0.08 7000 10.4 7.4 33.5
0.05 5000 7.43 5.28 25.6
Sleeve/ Ball 12 10.8~13.2 0.18 9000 13.3 9.51 38.2
0.15 7000 10.4 7.4 33.5
0.12 5000 7.43 5.28 25.6

Functions:


PWM (Pulse Width Modulation)
FG (Frequency Generator / Tachometer)
RD (Rotation Detector)
AR (Auto Restart)
TC (Thermal Control)

Protection: waterproof Up to IP 68

*** 2 lead wires, 3 lead wires,4 lead wires for your choice

Others:

1. Application


1.Home appliance
2.Kitchen
3.Car industry
4.Telecom
5.Medical Equipment
6.UPS Power
7.LED Lighting
8.Computer Case
9.CPU
10.Safty Equipment
11.Office Electrics
12.SUP Power
13.Communication
14.Printing Equipment
15.Projector
16.Digital Photoelectric
17.Humidifier/Air Purifier
18.Mining machine

...
2 Shipping
1. Be delivered by express (UPS, FedEx, DHL, TNT).
2. Be shipped by vessel or by air or as customers'requirement.

Advantages:

1. Delivery lead time: 7-10 work days

2. Reliable quality as well as Competitive price

3. Function: FG,RD,PWM , Automatic Restart can be choice

4. Waterproof grade: IPX1~IPX8, such as IP55,IP67,IP68

5. OEM&ODM

6. Certificate: CE/RoHS/UL/CCC

7. Life Expectancy: Dual Ball Bearing 50000 hours ,Sleeve Bearing 3000 hours

8. Dimension: 20mm-280mm Thickness: 7mm-38mm

9. Best service by our sales and engineers
