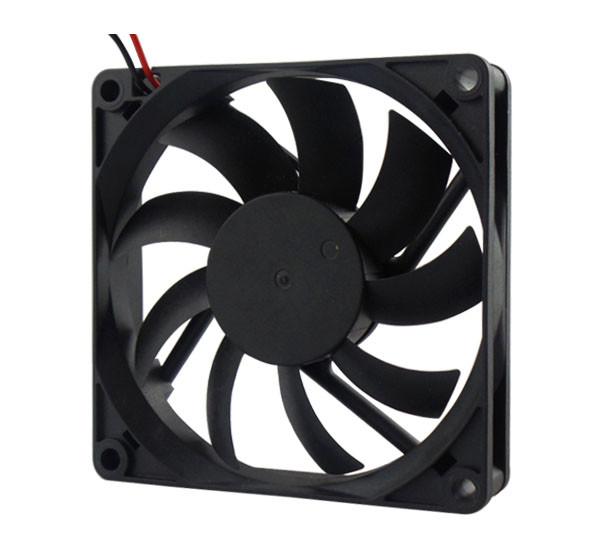

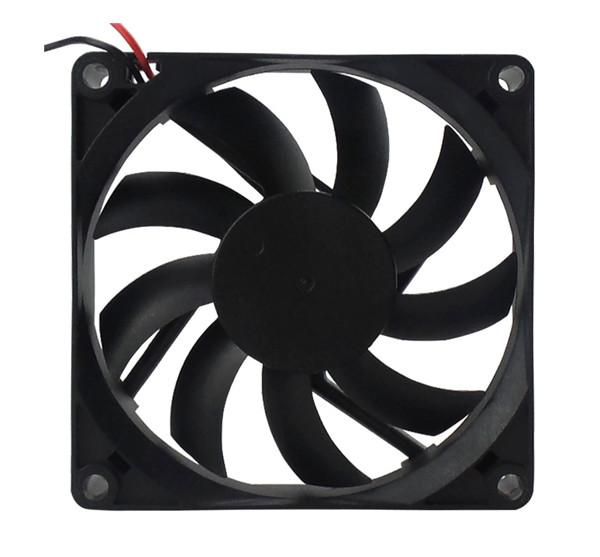

12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan
12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan
12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan
12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan
12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan
12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan
Specifications
Place of Origin :
china
Model Number :
ZS
Certification :
UL,ROHS,CE,ISO9001
Price :
$0.47-$2.89
Packaging Details :
standard export packing or based on customer's special requirement
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
1000,000pcs
MOQ :
100pcs
Brand Name :
ZS
Description

12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

Material:

Frame and Impeller: Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC 250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range:-10ºC~+70ºC(Operating)

-40ºC~+70ºC(Storage)

12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

Specification:

* this is normal specification, for the speed, current, bearing type, connector, function, waterproof level, wires etc all can be customized.

Model Bearing Rated Operation Current Input Speed Air Flow Static Niose Weight
System Voltage Voltage power Pressure Level
(V) (V) (A) (W) (RPM) (CFM) (mm-H2O) (dB-A) (g)
(型号) (培林) (电压) (电压范围) (电流) (功率) (转速) (风量) (静压) (噪音) (重量)
8015 12 10.8～13.2 0.17 2.04 3000 30.16 2.38 2.38 57
Sleeve 0.12 1.44 2500 24.89 1.69 1.69 57
0.08 0.96 2000 18.99 1.03 1.03 57
0.17 2.04 3000 30.16 2.38 2.38 57
Ball 0.12 1.44 2500 24.89 1.69 1.69 57
0.08 0.96 2000 18.99 1.03 1.03 57
24 21.6～26.4 0.11 2.64 3000 30.16 2.38 2.38 57
Sleeve 0.08 1.92 2500 24.89 1.69 1.69 57
0.05 1.20 2000 18.99 1.03 1.03 57
0.11 2.64 3000 30.16 2.38 2.38 57
Ball 0.08 1.92 2500 24.89 1.69 1.69 57
0.05 1.20 2000 18.99 1.03 1.03 57

Functions:


PWM (Pulse Width Modulation)
FG (Frequency Generator / Tachometer)
RD (Rotation Detector)
AR (Auto Restart)
TC (Thermal Control)

Protection: waterproof Up to IP 68

*** 2 lead wires, 3 lead wires,4 lead wires for your choice

Others:

1. Application


1.Home appliance
2.Kitchen
3.Car industry
4.Telecom
5.Medical Equipment
6.UPS Power
7.LED Lighting
8.Computer Case
9.CPU
10.Safty Equipment
11.Office Electrics
12.SUP Power
13.Communication
14.Printing Equipment
15.Projector
16.Digital Photoelectric
17.Humidifier/Air Purifier
18.Mining machine

...
2 Shipping
1. Be delivered by express (UPS, FedEx, DHL, TNT).
2. Be shipped by vessel or by air or as customers'requirement.

Advantages:

1. Delivery lead time: 7-10 work days

2. Reliable quality as well as Competitive price

3. Function: FG,RD,PWM , Automatic Restart can be choice

4. Waterproof grade: IPX1~IPX8, such as IP55,IP67,IP68

5. OEM&ODM

6. Certificate: CE/RoHS/UL/CCC

7. Life Expectancy: Dual Ball Bearing 50000 hours ,Sleeve Bearing 3000 hours

8. Dimension: 20mm-280mm Thickness: 7mm-38mm

9. Best service by our sales and engineers

Our products

12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

Our Factory

12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

Mobile: +86-15975566061

Skype: sunny.zhou67

Email: zs-fan@zscooling.com; kuhaersmy@163.com
