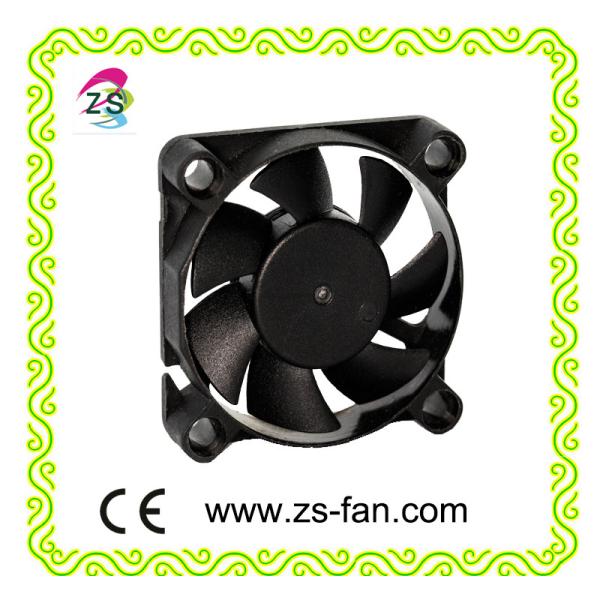

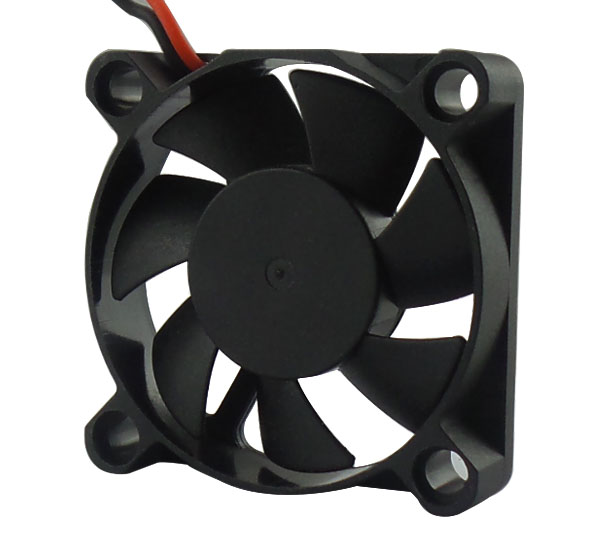

5v mini cooling fan 4510 dc fan plastic 45x45x10mm CE,UL,ROHS axial fan
5v mini cooling fan 4510 dc fan plastic 45x45x10mm CE,UL,ROHS axial fan
5v mini cooling fan 4510 dc fan plastic 45x45x10mm CE,UL,ROHS axial fan
5v mini cooling fan 4510 dc fan plastic 45x45x10mm CE,UL,ROHS axial fan
Specifications
Place of Origin :
China
Brand Name :
ZS
Model Number :
ZS
Certification :
CE/RoHS/UL
Price :
$0.45-$2.69
Packaging Details :
standard export packing or based on customer's special requirement
Delivery Time :
7-10 days
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000,000pcs
MOQ :
100pcs
Description

Size:45*45*10MM

Material:

Frame and Impeller: Thermal Plastic UL 94-0
Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
Insulation Resistance: 10MΩ Or Over With a DC 250V Megger
Dielectric Withstand Voltage: AC500V 1S
Allowable Ambient Temperature Range:-10ºC~+70ºC(Operating)

-40ºC~+70ºC(Storage)

5v mini cooling fan 4510 dc fan plastic 45x45x10mm CE,UL,ROHS axial fan

Specification:

* this is normal specification, for the speed, current, bearing type, connector, function, waterproof level, wires etc all can be customized.

Model

型号

Bearing Type

轴承类型

Rated Voltage

额定电压

operation Voltage

启动电压

Current

电流

Speed

转速

Air Flow

风量

Pressure

风压

Noise

噪音

Weight

重量
VDC VDC A RPM CFM mmH2O dBA g
4510 Sleeve/ Ball 24 21.8~26.4 0.1 6500 7.42 2.55 33.9 15
0.07 5500 6.28 2.16 30.38
0.05 4000 4.57 1.57 22.1
Sleeve/ Ball 12 10.8~13.2 0.12 6500 7.42 2.55 35.91
0.1 5500 6.28 2.16 30.38
0.08 4000 4.57 1.57 22.1
Sleeve/ Ball 5 4.5~5.5 0.23 6500 7.42 2.55 33.9
0.16 5500 6.28 2.16 30.38
0.12 4000 4.57 1.57 22.1

Functions:


PWM (Pulse Width Modulation)
FG (Frequency Generator / Tachometer)
RD (Rotation Detector)
AR (Auto Restart)
TC (Thermal Control)

Protection: Waterproof up to IP 68

*** 2 lead wires, 3 lead wires,4 lead wires for your choice

Others:

1. Application


1.Home appliance
2.Kitchen
3.Car industry
4.Telecom
5.Medical Equipment
6.UPS Power
7.LED Lighting
8.Computer Case
9.CPU
10.Safty Equipment
11.Office Electrics
12.SUP Power
13.Communication
14.Printing Equipment
15.Projector
16.Digital Photoelectric
17.Humidifier/Air Purifier
18.Mining machine

...
2. OEM/ODM Acceptable
3. Sample Service Sample Can Be free,But You're Suggestsd Paying For Freight.
4. Quality Assurance 12 Months
5. Lead time
1. Samples within 4-7 days
2. Mass production within 10-25 days
3. If do the waterproof fan need 1 week more
6. Shipping
1. Be delivered by express (UPS, FedEx, DHL, TNT).
2. Be shipped by vessel or by air or as customers'requirement.

Company profile:


- Producing cooling fan since 2000.

- DC/AC/EC/Blower cooling fan manufacturing, sales and service enterprise.

- Certificate:UL,CE, ROHS, CCC, ISO9001.

- Our fan ranges from 15mm to 254mm,including ball bearing,hydraulic bearing and sleeve bearing type.
