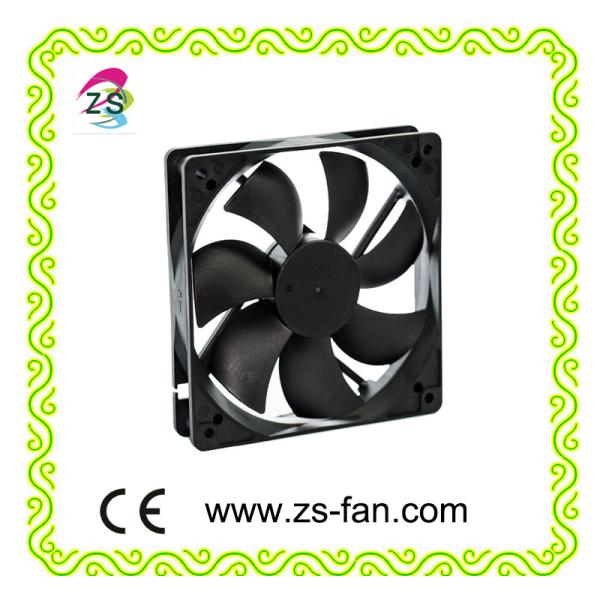

120mm axial fan,120*120*25mm 12V 24V 48V IP67 waterproof dc fan
120mm axial fan,120*120*25mm 12V 24V 48V IP67 waterproof dc fan
Specifications
Place of Origin :
china
Brand Name :
ZS
Certification :
UL,ROHS,CE,ISO9001
Model Number :
12025
MOQ :
100pcs
Price :
$0.67-$4.49
Packaging Details :
standard export packing or based on customer's special requirement
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
1000,000pcs
Description

Size:120x120x25mm

Application:
Other
 Type:
DC Fan
 Heatsink Material:
Copper & Aluminum
Brand Name: others Model Number: 12025 Place of Origin:
GUA,Guangdong China (Mainland)
Dimensions:
120*120*25mm
 Lifetime:
70,000hours for ball bearing and 30,000hour year for seleeve bearing
 Heastink material:
copper & aluminum
Impeller:
PBT
 Terminal:
yes/no
 Square wave output:
yes/no
MOQ:
100 pcs
 Wire number:
4-wire 3-wire or 2-wire

120mm axial fan,120*120*25mm 12V 24V 48V IP67 waterproof dc fan

Model Bearing Rated Operation Current Input Speed Air Flow Static Niose Weight
System Voltage Voltage power Pressure Level
(V) (V) (A) (W) (RPM) (CFM) (mm-H2O) (dB-A) (g)
(型号) (培林) (电压) (电压范围) (电流) (功率) (转速) (风量) (静压) (噪音) (重量)
12025 12 10.8～13.2 0.30 3.60 2000 79.75 2.57 32.48 148
Sleeve 0.25 3.00 1700 66.05 2.01 28.00 148
0.20 2.40 1400 52.58 1.37 24.43 148
0.30 2.41 2000 79.75 2.57 32.48 148
Ball 0.25 2.42 1700 66.05 2.01 28.00 148
0.20 2.43 1400 52.58 1.37 24.43 148
24 21.6～26.4 0.23 5.52 2000 79.75 2.57 32.48 148
Sleeve 0.18 4.32 1700 66.05 2.01 28.00 148
0.13 3.12 1400 52.58 1.37 24.43 148
0.23 5.52 2000 79.75 2.57 32.48 148
Ball 0.18 4.32 1700 66.05 2.01 28.00 148
0.13 3.12 1400 52.58 1.37 24.43

148

Advantages:

1. Delivery lead time: 7-10 work days

2. Reliable quality as well as Competitive price

3. Function: FG,RD,PWM , Automatic Restart can be choice

4. Waterproof grade: IPX1~IPX8, such as IP55,IP67,IP68

5. OEM&ODM

6. Certificate: CE/RoHS/UL/CCC

7. Life Expectancy: Dual Ball Bearing 50000 hours ,Sleeve Bearing 3000 hours

8. Dimension: 20mm-280mm Thickness: 7mm-38mm

9. Best service by our sales and engineers
