Vertical Smt Wire To Board Connector Wafer WTB Connector 1.5mm Pitch
Vertical Smt Wire To Board Connector Wafer WTB Connector 1.5mm Pitch
Vertical Smt Wire To Board Connector Wafer WTB Connector 1.5mm Pitch
Vertical Smt Wire To Board Connector Wafer WTB Connector 1.5mm Pitch
Specifications
Brand Name :
WINSHOR
Model Number :
WF15001-0XX-R00X01
Certification :
ROHS,SGS,ISO
Place of Origin :
China
MOQ :
Customize
Payment Terms :
T/T
Delivery Time :
1-3 weeks
Packaging Details :
Reel
Pitch :
1.5mm
Pins :
2-16PINS
Height :
5.0mm
HOUSING :
HIGH-TEMP THERMOPLASTIC UL94V-O,COLOR:NATURAL
TERMINAL :
COPPER ALLOY,PLATNG:GOLD FLASH
SMT :
Vertical Smt
Current rating :
1.0A
Temperature range :
-25C~85C
Description

1.5mm Pitch Wafer WTB Wire To Board Connector Vertical Smt Height 5.0mm

Vertical Smt Wire To Board Connector Wafer WTB Connector 1.5mm Pitch

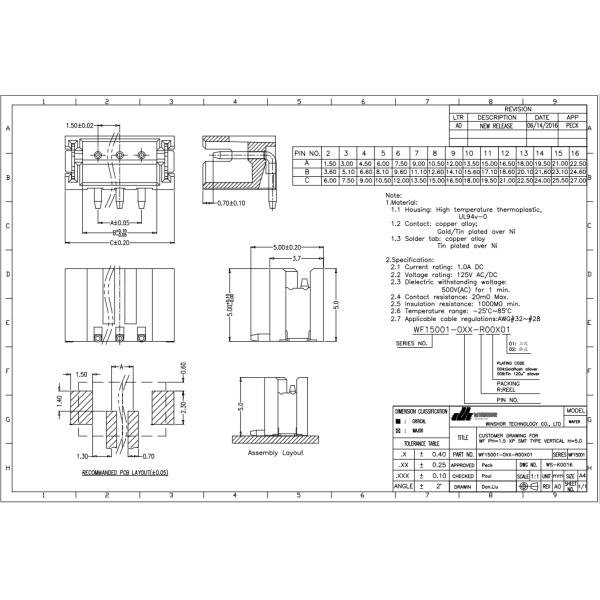

PIN NO. 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
A 1.50 3.00 4.50 6.00 7.50 9.00 10.50 12.00 13.50 15.00 16.50 18.00 19.50 21.00 22.50
B 3.60 5.10 6.60 8.10 9.60 1.10 12.60 14.10 5.60 17.10 18.60 20.10 21.60 23.10 24.60
C 6.00 7.50 9.00 10.50 12.00 13.50 15.00 16.50 18.00 19.50 21.00 22.50 24.00 25.50 27.00


Vertical Smt Wire To Board Connector Wafer WTB Connector 1.5mm Pitch
