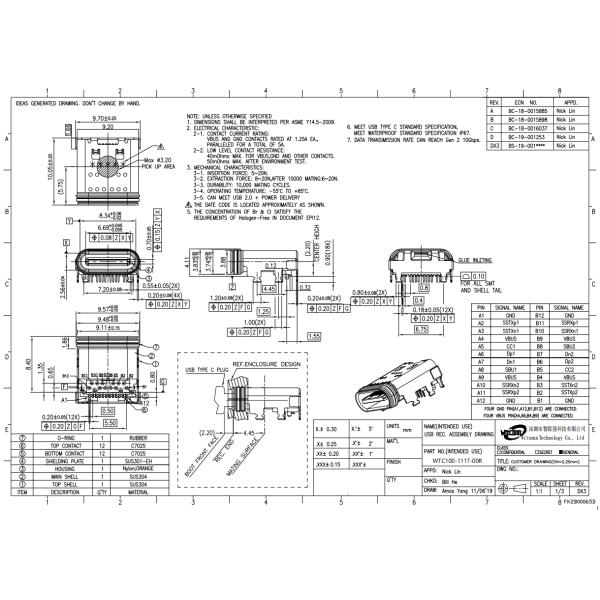

USB 3.0 24 Pins Type C Connector Vertical SMT Double SMT Length 7.45mm Water Proof IPX8

NOTE:UNLESS OTHERWISE SPECIFIED

1.DIMENSIONS SHALL BE INTERPRETED PER ASME Y14.5-2009.

2.ELECTRICAL CHARACTERISTIC:

2-1.CONTACT CURRENT RATING:

VBUS AND GND CONTACTS RATED AT 1.25A EA.,PARALLELED FOR A TOTAL OF 5A.

2-2.LOW LEVEL CONTACT RESISTANCE:

40mOhms MAX.FOR VBUS,GND AND OTHER CONTACTS.50mOhms MAX.AFTER ENVIRONMENT TEST.

3.MECHANICAL CHARACTERISTICS:

3-1.INSERTION FORCE:5~20N.

3-2.EXTRACTION FORCE:8~20N,AFTER 10000 MATING:6~20N.

3-3.DURABILITY:10,000 MATING CYCLES.

3-4.OPERATING TEMPERATURE:-55C TO +85'C.

3-5.CAN MEET USB 2.0 +POWER DELIVERY

4.THE DATE CODE IS LOCATED APPROXIMATELY AS SHOWN.

5.THE CONCENTRATION OF Br &CI SATISFY THE

REQUIREMENTS OF Halogen-Free IN DOCUMENT EPI12.

6.MEET USB TYPE C STANDARD SPECIFICATION,

MEET WATERPROOF STANDARD SPECIFICATION IP67.

7.DATA TRANSIMISSION RATE CAN REACH Gen 210Gbps.
