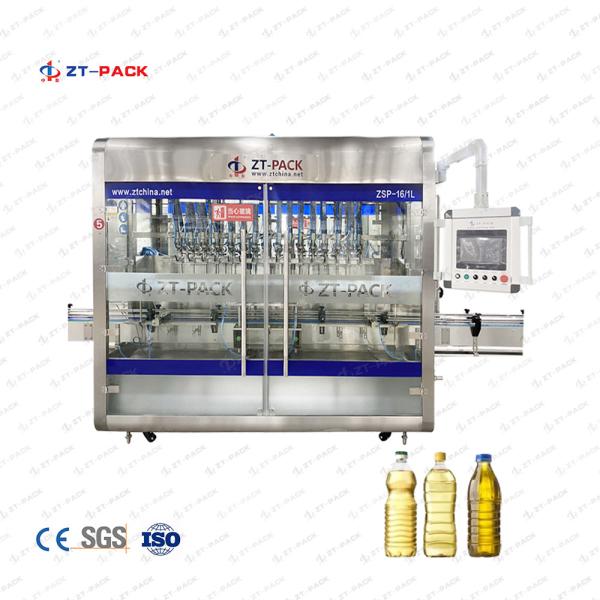

Fully Automatic 600ML 800ML Viscous Liquid Edible Oil Filling Machine

Description

Fully Automatic 600ML 800ML Viscous Liquid Edible Oil Filling Machine is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates.

Widely used in food industry(e.g.,paste filling machine, butter filling machine, jam filling machine, ketchup filling machine, honey filling machine, edible oil filling machine, sauce filling machine etc); household product industry(e.g.,shampoo filling machine, liquid soap filling machine, liquid detergent filling machine, hand wash filling machine etc), personal care industry(e.g.,cream filling machine, lotion filling machine, gel filling machine, perfume filling machine etc); Chemical industry(e.g., grease filling machine, lubricant filling machine etc); pharmaceutical industry(e.,g ointment filling machine, e liquid filling machine etc).

Automatic linear piston filler is designed for completely automatic, multiple position, inline dispensing of liquids and pastes in volume ranging from 50ml to 1000m per cycle. Available in 6, 8, 10 ,12 and 16 nozzle configurations to match specific production requirements, Dual lane option is available to increase production by 100% while preserving valuable line space.

Equipment Features:

1.The latest PTFE technology piston seals improve wear resistance, longer service life and lower maintenance costs.

2.The whole machine adopts high quality SUS304 Taigang stainless steel frame, which has good anti-corrosion effect. The outer stainless steel and tempered glass door cover seals the body, and the air outlet is reserved above the filling head (the diameter of the connecting pipe is Φ120), which can be connected with the air intake system of the factory to discharge the exhaust gas generated during the filling process to ensure the production workshop site. ,odorless.

3.The filling machine is not filled with bottle, and the bottle is automatically suspended when the bottle is not blocked. At the same time, the rear side is equipped with coordinated photoelectricity, and the downstream device realizes the linkage function.,

4. Single-row layout cylinders and fast change-over fixing method which is very easy for cylinder disassembling and the sealing parts cleaning inside. It avoids the pollution to the machine when pull out the cylinder to change the sealing parts. For this structure can really avoid the leakage when changing the sealing part. It improves the safety and protection to the operating personnel. This is our company’s exclusive patented technology.

5.Based on five years R&D experience and market feedback, we developed a three-way valve that measures for the pesticide filling. This three-way valve is with simple structure, stable performance, long working time and reliable sealing. No need to worry about the leakage that will never occur even it has been used for a long time already. Three-way valve is our company’s exclusive patented technology.

Parameters:

Details:
