Specifications
Brand Name :
zhongxin
Model Number :
yk
MOQ :
1set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
20day
Packaging Details :
wood
capacity :
10-80t/h
Application :
mining equipement
Power :
11kw
Voltage :
380v
Description

Description

circular vibration screen manufacture is a kind of multi deck vibrating screen. with circular motion is specially designed for quarry to separate crushed stone material into different sizes, and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries. circular vibration screen manufacture has a feature of advanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.

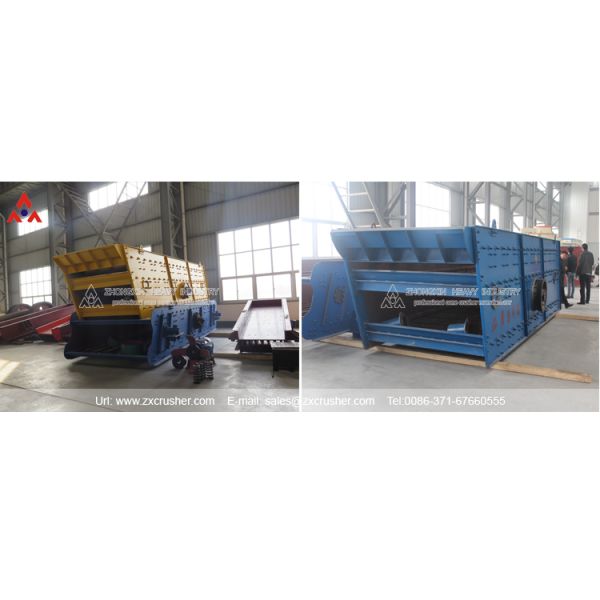

The Circular Vibrating Screen is consist of vibrator, mesh box, bearing, suspension gear, and motor. Circular Vibrating Screen is made by quality stick steel plate, which give it long lifetime for running. the Circular Vibrating Screen spring designed and made by our company are of high precision and efficiency.

Large capacity Mining Equipment Rock vibrating screens factory price with capacity 400t/h

Features

1. High vibrating force with unique eccentric structure.
2.Steady vibration, reliable operation, low noise,
3. Low energy consumption, long service life,
4.Convenient maintenance, light weight, small volume,
5. High efficiency, easy maintenance, sturdy and durable.
6.With enclosed structure fuselage, dust pollution is prevented.
7.High efficiency and little noise pollution;
8. Stable structure and strong exciting force.

Large capacity Mining Equipment Rock vibrating screens factory price with capacity 400t/h

Working principle

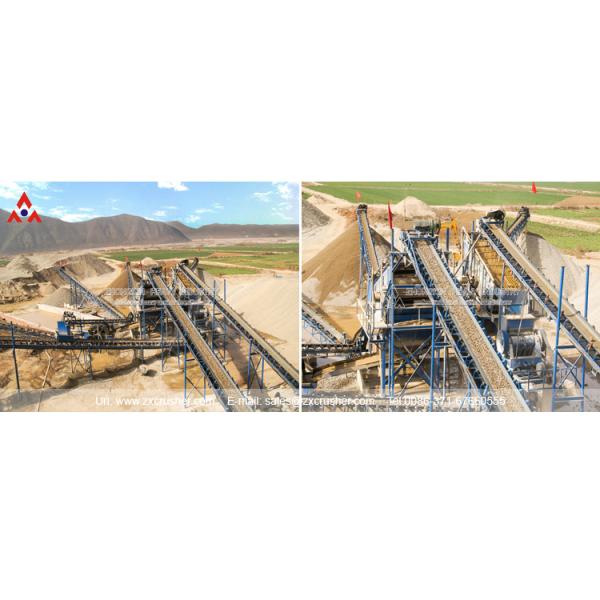

Circular Vibrating Screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the Circular Vibrating Screen's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. Circular Vibrating Screen can be used in the automatic production line.

The motor makes the exciter swing rotate speedily through the tire coupling.The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force.Under the influence of sieve box, the materiel are tossed forward successively on the mesh.They were classified as thrown up, and the particals smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.

Specifications

Model Screen Size(mm) Layers Screen Mesh (mm) Max Feed Size(mm) Capacity (t/h) Power (Kw) Vibrating Frequency(r/min) Double Swing (mm)
2YK1237 3700*1200 2 3-80 100 10-80 11 750-950 5-9
3YK1237 3700*1200 3 3-80 100 10-80 11 750-950 5-9
2YK1548 4800*1500 2 3-80 100 30-200 15 750-950 5-9
3YK1548 4800*1500 3 3-80 100 30-200 15 750-950 5-9
2YK1848 4800*1800 2 3-80 100 50-250 18.5 750-950 5-9
3YK1848 4800*1800 3 3-80 100 50-250 18.5 750-950 5-9
2YK1860 6000*1800 2 3-80 100 60-300 22 750-950 5-9
3YK1860 6000*1800 3 3-80 100 60-300 22 750-950 5-9
4YK1860 6000-1800 4 3-80 100 60-300 30 750-950 5-9
2YK2160 6000*2100 2 3-80 100 80-400 22 700-900 5-9
3YK2160 6000*2100 3 3-80 100 80-400 30 700-900 5-9
4YK2160 6000*2100 4 3-80 100 80-400 30 700-900 5-9
2YK2460 6000*2400 2 5-80 100 100-500 30 700-900 5-9
3YK2460 6000*2400 3 5-80 100 100-500 37 700-900 5-9
4YK2460 6000*2400 4 5-80 100 100-500 37 700-900 5-9

if you need, you can contact me,
my email:sales@hicrusher.com,
phone:0086-371-676660555.
whatsapp/wechat: 0086-13676922906,
our website: https://www.zxcrusher.com/products/
