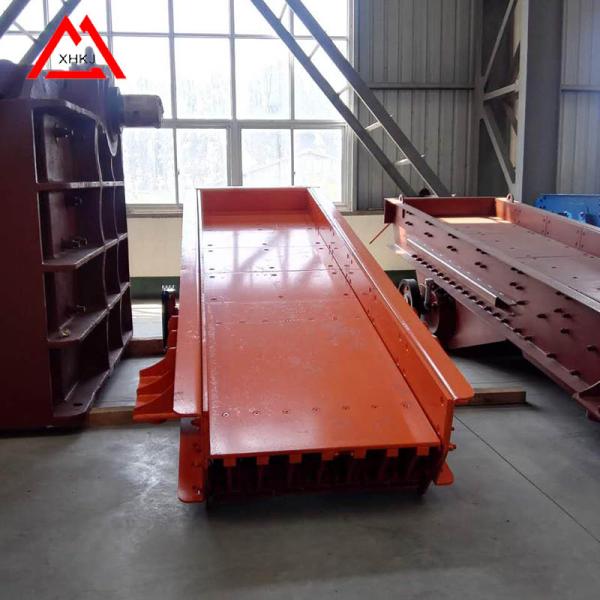

High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry
High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry
High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry
High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry
High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry
High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry
High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry
High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry
Specifications
Brand Name :
zhongxin
Model Number :
yk
Certification :
iso
Place of Origin :
henan
MOQ :
1
Price :
8999
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10
Delivery Time :
10
Packaging Details :
wood
Description

small vibrating screen description:

The circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen.It has the advantages of stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety.

The vibrating screen is mainly made up of the screening box, exciter, suspension (or supporting) device and motor, etc. The motor drives the exciter axis through the triangle belt. With the effect of the centrifugal inertia force caused by the imbalance of weight, the screening box of the round vibrating screen starts vibrating. By changing the eccentric weight, different amplitudes can be achieved.

High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry

Features

small vibrating screen Features:
Simple structure; it is easy to replace the screen;
High screening efficiency, low energy consumption;
High wear resistance, low noise
The circular vibrating screen moves on a circular motion. It is a multi-layer and high efficiency vibrating screen. It has the advantages of stable structure, strong exciting force, high efficiency, little noise pollution, handy maintenance and safety; circular vibrating screen has been widely used in mine, construction, transportation, energy and chemical industry.
Technical Superiority of Circular Vibrating Screen

High Quality Factory Stone Crushing Mini vibrating machinery small vibrating screen for Mining Industry

Specifications

small vibrating screen specifications:

Model Screen Size
(mm)		 Screen layers Mesh Size
(mm)		 Max Feeding Size
(mm)		 Capacity
(t/h)		 Motor
(kw)		 Vibrational Frequency
(r/min)		 Double amplitude
(mm)
2YK1237 3700*1200 2 3-80 100 10-80 11 750-950 5-9
3YK1237 3700*1200 3 3-80 100 10-80 11 750-950 5-9
2YK1548 4800*1500 2 3-80 100 30-200 15 750-950 5-9
3YK1548 4800*1500 3 3-80 100 30-200 15 750-950 5-9
2YK1848 4800*1800 2 3-80 100 50-250 18.5 750-950 5-9
3YK1848 4800*1800 3 3-80 100 50-250 18.5 750-950 5-9
2YK1860 6000*1800 2 3-80 100 60-300 22 750-950 5-9
3YK1860 6000*1800 3 3-80 100 60-300 22 750-950 5-9
4YK1860 6000*1800 4 3-80 100 60-300 30 750-950 5-9
2YK2160 6000*2100 2 3-80 100 80-400 22 700-900 5-9
3YK2160 6000*2100 3 3-80 100 80-400 30 700-900 5-9
4YK2160 6000*2100 4 3-80 100 80-400 30 700-900 5-9
2YK2460 6000*2400 2 5-80 100 100-500 30 700-900 5-9
3YK2460 6000*2400 3 5-80 100 100-500 37 700-900 5-9
4YK2460 6000*2400 4 5-80 100 100-500 37 700-900 5-9

Note: the processing capacity is described on the basis of data about processing mid-hard materials and the bulk density of crushed materials is 1.6t /m3
