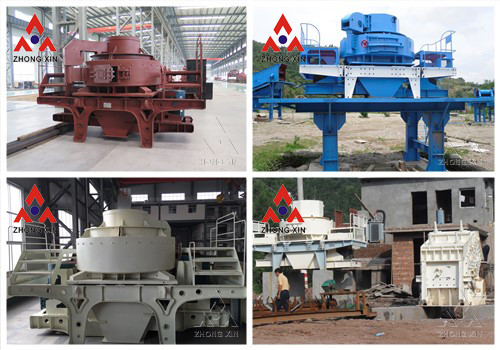

Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
Specifications
Brand Name :
jiaozuo zhongxin heavy industry
Model Number :
VSI
Place of Origin :
henanjiaozuo
MOQ :
1
Price :
89999
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10
Delivery Time :
10-20work days
Packaging Details :
Container, Bare Package, Bulk, Export Packaging Standard
Type :
M sand Crusher
application :
Aggregate shaping
Capacity :
60-450 TPH
Description

Sand Making Machine

Type:Tertiary Crusher

Capacity:60-450 TPH

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

Input Size:30mm--50mm

Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.

Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine

Product advantages

1,Vertical Shaft Impact Crusher“stone striking stone” working principle, high efficiency, low electricity consumption, and high efficiency crushing.
2,Strong ability of through the non-crushing material, low effects by the material moisture content.

3,Suitable to crush stones with mid-hardness, high hardness, and super high hardness.

Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine

Specification

Model VSI7611 VSI8518 VSI9526 VSI1140 VSI1145
Capacity (T/H) Surrounding feed and center feed 120-180 200-260 300-380 450-520 500-640
Full center feed 60-90 100-130 150-190 225-260 250-360

The max feeding size(mm)

 Soft stone 35 40 45 50 50
Hard Material 30 35 40 45 45
Speed(r/min) 1700-1890 1520-1690 1360-1510 1180-1310 1200-1390
Double motor power(kW) 110 180 264 400 440
Dimension L×W×H (MM) 3700×2150 ×2100 4140×2280 ×2425 4560×2447 ×2778 5000×2700 ×3300 5100×2790 ×3320
Weight (t) 11.8 14.5 17.8 25.6 26
Lubrication station Double oil pump motor power(kW) 2×0.55kW
Security One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return,Air cooler lowers oil temperature, heater warms up oil temperature in winter.
Over Dimension L×W×H(mm) 1200Х790Х1120
Tank heater power(kW) 2

Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine

Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making MachineZhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making MachineZhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine

Zhongxin manufacturer Sand Making Plant Vsi Crusher Sand Making Machine
