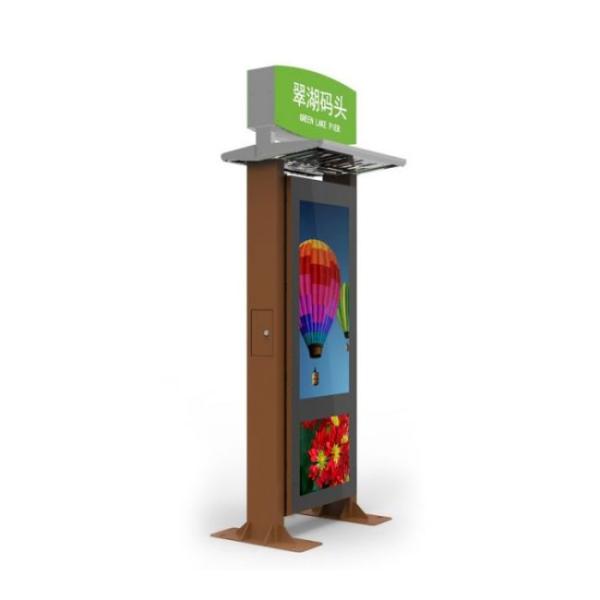

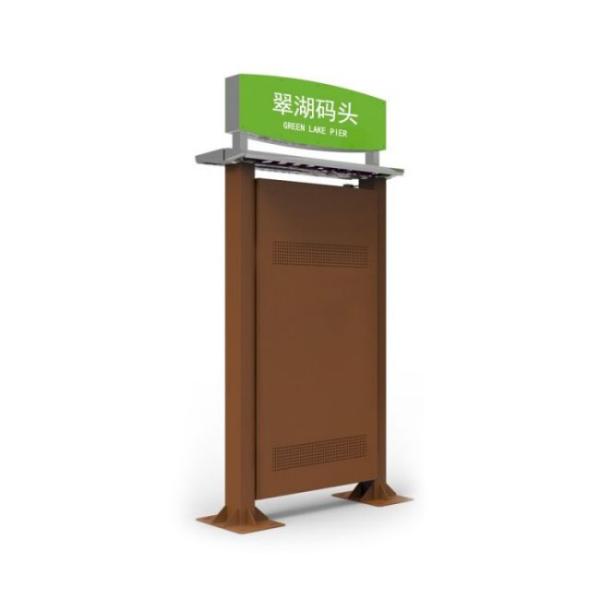

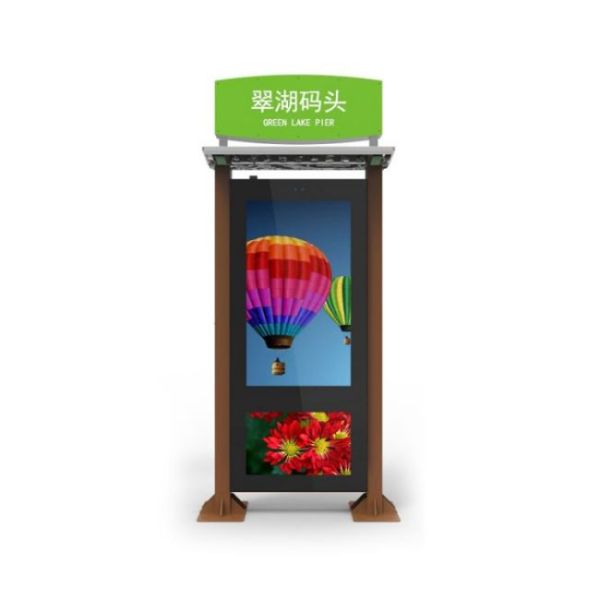

55 Inch Outdoor Lcd Kiosk Bus Station Poster Panel 4K Lcd Display Outdoor Battery Powered Digital Signage
ZXTLCD Outdoor Digital Signage in different Usage Scenario
Entertainment Places:
ZXTLCD Outdoor Digital Signage provides interactive features, such as touchscreen capabilities and customizable content, offering an engaging viewing experience. Its robust, anti-theft design ensures protection against unauthorized removal, while IP65 waterproof protection enables operation in diverse weather conditions. Customize the software and hardware to create interactive games and tailor content to specific entertainment needs.
The containment structure | The material and feature of shell | IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
LCD Panel | Screen Size | 55 inch |
Display area | 1214mm(H) X 684mm(V) | |
Aspect Ratio | 9:16 | |
LCD Type | TFT-LCD | |
Max Resolution | 1920X 1080 | |
Display color | 16.7M | |
Brightness | 1500 cd/㎡ ~ 2000cd/㎡ | |
Contrast Ratio | 4000:1 | |
Viewing angle(up/down/left/right) | 178°/178°/178°/178° | |
Response Time | 6ms | |
Field Frequency | 60Hz |
Public Spaces:
ZXTLCD Outdoor Digital Signage is built to withstand various weather conditions, with IP65 waterproof protection and an intelligent temperature control system. It ensures reliable operation in hot, cold, rainy, or thunderous environments. The anti-theft design and inner locks provide enhanced security, protecting the signage and ensuring public safety.
Buit-in Media Player | Ads updated type | USB copy by manual operation |
RAM | 2GB | |
Flash memory card | 16GB | |
Plug-and-Play | Plug-and-play /No windows OS, Auto loop play when power on | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Interface | HDMI | 1 |
USB | 2 | |
SD cassette | TF(Micro SD )card, scalable 32G | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month |
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | below 40℃ ~ + 55℃ |
Working humidity | 5% ~ 95% | |
Working Voltage | AC 100 ~240v , 50Hz | |
Max Power Consumption | 280W | |
The dimension of machine | To be determined | |
Outer Package size and Gross weight |
If you have other questions or interest in our products, please feel free to contact us.
