Specifications
Brand Name :
ZXTLCD Or Customized
Model Number :
ZXTLCD-LD215FBC
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
Guangdong, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
3-5 working days
Packaging Details :
wooden case, carton, flight case are option
Application :
Retail shop/Restaurant/Outdoor, Outdoor/Retail shop/su
Color :
Color
Panel Size :
21.5 Inch
Warranty :
1-3 years
service :
ODM or OEM
Type :
TFT
Operating system :
Windows 10 / 11 or Android 11.0 version
Network :
WIFI/LAN/4G(Optional)
Keywords :
Outdoor Digital Display / Outdoor LCD Displays
Description

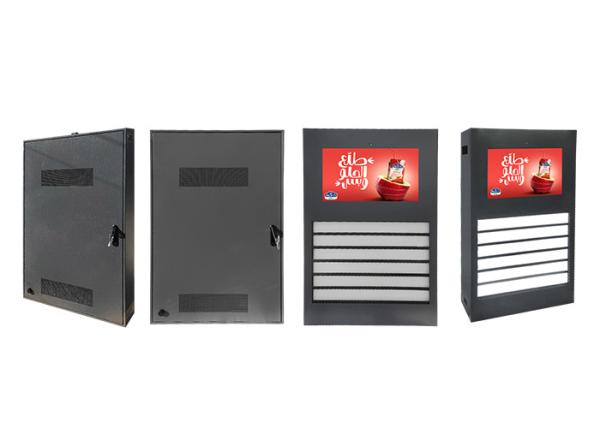

Outdoor Digital Display High Brightness Monitor Display Floor Stand

1. Product Introduction

The unique characteristic of outdoor digital signage is that it is exposed to outdoor environments, facing the scorching heat of summer, the freezing cold of winter, and the challenges of all seasons. This places demands on the heat dissipation solution for outdoor LCD digital signage. Therefore, when purchasing outdoor LCD digital signage, it is important to understand how the manufacturer addresses heat dissipation. ZXTLCD outdoor digital signage adopts an intelligent direct ventilation (forced air cooling) heat dissipation system, featuring a specialized heat dissipation design and professional centrifugal fans. It also utilizes ZXTLCD's professional air duct design, ensuring uniform ventilation, large airflow, low energy consumption, stable performance, and long service life.

The containment structure The material and feature of shell IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design.
Glass feature with 6mm Tempered explosion-proof Glass above the screen panel
LCD Panel Screen Size 21.5 inch
Display area 476mm(H) X 268mm(V)
Aspect Ratio 9:16
LCD Type TFT-LCD
Max Resolution 1080 X 1920
Display color 16.7M
Brightness 1000 cd/㎡ ~ 1500cd/㎡
Contrast Ratio 1000:1
Viewing angle(up/down/left/right) 178°/178°/178°/178°
Response Time 6ms
Field Frequency 60Hz
Buit-in Media Player Ads updated type USB copy by manual operation
RAM 2GB
Flash memory card 16GB
Plug-and-Play Plug-and-play /No windows OS, Auto loop play when power on

ZXTLCD has independently developed an intelligent temperature control system control box, which adjusts the internal and external airflow in real-time based on the internal temperature of the digital signage, enabling a dual airflow circulation system in front and behind the screen to maintain a reasonable internal temperature.

Equipped with high-temperature automatic power-off protection, when the product temperature exceeds the reasonable working range, the control system will cut off the power supply to the display and other main components, while the fan continues to operate at full speed for heat dissipation, effectively protecting the display and main components.

Media Format Video format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio format MP3, WMA
Photo format BMP, JPEG, PNG, GIF etx
Interface HDMI 1
USB 2
SD cassette TF(Micro SD )card, scalable 32G
ECU Switch power supply Industrial Power supply
Waterproof speaker High quality waterproof 10W speaker
Thunder Preventer The tree-level lightning protection
Leakage protective device Defend Electricity Leakage
Timer Set up on/off time on day/week/month
Built-in Fan for Ventilation Intelligent Straight ventilation Cooling system Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically
Environment Working temperature below 40℃ ~ + 55℃
Working humidity 5% ~ 95%
Working Voltage AC 100 ~240v , 50Hz
Max Power Consumption 280W
The dimension of machine To be determined
Outer Package size and Gross weight

2. More Details

TFT Outdoor Digital Display High Brightness Floor Stand LCD Displays

TFT Outdoor Digital Display High Brightness Floor Stand LCD Displays

TFT Outdoor Digital Display High Brightness Floor Stand LCD Displays

TFT Outdoor Digital Display High Brightness Floor Stand LCD Displays

TFT Outdoor Digital Display High Brightness Floor Stand LCD Displays

TFT Outdoor Digital Display High Brightness Floor Stand LCD Displays

TFT Outdoor Digital Display High Brightness Floor Stand LCD Displays

If you are interested in the product or have other questions, please feel free to contact us Via WhatsApp.
