Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator
Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator
Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator
Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator
Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator
Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator
Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator
Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator
Specifications
Brand Name :
ZXTLCD
Model Number :
LD290EJS-FPN1
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
Korea
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
300pcs per month
Delivery Time :
3 working days
Packaging Details :
Machine body appearance wrapped in pearl carton firstly, packedin wooden box
Display type :
29" TFT-LCD (IPS), edge LED Back-light
Touch type :
in-TOUCH (P-Cap in-cell Touch)
OS :
Android 7.1.2
CPU :
ARMⓇCortex™-A17 , Quad-core, 1.6GHz
RAM :
DDR3 1GByte
Storage :
EMMC 8GByte
Resolution :
1920x540
Active Area :
698.4 x 196.43mm
Panel surface :
Anti-Glare, 4H
Interface :
USB Type C (Power Only)
Description

Original LG 29 inch stretched bar lcd touch screen Ultra Wide monitor for Elevator

  • 29” Full Screen in-TOUCH Display
  • 500nit High Brightness
  • Android based platform
  • Slim and Light

Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator

Product Features :

①1st In-cell Touch : 29” in-TOUCH product is World’s 1st TOUCH driven by in cell TOUCH. It will provide your customers with new Experience.

②More Buttons but less space : Higher building needs More button space. in-Touch LCD is button-less and space-free.

③More Contents : Large/full color TOUCH provides people in elevator useful information and more.

④Internet of things : in-TOUCH is big step toward building IOT and Digital Transformation.

Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator

Specification(Model No : LD290EJS-FPN1)

System
OS Android 7.1.2
CPU ARMⓇCortex™-A17 , Quad-core, 1.6GHz
GPU ARM Mali-T764 500MHz
RAM DDR3 1GByte
Storage EMMC 8GByte
Network WLAN 802.11 b/g/n (2.4GHz)
Bluetooth BT 4.2 (Profile : A2DP, HID)
Connectivity Micro USB 2.0 (Host 1ea, OTG 1ea)
Signal Output Micro HDMI
Display
Display type 29” TFT-LCD (IPS), edge LED Back-light
Touch in-TOUCH (P-Cap in-cell Touch)
Active Area 698.4 x 196.43mm
Resolution 1920 x 540
Display Colors 16.7 Million colors
Luminance, White 500cd/m2 (Typ.)
Viewing Angle (CR>10) Viewing angle free( R/L 178 (Min.), U/D 178 (Min.)
Bezel (mm, L/R/U/D) 7.2/7.2/7.7/9.6mm
Life time(LED Backlight) 50,000hrs
Panel surface Anti-Glare, 4H
Accuracy (Φ8) ≤ 3.0mm (max)
Latency (Φ8) ≤ 45ms (Touch down), ≤ 35ms (Panning)
Multi Touch ≤ 10 points
Mechanical
Outline Dimension 712.8 (H) x 213.44 (V) x 16.0mm(D)
Weight 2.80Kg (Typ.)
Possible Display Type Landscape / Portrait
Packing Dimension 850 x 260 x 50mm (L x W x H)
Cabinet Color Black
Power supply
Input Power Frequency AC100-240V@50/60Hz
Output Voltage 12V
Output Current 3A
Output Power Connector to ISS product USB Type C (Power Only)
Video Codec
Image Decoder JPEG, BMP, GIF, PNG
Encoder JPEG
Video Decoder MPEG-1/2, MVC, GOOGLE VP8,H.263, MOTION JPEG
Encoder VP8
Audio Decoder MPEG Audio, WAV Audio, OGG, Audio, FLAC Audio, MIDI Audio
Encoder AMR Audio
Environment
Operation Temperature 0°C~45°C
Operation Humidity 10~80%RH
Storage Temperature -20°C~60°C
Warranty 18 month

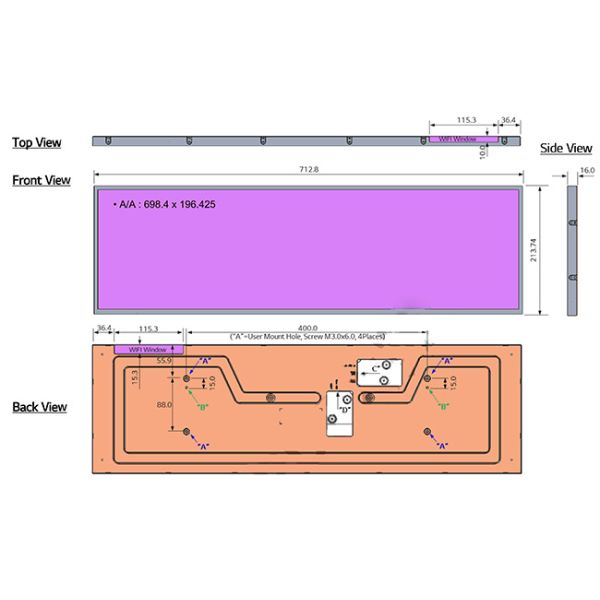

The design drawing as follows :

Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator

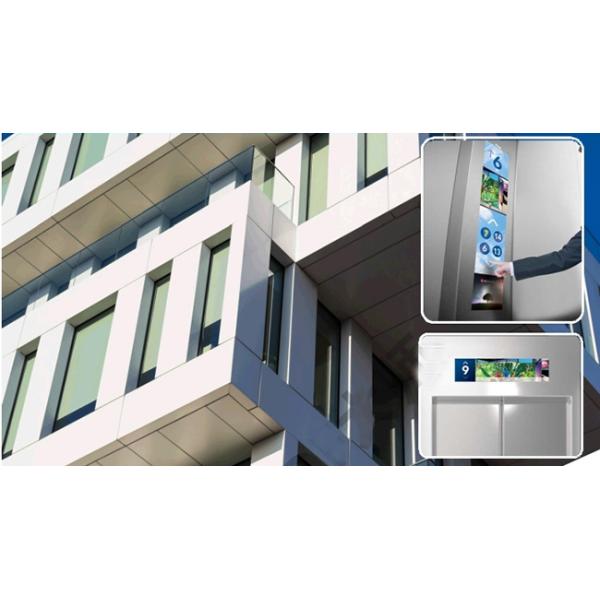

Application :

Original LG 29in Stretched Lcd Touch Screen Ultra Wide Monitor For Elevator

If you would like to discuss your requirement or need any additional information on our Ultra-wide stretched bar Lcd display then please do not hesitate to contact our sales team.
