Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-OTP220B
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
2,000 pcs per month
Delivery Time :
25-30 workdays
Packaging Details :
wooden case, carton, flight case are option
Product name :
Outdoor double screens touch all in one PC kiosk
Size :
22 Inch
Type :
Floor Stand double screens
Waterproof :
IP65
Touch Screen :
Nano touch foil
Brightness :
1000nits
Description

22 Inch Floor Stand Outdoor Double Screens LCD Waterproof Touch Screen Monitor All In One PC Kiosk


5 Major Application Advantages of ZXTLCD Outdoor Digital Signage or Outdoor Digital Signage:

High-Brightness LCD Screen: Equipped with industrial-grade high-brightness LCD screens that meet the requirements of outdoor HD, high brightness, waterproof, and dustproof. The brightness ranges from 1500 to 2500 cd/m², ensuring clear display even in bright light. The images are vibrant and lifelike.

The containment structure The material and feature of shell IP65 outdoor cabinet, 1.5mm zinc coated steel, waterproof and anti-dust design.
Glass feature with 6mm Tempered explosion-proof Glass above the screen panel
LCD Panel Screen Size 22 inch
Display area 472mm(H) X 294mm(V)
Aspect Ratio 9:16
LCD Type TFT-LCD
Max Resolution 1080 X 1920
Display color 16.7M
Brightness 1000 cd/㎡ ~ 1500cd/㎡
Contrast Ratio 1000:1
Viewing angle(up/down/left/right) 178°/178°/178°/178°
Response Time 6ms
Field Frequency 60Hz

Wireless Network Transmission: Outdoor Digital Signage eliminates the need for wiring in outdoor plazas. With 4G wireless network capability, content updates and control can be done quickly and easily. It offers simple and secure usage.

Outdoor Heat Dissipation: Outdoor Digital Signage needs to withstand temperature variations throughout the seasons. Current solutions involve installing air conditioning or centrifugal fans to ensure long-term operation at a constant temperature.

Buit-in Media Player Ads updated type USB copy by manual operation
RAM 2GB
Flash memory card 16GB
Plug-and-Play Plug-and-play /No windows OS, Auto loop play when power on
Media Format Video format wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio format MP3, WMA
Photo format BMP, JPEG, PNG, GIF etx
Interface HDMI 1
USB 2
SD cassette TF(Micro SD )card, scalable 32G
ECU Switch power supply Industrial Power supply
Waterproof speaker High quality waterproof 10W speaker
Thunder Preventer The tree-level lightning protection
Leakage protective device Defend Electricity Leakage
Timer Set up on/off time on day/week/month

Structural Design: Outdoor Digital Signage meets the IP65 protection level requirement, ensuring a professional heat dissipation channel, convenient maintenance, and a sturdy anti-theft structure. It is designed to withstand outdoor conditions, including lightning, strong winds, corrosion, and explosion prevention.

Multiple Forms of Content Playback: Unlike traditional printed media with one-time advertisements, Outdoor Digital Signage supports various forms of content playback, including videos, music, images, documents, and more.

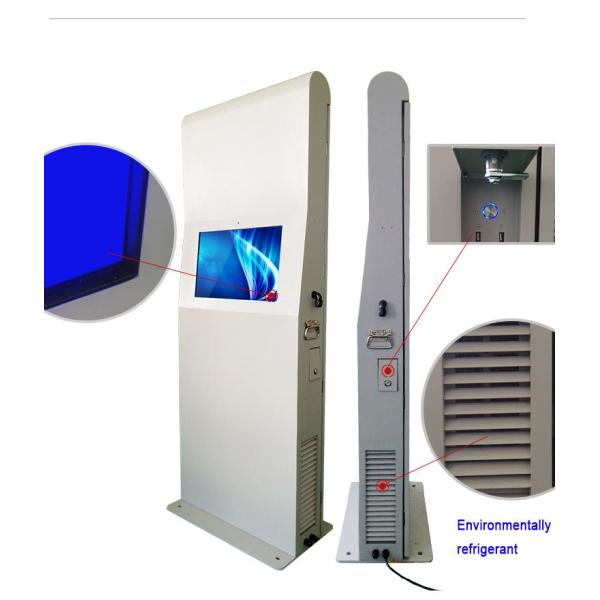

Built-in Fan for Ventilation Intelligent Straight ventilation Cooling system Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically
Environment Working temperature below 40℃ ~ + 55℃
Working humidity 5% ~ 95%
Working Voltage AC 100 ~240v , 50Hz
Max Power Consumption 280W
The dimension of machine To be determined
Outer Package size and Gross weight


Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising ScreensNano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising ScreensNano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
high brightness : 1000 nits
Built-in High Quality speakers Stereo 2pcs x 5W.

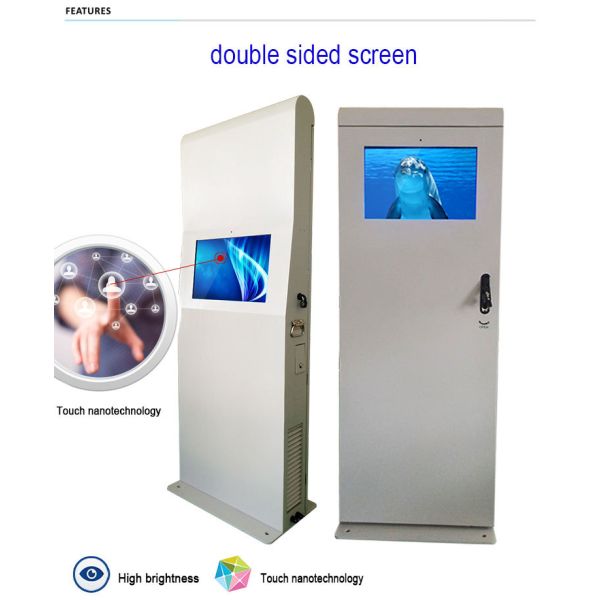

The machine is designed to have two screens.
The front screen is deviced with
Built-in Nanotechnology Ultra Thin Highly Responsive Multi-Touch PC; The back side is a monitor of 22''
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens

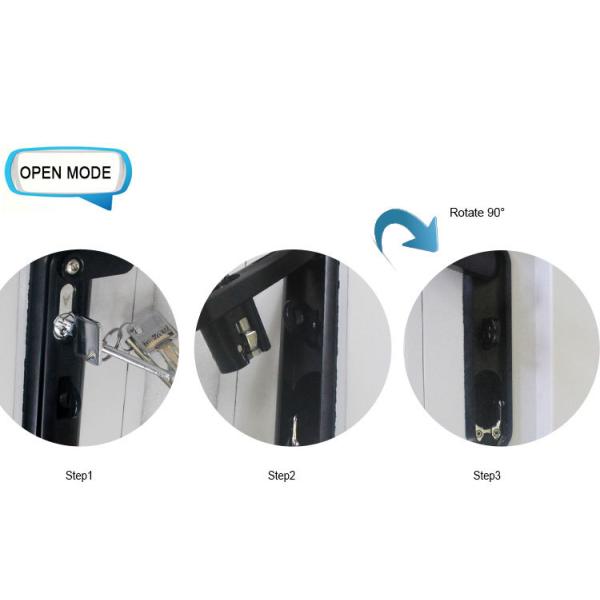

Locking system for anti-thieves, prevented the storage devices from being broken or distorted.

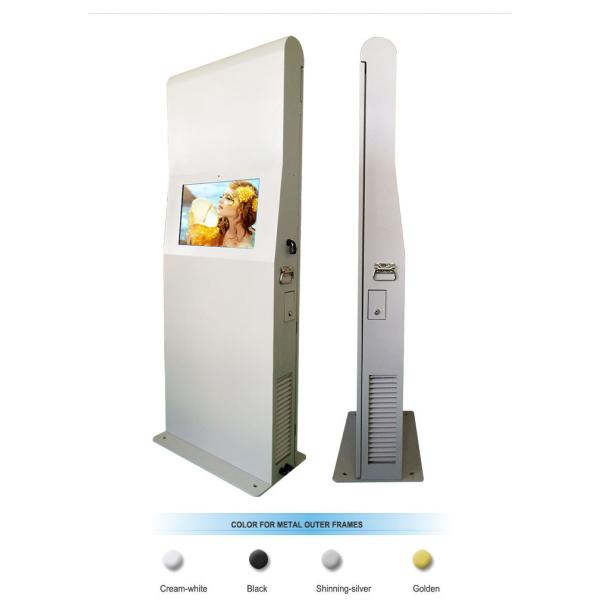

Outer shell is made of extra good quality metal material,
which is painted by powder-spray craft work.which makes the machine is wind
,thunder,water,dust proof .And the proof level is IP65.
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
Locking system for anti-thieves, prevented the storage devices from being broken or distorted.
Outer shell is made of extra good quality metal material,
which is painted by powder-spray craft work.which makes the machine is wind
,thunder,water,dust proof .And the proof level is IP65.
Nano Touch Foil Outdoor Touch Screen Kiosk 22 Inch Digital Advertising Screens
