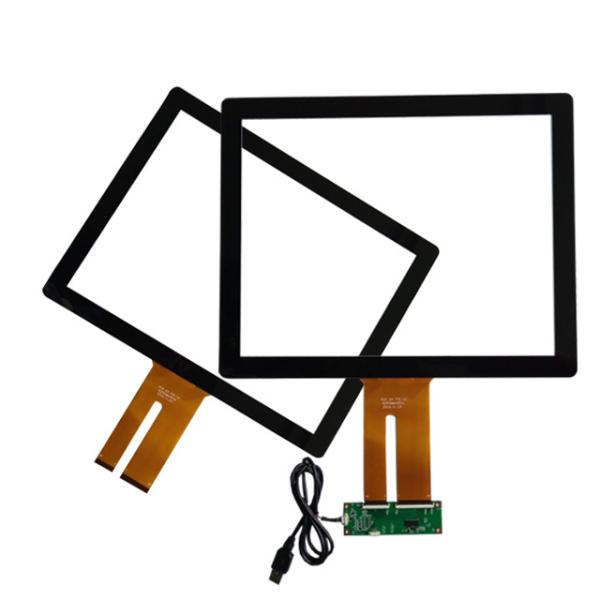

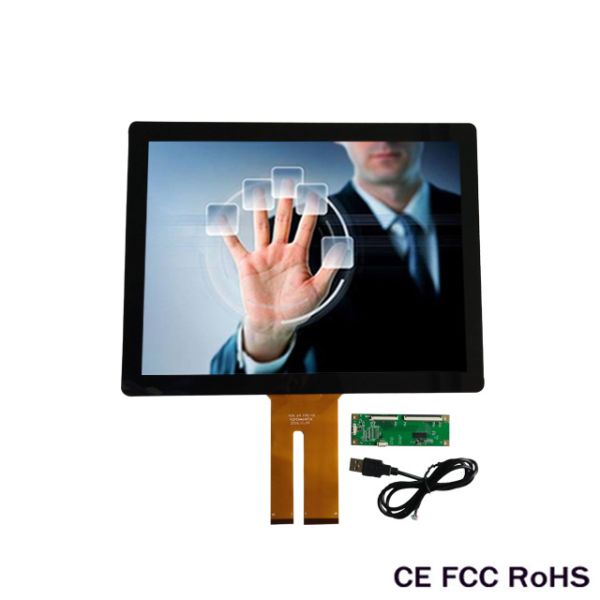

IPS Capacitive 10 Points Multi Touch Screen 17 Inch Fast Response For Payment Kiosk
IPS Capacitive 10 Points Multi Touch Screen 17 Inch Fast Response For Payment Kiosk
IPS Capacitive 10 Points Multi Touch Screen 17 Inch Fast Response For Payment Kiosk
IPS Capacitive 10 Points Multi Touch Screen 17 Inch Fast Response For Payment Kiosk
Specifications
Brand Name :
ZXTLCD
Model Number :
ZXT-D17-10B
Certification :
CE/Rohs/FCC/ERP Energy Label
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiate
Payment Terms :
T/T,Western Union, Alibaba trade assurance
Supply Ability :
5,000 pcs per month
Delivery Time :
3-7 working days
Packaging Details :
wooden case, carton, flight case are option
Size :
17''
Touch Technology :
Projected capacitive
Touch Points :
10 Points
Application :
Payment kiosk..etc

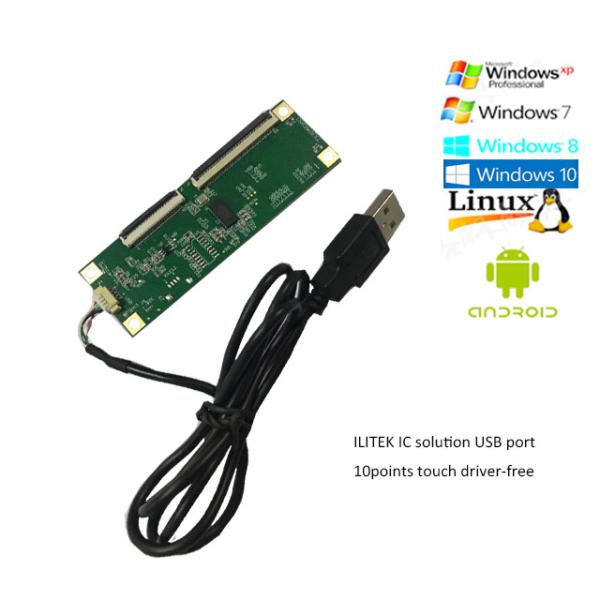

Touch controller :
EETI Touch Controller
Structure :
Glass+glass
Description

17 Inch Touch Screen Ips Capacitive 10 Points Multi-Touch Screen Projective Capacitive Touch Sensor Payment Kiosk

Projected Capactive touch screen Description:

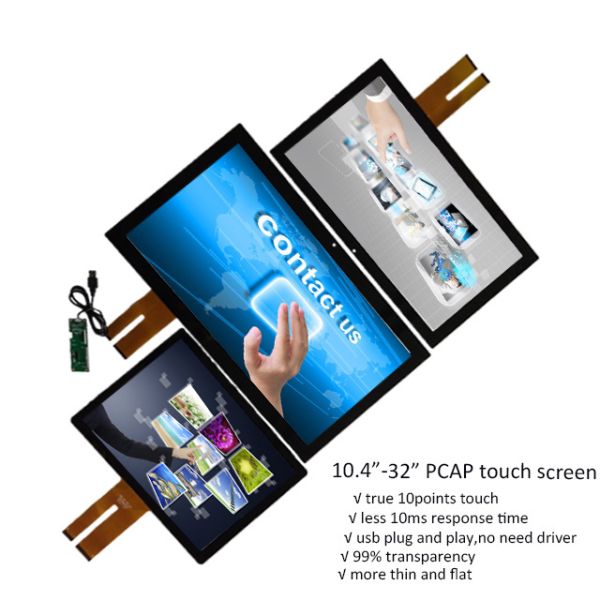

ZXT now developed multi-point capacitive touch screen, mainly in G+G structure based,

covering the 10.4" to 32" (customizable), supports 10points touch, slide, flip, etc. function. real touch points to support handwriting, pen function, the focus for Touch monitor, Educational, medical, Computer machine, Tablet, Kiosk,POS machine,Singsmart,Automotive and other industrial applications.

IPS Capacitive 10 Points Multi Touch Screen 17 Inch Fast Response For Payment Kiosk

Specification:

Size Ratio Frame Size Viewable Area Sensor Size Active Area Cover Thickness (mm)
(Inch) WxH(mm) WxH(mm) WxH(mm) WxH(mm)
15 4:3 346.08*270.02 305.00*229.01 323.10*251.79 307.10*231.07 1.1
15.6 16:9 387.00*231.00 344.00*194.00 362.00*222.00 346.00*196.00 1.1
17 4:3 377.00*309.00 338.92*271.34 363.92*301.34 340.92*273.34 1.1
18.5 16:9 440.80*271.40 410.80*231.40 430.80*261.40 412.80*233.40 1.1
19 4:3 421.00*346.00 377.32*302.06 402.36*334.06 379.32*304.06 1.1
21.5 16:9 524.00*321.80 478.00*269.80 508.00*303.80 480.00*271.80 1.8
23.6 16:9 555.50*343.00 525.50*297.00 545.50*333.00 527.50*299.00 1.8
27 16:9 658.00*416.00 598.00*336.00 640.00*390.00 600.00*338.00 1.8
32 16:9 765.00*466.50 698.70*393.30 750.00*450.00 704.00*396.00 1.8

Capacitive touch screen
> Can withstand more than 50000000 point
> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!
IPS Capacitive 10 Points Multi Touch Screen 17 Inch Fast Response For Payment Kiosk

Condition Requirements

Environmental Operation Temperature -20℃ ~ 70℃
Storage Temperature -30℃ ~ 80℃
Reliability Constant Temperature/Humidity 70℃/90RH/240hrs
Heat Cycle 70℃/240hrs
Cold Cycle -30℃/240hrs
Thermal Cycle -30℃ ~ 80℃*50Cycle
Mechanical Connection Tail FPC Material
Surface Hardness ≥6H
Active Force ≤10g Finger
Structure Glass+Glass
Optical Transparency ≥85%±5%(Measured by BYK-Gardner)

IPS Capacitive 10 Points Multi Touch Screen 17 Inch Fast Response For Payment Kiosk

Advantage:

-Capacitive touch technology.

-Highest resolution, sensitive and fast response

-Easy to install with LCD monitor

-Dustproof and Waterproof maintenance free.

-Touch screens can be built in specific dimensions requested by clients in custom orders

-Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.

Application:

-Point-of-information kiosks

-Vending and ticket sales

-Electronic catalogs

-Gaming, lottery, and amusement

-Public pay phones

-Multimedia marketing

-Banking/financial transactions

-Industrial control rooms

-Computer-based training

IPS Capacitive 10 Points Multi Touch Screen 17 Inch Fast Response For Payment Kiosk
